ROOMS TO GO PULA drew & jonathan 3380-260 Assembly Instruction

drew &
TM
jonathan
*** Caution: Please read all instructions carefully before starting the assembly process. These parts are cumbersome and heavy
Therefore, two people are recommended in order to prevent personal injury and ensure the parts are not damaged during the assembly
*** Remark: DO NOT fully tighten all bolts until assembly is completed.
Code
A Chair back
B
Seat frame
Front leg (left)
C
D Front leg (right)
Side Stretcher (left)
E
Side Stretcher (right)
F

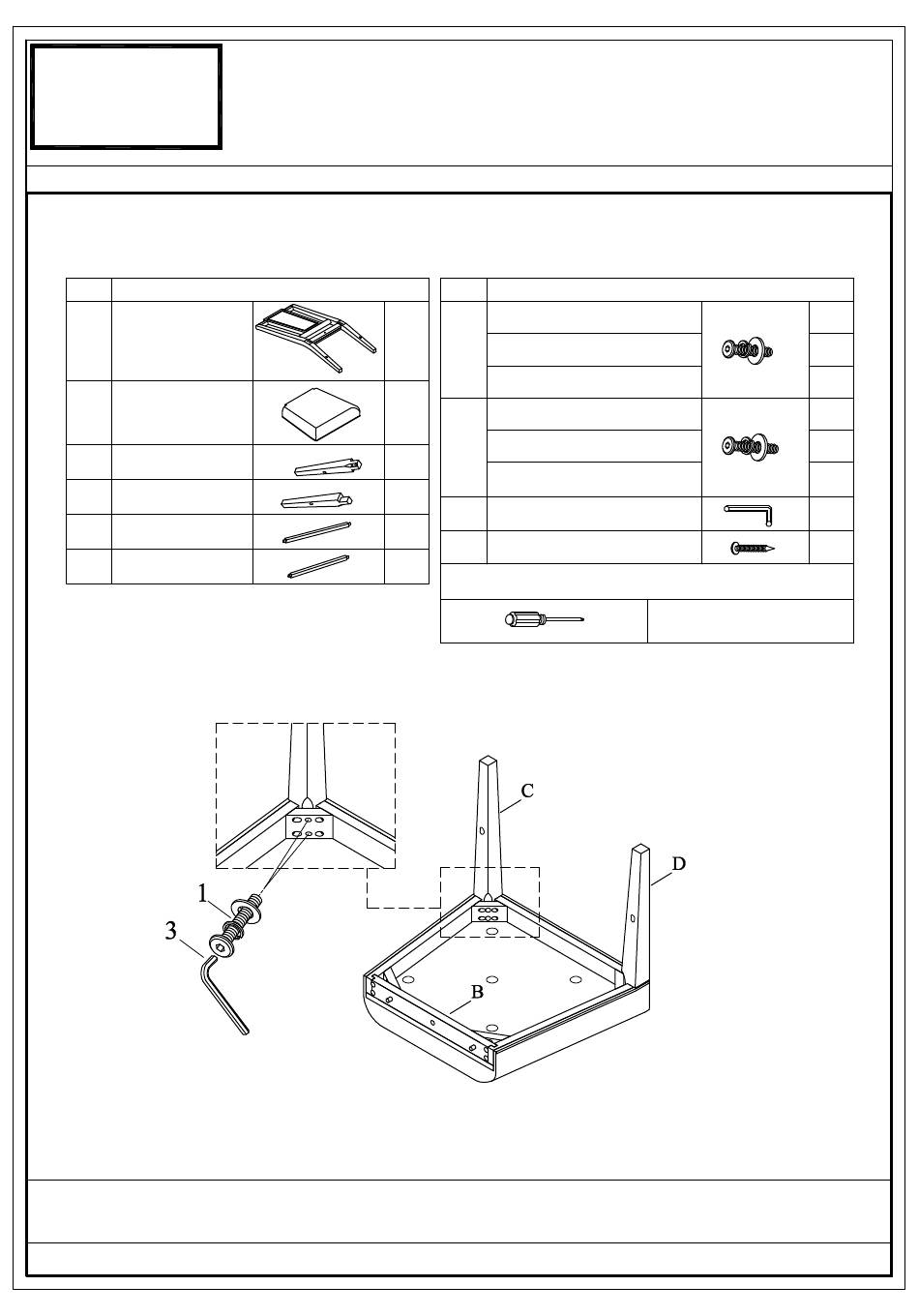

STEP 1
MADE IN VIET NAM
ASSEMBLY INSTRUCTION

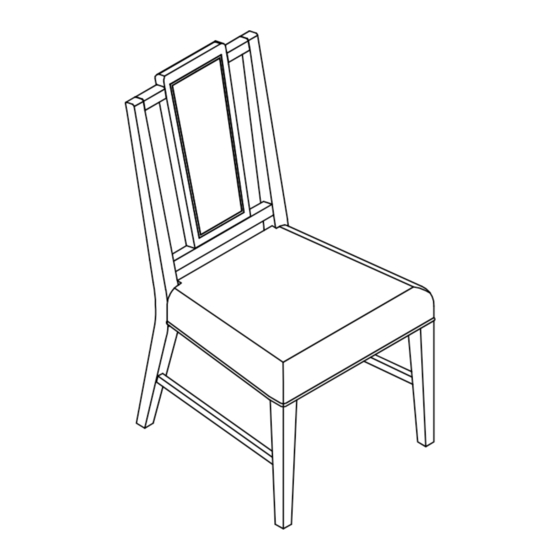

PULA: 3380-260 Wood Back Side Chair
This product is manufactured by PULA for Rooms To Go
PARTS LIST :
Residential Use Only
Code
∅ 5/16" x 19*2mm Flat Washer
1Pc
∅ 5/16" Spring Washer
1
∅ 5/16'' x 18 x
∅ 1/4" x 19*2mm Flat Washer
1Pc
∅ 1/4" Spring Washer
2
1Pc
∅ 1/4'' x 20 x 1-1/2" Allen Head Bolt
1Pc
4mm Allen Key
3
1Pc
# 8 x 1-1/4" Screw
4
1Pc
Tool Required (not provided)
Hardware Pack Location (s):
3380-260 Wood Back Side Chair , SKU: 42433805
SKU: 42433805
HARDWARE LIST
3" Allen Head Bolt
Phillip Screwdriver
8Pcs
8Pcs
8Pcs
1Pcs
1Pcs
1Pcs
1Pc
4Pcs
1 of 2
