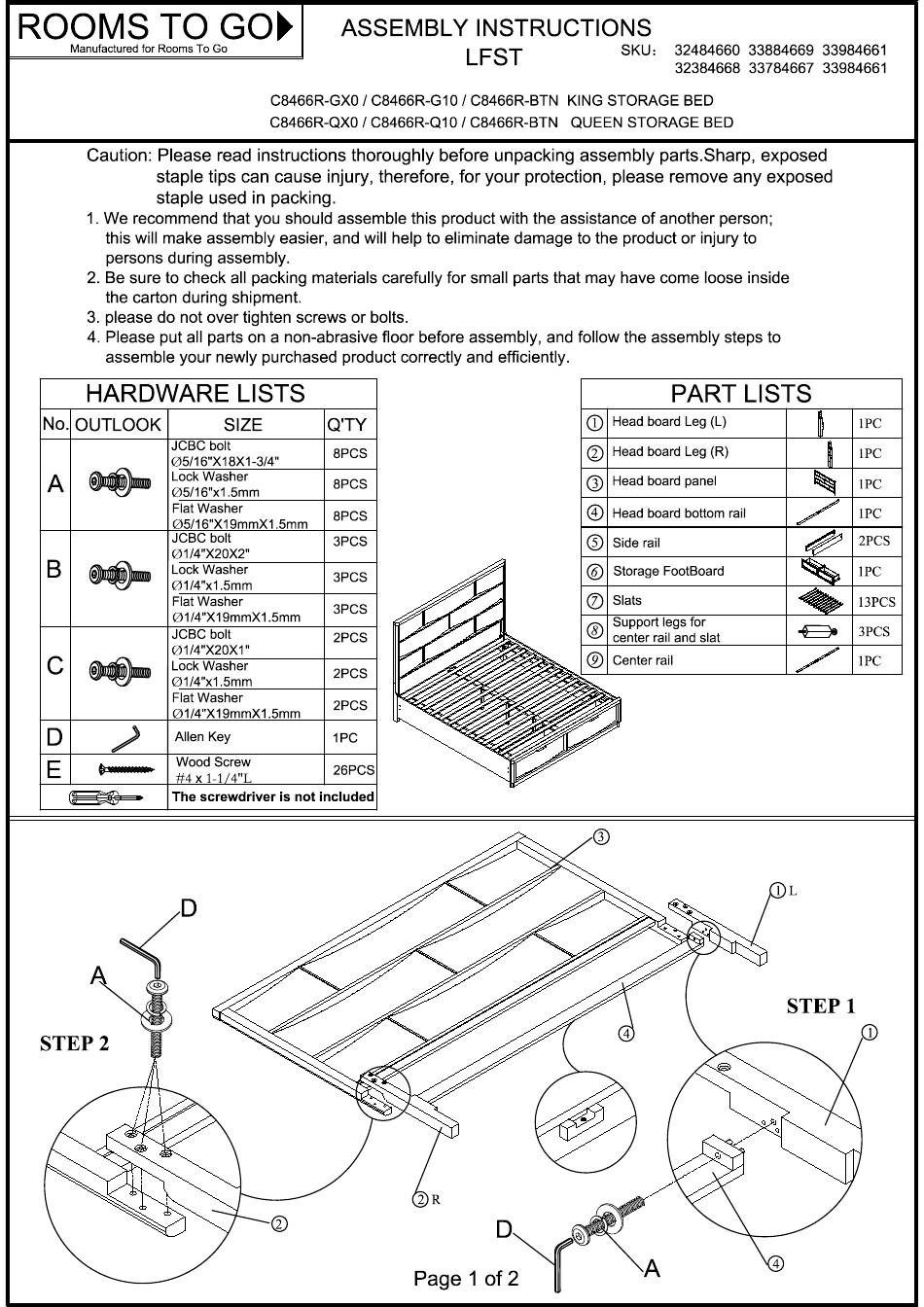

ROOMS TO GO C8466R-GX0 Assembly Instruction

Caution: Please read instructions thoroughly before unpacking assembly parts.Sharp, exposed
staple tips can cause injury, therefore, for your protection, please remove any exposed
staple used in packing.
1. We recommend that you should assemble this product with the assistance of another person;
this will make assembly easier, and will help to eliminate damage to the product or injury to
persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside
the carton during shipment.
3. please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to
assemble your newly purchased product correctly and efficiently.
1
2
1PC
4
2PCS
3
1PC
1PC
Head board Leg (L)
Head board panel
Head board bottom rail
Side rail
Storage FootBoard
5
Slats
3PCS
1PC
6
7
PART LISTS
13PCS
JCBC bolt
Ø
5/16"X18X 1-3/4"
8PCS
Lock Washer
Ø
5/16" x1.5mm
8PCS
Flat Washer
Ø
5/16"X19mmX1 .5mm
8PCS
HARDWARE LISTS
No.
A
OUTLOOK SIZE Q'TY
1PC
Allen Key
26PCS
Wood Screw
#4
x
1-1/4"L
D
E
8
1PC
Page 1 of 2
Support legs for
center rail and slat
ROOMS TO GO
ASSEMBLY INSTRUCTIONS
Center rail
LFST
Manufactured for Rooms To Go
STEP 1
STEP 2
JCBC bolt
Ø
1/4"X20X1"
2PCS
Lock Washer
Ø
1/4"x1.5mm
2PCS
Flat Washer
Ø
1/4"X19mmX1 . 5mm
2PCS
B
JCBC bolt
Ø
1/4"X20X2"
3PCS
Lock Washer
Ø
1/4"x1.5mm
3PCS
Flat Washer
Ø
1/4"X19mmX1 . 5mm
3PCS
C
1 L
3
4
2 R
1
4
A
A
D
D
2
32384668 33784667 33984661
C8466R-QX0 / C8466R-Q10 / C8466R-BTN QUEEN STORAGE BED
SKU
：
32484660 33884669 33984661

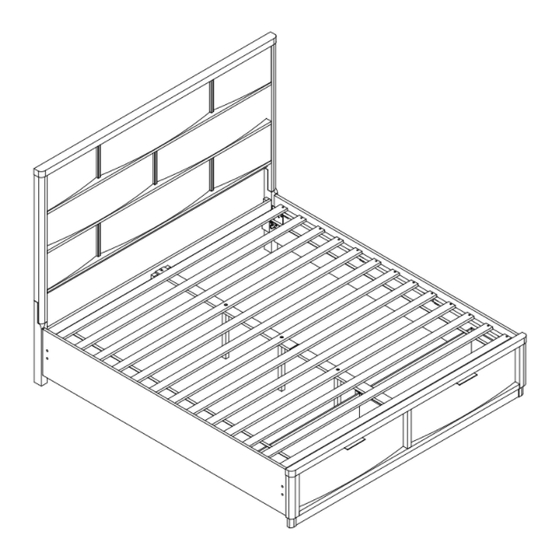

C8466R-GX0 / C8466R-G10 / C8466R-BTN KING STORAGE BED
1PC
Head board Leg ( R)
9
The screwdriver is not included
