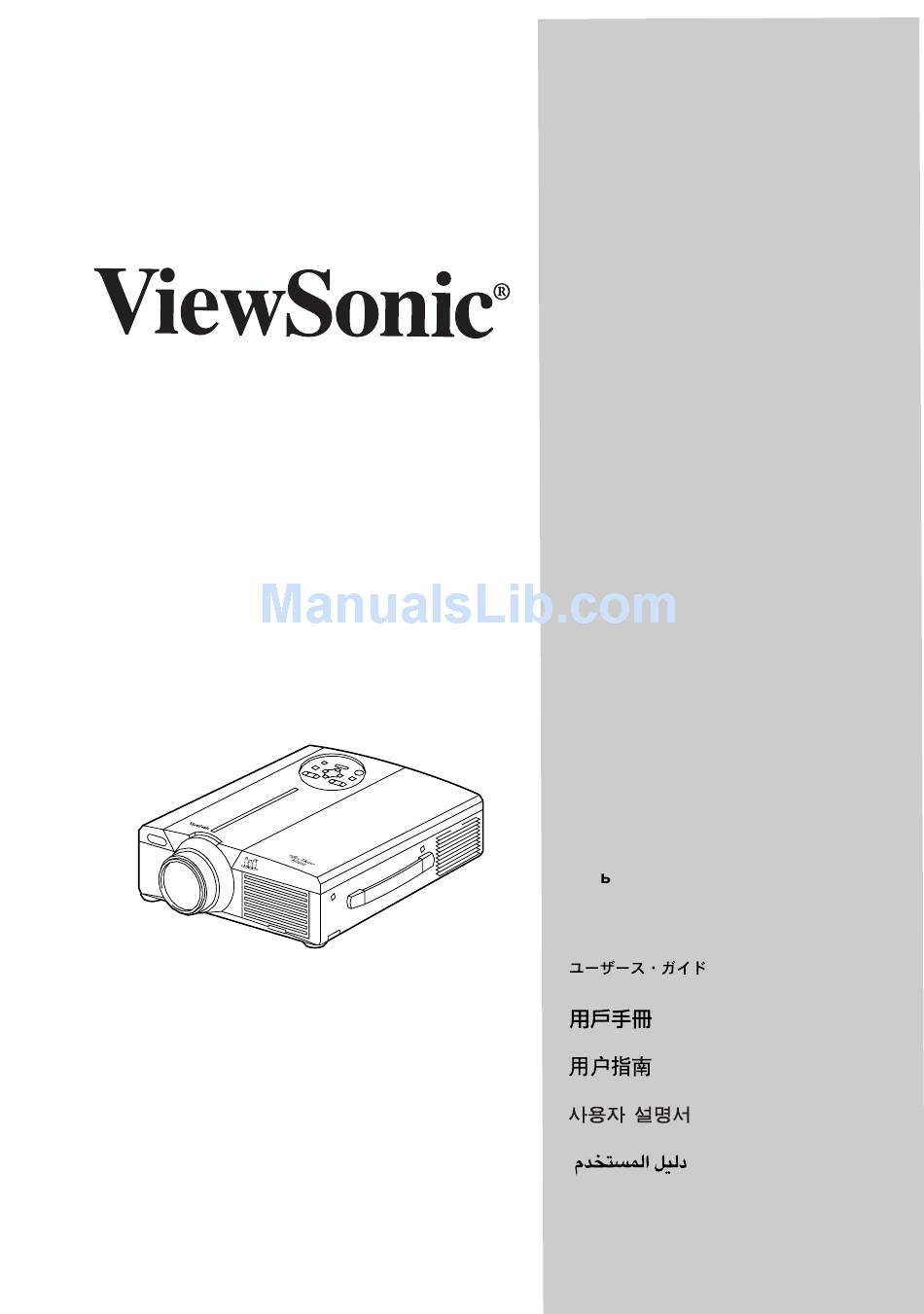

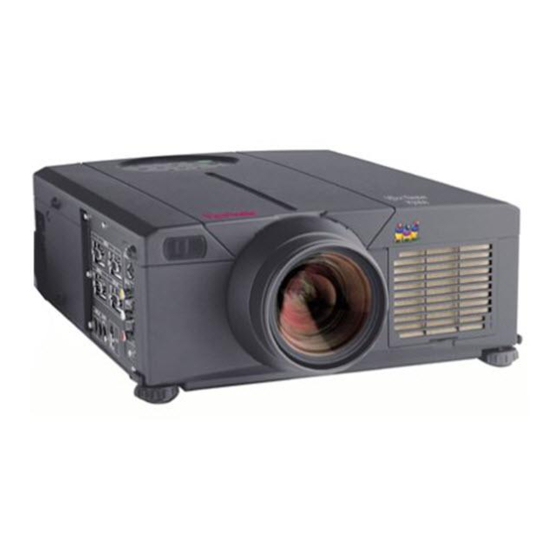

- Page 1 PJ1060 Office Theater User’s Guide Guide de l’utilisateur Bedienungsanleitung Manual de Instrucciones Guida utente Guia do usuário Användarhandbok Руководство для пол зователя Informator użytkownika 31" to 300" (Viewable) Super Bright XGA LCD Projector...
-
Page 2: For Your Records
Microsoft, Windows, Windows NT, and the Windows Logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic and the three birds logos, and OnView are registered trademarks of ViewSonic Corporation. Office Theater is a trademark of ViewSonic Corporation. -
Page 3: Fcc Information
Do not damage the power cord by pulling, bending, heating, or placing heavy objects on it. Caution Following these instructions could prevent personal injury or damage to the projector. To prevent damage from heat build-up: • Clean the air filter after every 100 hours of operation. -
Page 4: Table Of Contents
Warranty ......... . 17 ViewSonic PJ1060... -
Page 5: Getting Started
Getting Started Congratulations on purchasing a ViewSonic PJ1060 Office Theater Save the original box and all packing material for future shipping needs. Package Contents • ViewSonic PJ1060 Office Theater • Remote Control Unit/Mouse & Laser Pointer • 2 AA batteries •... -
Page 6: Connecting Input/Output Devices
S-VIDEO IN VIDEO IN RGB OUT AUDIO IN MONO USB input port (Upstream) The mouse cursor can be controlled by connecting the PJ1060 projector to a computer. PJ1060 Projector RGB IN S-VIDEO IN VIDEO IN CONTROL RGB OUT AUDIO IN... -
Page 7: Operation
FOCUS button. Positioning the Projector The projector must be horizontal to get a distortion-free picture. Place the projector on a table-top or other flat surface. Use the chart below to determine the placement of the projection screen. -
Page 8: Controls And Indicators
(white, blue, becomes lit when or black). See page 10. temperature inside projector is too high Remote control sensor (rear) Lens Lens cap Cooling fan (intake) ViewSonic PJ1060 Remote Control Unit VIDEO LASER STANDBY/ON POSITION RGB1 RGB2 VIDEO RESET MENU... -
Page 9: Adjusting The Projected Image
8-10.) Select the menu.To select one of the four menus, press the left or right MENU buttons on the Projector Control Panel or the DISK PAD on the Remote Control Unit. The name of the selected menu is highlighted in green. -
Page 10: Set Up Menu
• May cause parts of the projected image to be slightly dark in some cases • Can not execute when the FREEZE or MAGNIFY function is in use, or when the initial on-screen message is "NO INPUT IS DETECTED" or "SYNC IS OUT OF RANGE." ViewSonic PJ1060 < > <... -
Page 11: Input Menu
VIDEO source. To switch to the RGB (computer) audio source, push one of the Volume buttons. No picture is displayed when either no signal is detected t i s or when the signal is out of the signal range. ViewSonic PJ1060... -
Page 12: Option Menu
The OPT. Menu allows you to adjust the Communication Function* (COM. SPEED and COM. BITS), enabling you to control the projector from a computer. The OPT. Menu also allows you to set the TIMER, select the LANGUAGE for all on-screen displays, activate AUTO OFF and START UP. -
Page 13: Technical Information
"Stand By" Amber Brightness may vary with lamp age and environmental conditions. Macintosh computers require a Macintosh adaptor (supplied with the PJ1060 projector). All products and trademarks are brand names of their respective companies. Specifications are subject to change without notice. -
Page 14: Timing Chart
Timing Chart The following table lists the maximum refresh rates that the ViewSonic PJ1060 will operate at a number of standard resolutions (timing presets). While the projector is capable of this level of performance, not all video cards are capable of operating at these signal timings. See your graphics card's user guide to ensure compatibility. -
Page 15: Troubleshooting
] > y f i y l t h t i , t i t i n t i a a l i o i t t l i f y f i n i t ° 5 ViewSonic PJ1060... -
Page 16: Control Panel Indicators
Customer Support Most of your questions can be answered as follows: 1 For the nearest ViewSonic authorized service provider, look up the ViewSonic Web site for your region or country. 2 For other assistance contact your reseller, or ask your reseller to refer you to a service center. -
Page 17: Maintenance
4 Re-install the air filter, then the Front Filter Cover. NOTE: If sufficient dust, etc. collects in the air filter, a protection circuit in the projector will automatically turn off the power. To prevent this from occurring, make sure you clean the air filter every 100 hours. -
Page 18: Warranty
How long the warranty is effective: ViewSonic projectors are warranted for two (2) years for all parts excluding the lamp, two (2) years for all labor, and ninety (90) days for the lamp from the date of the first consumer purchase. - Page 19 NOTES ViewSonic PJ1060...
