Summary of Contents for AEG BPE555360M

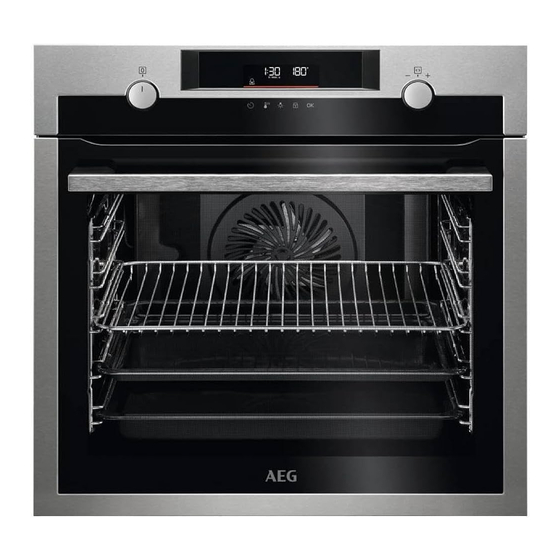

- Page 1 EN User Manual | Oven BPE555360M BPS35516XM aeg.com\register...
-
Page 2: Table Of Contents
Welcome to AEG! Thank you for choosing our appliance. Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................4 3. PRODUCT DESCRIPTION................7 4. CONTROL PANEL..................8 5. - Page 3 be kept away from the appliance unless continuously supervised. • Children should be supervised to ensure that they do not play with the appliance. • Keep all packaging away from children and dispose of it appropriately. • WARNING: The appliance and its accessible parts become hot during use.
-
Page 4: Safety Instructions
• Always use oven gloves to remove or insert accessories or ovenware. • To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence. •... - Page 5 • Make sure that the parameters on the • Do not let the appliance stay unattended rating plate are compatible with the during operation. electrical ratings of the mains power • Deactivate the appliance after each use. supply. • Be careful when you open the appliance •...
- Page 6 2.4 Care and cleaning – provide good ventilation during and after the initial preheating. • Do not spill or apply water on the oven WARNING! door during and after the pyrolytic cleaning Risk of injury, fire, or damage to the to avoid damaging the glass panels.
-
Page 7: Product Description
• Contact your municipal authority for • Remove the door catch to prevent children information on how to dispose of the or pets from becoming trapped in the appliance. appliance. • Disconnect the appliance from the mains supply. • Cut off the mains electrical cable close to the appliance and dispose of it. -
Page 8: Control Panel
Grill- / Roasting pan To bake and roast or as a pan to collect fat. Telescopic runners For inserting and removing trays and wireshelf more easily. 4. CONTROL PANEL 4.1 Retractable knobs functions to the off position to turn the appliance off. -
Page 9: Before First Use
Minute minder Time Delay Uptimer End time Progress bar - for temperature or time. The bar is fully red when the appliance reaches the set tem‐ perature. Steam cooking indicator 5. BEFORE FIRST USE WARNING! Refer to Safety chapters. 5.1 Initial cleaning Before the first use, clean the empty appliance and set the time: 00:00 Set the time. - Page 10 6.1 How to set: Heating functions Step 1 Turn the knob for the heating functions and select a heating function. Step 2 Turn the control knob to set the temperature. - press and hold to turn on the function: Fast Heat Up. It is available for some oven functions. Steam cooking Make sure that the oven is cold.
- Page 11 Heating function Application To bake cakes with crispy bottom and to preserve food. Bottom Heat To make convenience food crispy, e.g. french fries, potato wedges or spring rolls. Frozen Foods This function is designed to save energy during cooking. When you use this function, the temperature inside the appliance may differ from the set temperature.
- Page 12 P1 - P... Enter the menu. Select Assisted Cooking. Select the dish. Press Insert the dish to the oven. Confirm setting. Press 6.5 Assisted Cooking Legend Legend Preheat the appliance before you start cooking. Weight Automatic available. Shelf level. The amount of water for the steam func‐ tion.
- Page 13 Dish Weight Shelf level / Accessory Pork roast neck or 1.5 - 2 kg 2; roasting dish on wire shelf shoulder Turn the meat after half of the cooking time. Pulled pork (slow 1.5 - 2 kg 2; baking tray cooking) Use your favourite spices.
- Page 14 Dish Weight Shelf level / Accessory Apple cake 100 - 150 ml; baking tray Apple tart 2; pie form on wire shelf Apple pie 100 - 150 ml; 22 cm pie form on wire shelf Brownies 2 kg of dough 3;...
-
Page 15: Clock Functions
7. CLOCK FUNCTIONS 7.1 Clock functions Clock Function Application When the timer ends, the signal sounds. Minute minder When the timer ends, the signal sounds and the heating function stops. Cooking time To postpone the start and / or end of cooking. Time Delay Maximum is 23 h 59 min. -
Page 16: Using The Accessories
How to set: Cooking time Step 1 Step 2 Step 3 Step 4 The display shows: 0:00 Choose a heating Press repeatedly: function and set the Set the cooking time. Press: temperature. Timer starts counting down immediately. How to set: Time Delay Step 1 Step 2 Step 3... -
Page 17: Additional Functions
Wire shelf: Push the shelf between the guide bars of the shelf support. Baking tray / Deep pan: Push the tray between the guide bars of the shelf support. 9. ADDITIONAL FUNCTIONS 9.1 Lock This function prevents an accidental change of the appliance function. Turn it on when the appliance works - the set cooking continues, the control panel is locked. -
Page 18: Hints And Tips
The Automatic switch-off does not work with the appliance cool. If you turn off the the functions: Light, Time Delay. appliance, the cooling fan can continue to operate until the appliance cools down. 9.3 Cooling fan When the appliance operates, the cooling fan turns on automatically to keep the surfaces of 10. - Page 19 Ramekins Pizza pan Baking dish Flan base tin Ceramic Dark, non-reflective Dark, non-reflective Dark, non-reflective 8 cm diameter, 5 28 cm diameter 26 cm diameter 28 cm diameter cm height 10.4 Cooking tables for test institutes Information for test institutes Tests according to: EN 60350, IEC 60350.
-
Page 20: Care And Cleaning
Multilevel baking - biscuits °C Short bread True Fan Cooking 25 - 45 2 / 4 Small cakes, 20 per tray, pre‐ True Fan Cooking 25 - 35 1 / 4 heat the empty oven Fatless sponge cake True Fan Cooking 45 - 55 2 / 4 Apple pie, 1 tin per grid (Ø... - Page 21 Clean all accessories after each use and let them dry. Use only a microfibre cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher. Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects. Accessories 11.2 How to clean: Cavity embossment...
- Page 22 Before the Pyrolytic Cleaning: Turn off the oven and wait until Remove all accessories and remova‐ Clean the oven floor and the inner door it is cold. ble shelf supports. glass with warm water, a soft cloth and a mild detergent. Pyrolytic Cleaning Step 1 Enter menu: Cleaning...
- Page 23 Step 1 Fully open the door. Step 2 Lift and press the clamping levers (A) on the two door hinges. Step 3 Close the oven door to the first opening position (approximately 70° angle). Hold the door at both sides and pull it away from the oven at an upwards angle. Put the door with the outer side down on a soft cloth on a stable surface.
-
Page 24: Troubleshooting
Top lamp Step 1 Turn the glass cover to remove it. Step 2 Clean the glass cover. Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp. Step 4 Install the glass cover. 12. TROUBLESHOOTING WARNING! Refer to Safety chapters. 12.1 What to do if... -
Page 25: Energy Efficiency
13. ENERGY EFFICIENCY 13.1 Product Information and Product Information Sheet according to EU Ecodesign and Energy Labelling Regulations Supplier's name BPE555360M 944188781 Model identification BPS35516XM 944188780 Energy Efficiency Index 81.2 Energy efficiency class Energy consumption with a standard load, conventional mode 1.09 kWh/cycle... -
Page 26: Menu Structure
Volume 71 l Type of oven Built-In Oven BPE555360M 37.5 kg Mass BPS35516XM 34.0 kg IEC/EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Meth‐ ods for measuring performance. 13.2 Energy saving the residual heat. -
Page 27: Environmental Concerns
Select the option Adjust the value and from Menu structure - select to enter - press to con‐ Select the setting. the Menu. firm setting. press and press Turn the knob for the heating functions to the off position to exit the Menu. Menu structure Assisted Cooking Cleaning... - Page 28 867371874-C-362023...
