Installation
5. Secure the HMI panel in position, using all the fastening holes and the provided brackets and
screws.
Tighten the screws to 0.5 - 1.0 Nm.
6. In cases where the front panel seal (IP54 or greater, NEMA-4X) is critical, use a torque wrench to
ensure all screws are torqued within the specification above.

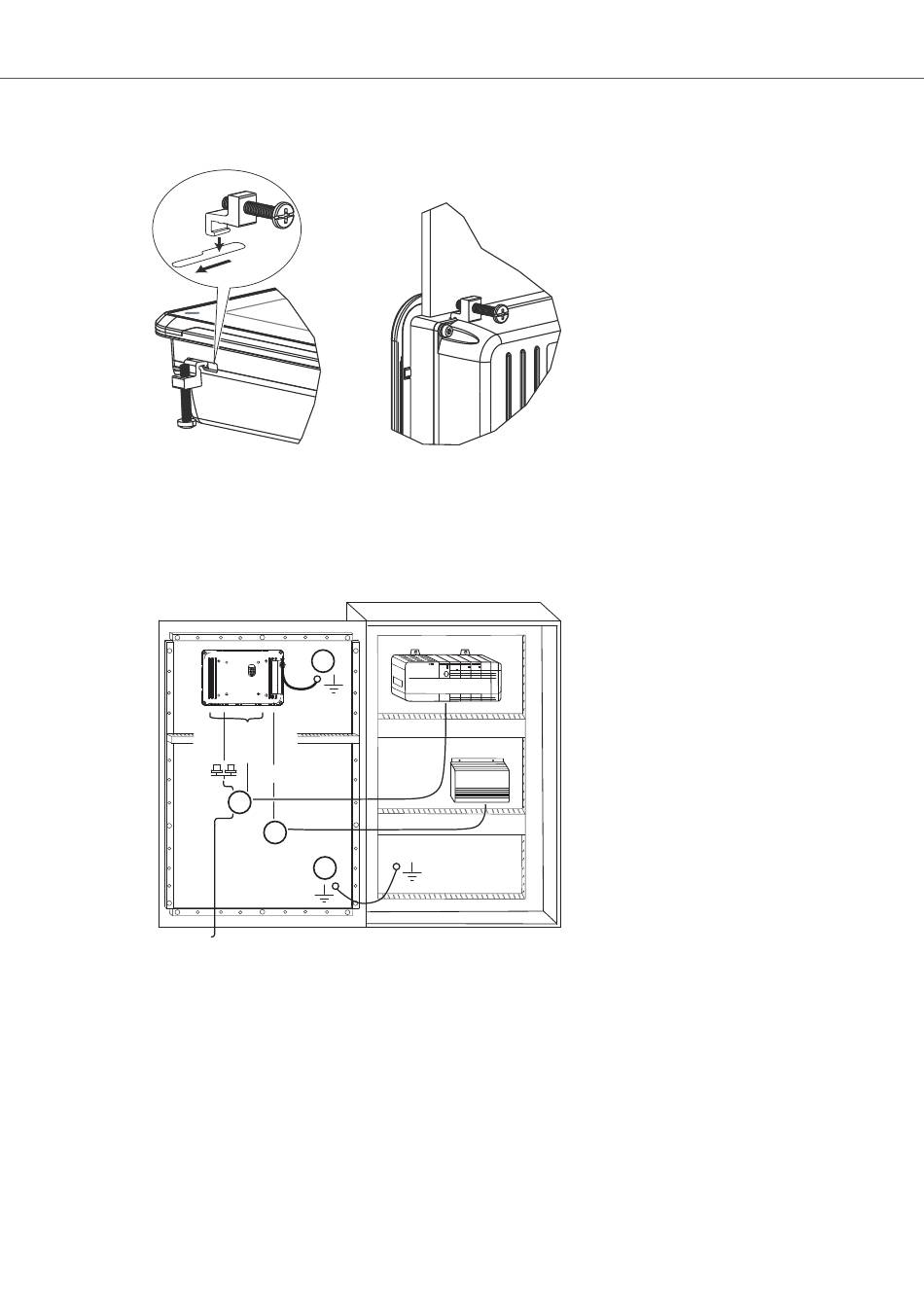

7. Connect the cables in the specified order, according to the following drawing and steps.
RS232/
RS422/
RS485
24V DC
C
D
Ethernet
The image is illustrative only and may differ slightly from the actual panel.
• Connect cable A.
• Connect cable B, using 14-20 AWG (2.08–0.52 mm
• Connect cable C.
• Connect cable D. The recommended cross-section of the cable is 1.5 mm
8. Carefully remove the protective film over the HMI panel display, taking care to avoid static
electricity that could damage the panel.
2024-01
x 4 or 8
B
Power
Controller
24V DC
A
12
2
), 180–220 N-cm torque.
2
.
