3. Installation

3.1. Space Requirements

• Maximum installation plate thickness: 11 mm.

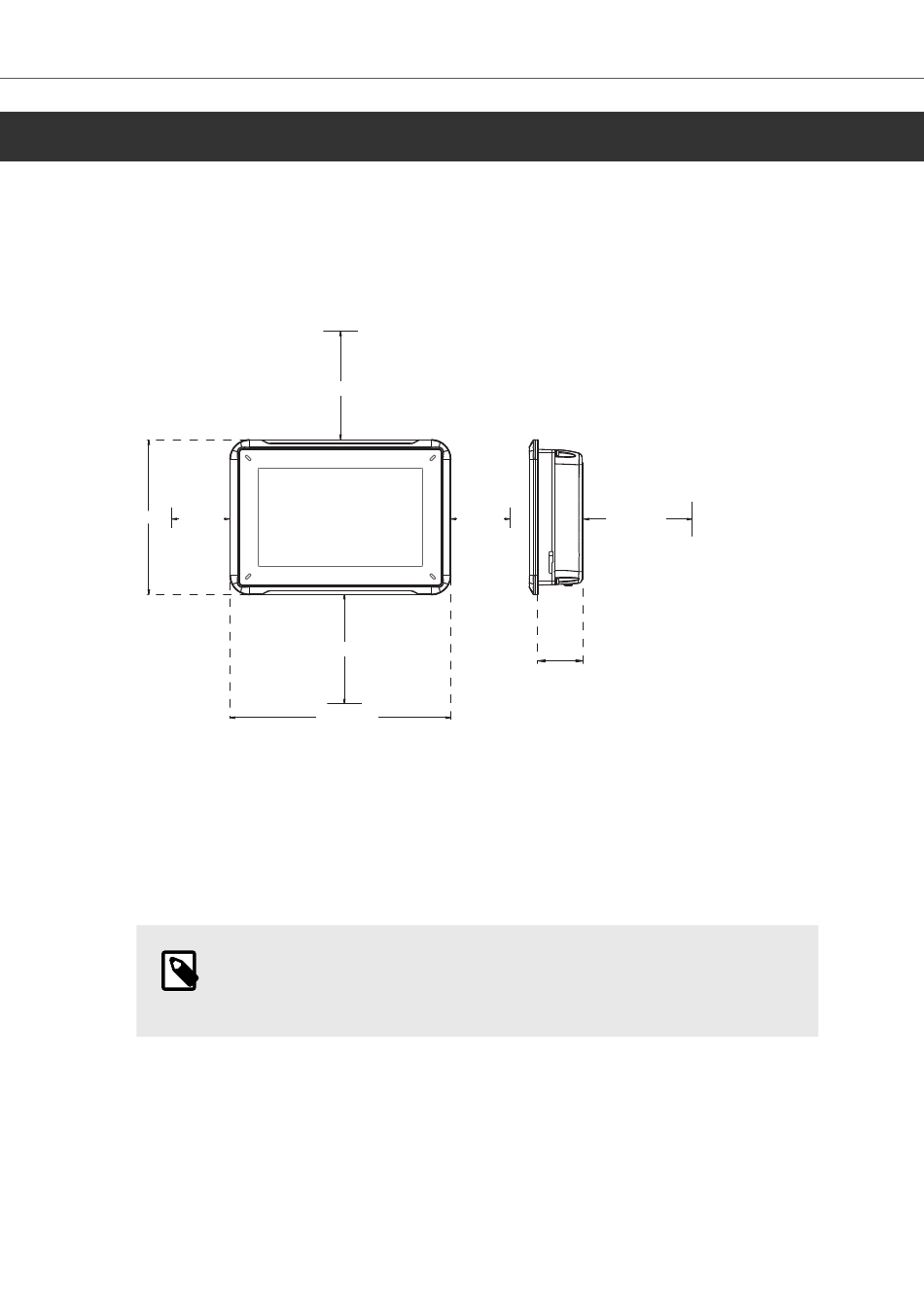

The following drawings show the space requirements in millimeters when installing the HMI panel.
The drawings are only illustrative and may be out of proportion.
143 mm
50 mm

3.2. Installation Process

The following is needed:
• A Phillips/slot screwdriver
Do the following:
1. Unpack and check the delivery. If damage is found, notify the supplier.
NOTE
Place the on a stable surface during installation. Dropping the HMI panel or
letting it fall may cause damage.
2. To cut a correct opening for the HMI panel, use the cut out dimensions in the outline drawing.
A separate cut out drawing is available for download from the Beijer Electronics web site. For
more information, see chapters HMI Panel Drawings and Technical Data.
3. Make sure that the mounting surface of the cutout is smooth and cleaned from any burrs or
debris.
4. Install the HMI panel into the cutout.
Beijer Electronics, MAEN364
100 mm
50 mm
100 mm
204 mm
11
100 mm
43 mm
