3. Installation

3.1. Space Requirements

• Maximum installation plate thickness: 7 mm.

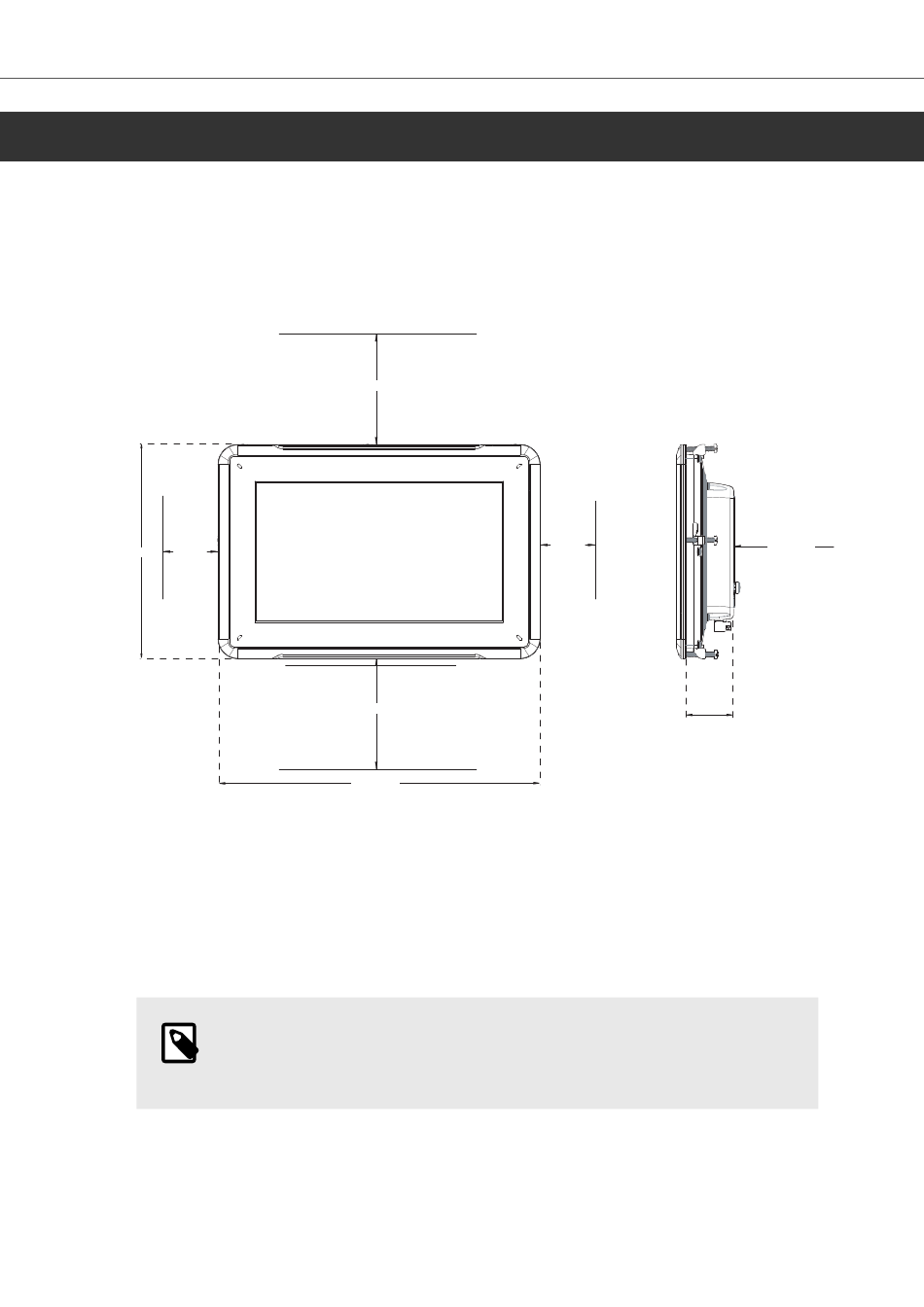

The following drawings show the space requirements in millimeters when installing the HMI panel.
The drawings are only illustrative and may be out of proportion.
194 m m
50 m m

3.2. Installation Process

The following is needed:
• A Phillips/slot screwdriver
Do the following:
1. Unpack and check the delivery. If damage is found, notify the supplier.
NOTE
Place the on a stable surface during installation. Dropping the HMI panel or
letting it fall may cause damage.
2. To cut a correct opening for the HMI panel, use the cut out dimensions in the outline drawing.
A separate cut out drawing is available for download from the Beijer Electronics web site. For
more information, see chapters HMI Panel Drawings and Technical Data.
Beijer Electronics, MAEN221
100 m m
100 m m
292 m m
11
50 m m
45 m m
Installation
100 m m
