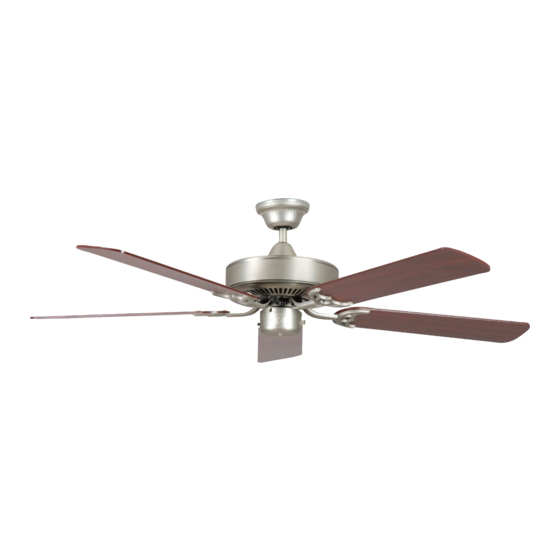

- Page 1 BEVERLY™ INSTALLATION INSTRUCTIONS 52-INCH INDOOR LED CEILING FAN www.trulygreensolutions.com...
- Page 2 Dimension Reference: 5-1/4 in 52 in Hardware Package Included: Hardware Package Paper Washers Bracket Screw S11. Fan Parts Included: 3. Canopy 4. Coupler Cover 5. Fan Motor Assembly Blade Arm 7. Fan Blade www.trulygreensolutions.com...
-
Page 3: Exploded View
Exploded View: Junction Box Canopy Screws Mounting Bracket Support Rod Ceiling Canopy Coupler Cover Cotter Pin Safety Pin Blade Arm Screws Fiber Washer Fan Motor Assembly Three Speed Switch Pull Chain Blade Switch Housing Blade Arm www.trulygreensolutions.com... -
Page 4: Safety Instructions
Safety Instructions: READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN. IF YOU ARE NOT FAMILIAR WITH NATIONAL AND LOCAL ELECTRICAL CODES AND BASIC ELECTRICAL WIRING PROCEDURES WE RECOMMEND THAT YOU HAVE A QUALIFIED ELECTRICIAN INSTALL YOUR NEW CEILING FAN. SAVE INSTRUCTIONS. •... -
Page 5: Installation Instructions
Warning: • To reduce the risk of fire, electrical shock, or personal injury, mount this fan to an outlet box marked “Acceptable for Fan Support of 22.7 kg ( 50 lbs )” or less and use Mounting Screws provided with the outlet box. - Page 6 Step 2 Install Mounting Bracket FIG 3 Install the mounting bracket onto the electrical junction box in the ceiling Junction Box using two machine screws, two washers and two lock washers (see figure The mounting bracket has slotted holes to enable it to move sideways for proper alignment.
- Page 7 FIG 7 Step 3 Hanging the Fan Body (continued...) Trim the lead wires, leaving about six inches of each wire extending from the Ground Wire support rod (see figure 7). Ball Hanger Support Rod Step 4 Making the Electrical Connections FIG 8-1 To operate your ceiling fan with the pull chain(s) and switches mounted on your fan, follow the instruction below (see figure 8-1).
-
Page 8: Maintenance
FIG 10 Step 6 Blade And Blade Arm Assembly Motor Housing Lightly attach each blade to the blade arm by using 3pcs screws and fiber washers as shown in figure 10. Tighten each Fan Blade Screw Fiber Washer screw. Make sure the blade is straight. Attach each blade assembly to motor aeembly by using 2pcs provided screws. -
Page 9: Operation
Operation: The pull chain located on the switch housing controls the speed of your fan. When the fan is OFF, pull the chain once for HIGH speed, twice for MEDIUM speed, three times for LOW speed and a fourth time to turn it off again. Turn fan completely off before moving the reverse switch. -
Page 10: Troubleshooting Guide
Troubleshooting Guide: cases these installation errors may be mistaken for defects. If you experience any faults please check this troubleshooting guide. Problem Suggested Remedy: 1. Check main and branch circuit fuses or circuit breakers. 2. Check line wire connections to fan and switch wire connections in switch housing. CAUTION: 1.
