- Page 1 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 500085 | 500092 | 501262 Biketec GmbH Luzernstrasse 84 NETWORKED CH-4950 Huttwil CUSTOMISED T +41 62 959 53 00 INTELLIGENT info@biketec.ch fit-ebike.com...
-
Page 2: Table Of Contents
FIT DISPLAY COMPACT ........ - Page 3 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 11 TROUBLESHOOTING, FAULT CLEARANCE AND REPAIR 11.1 TROUBLESHOOTING AND FAULT CLEARANCE ....... . . 40 11.1.1 DRIVE SYSTEM OR DISPLAY DOES NOT START UP .
-
Page 4: Preface
1 PREFACE Dear FIT customer, The FIT system offers many useful functions and options and we are pleased that you have decided to choose our system. Please read through the operating instructions carefully to ensure you use the system safely and get off to a quick start. -
Page 5: About These Operating Instructions
INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 2 ABOUT THESE OPERATING INSTRUCTIONS 2.1 MANUFACTURER Biketec GmbH Luzernstrasse 84 CH-4950 Huttwil fit-ebike.com/en-en/ 2.2 LANGUAGE The original operating instructions are written in German. A translation is invalid without the original operating in- structions. -
Page 6: Safety Instructions
Keep the operating instructions in a safe place and have them readily available to consult. Pass these instructions on if you provide your e-bike for someone else’s use. When used in these operating instructions, the word “battery” refers to all original FIT e-bike batteries. 3.2 OPERATING ELEMENT AND DISPLAY Do not let the messages on the display screen distract you. -
Page 7: Product And Technical Specifications
FIT DISPLAY COMPACT + FIT REMOTE BASIC 4 PRODUCT AND TECHNICAL SPECIFICATIONS 4.1 FIT DISPLAY COMPACT The FIT Display Compact combines the same functions in a compact 2” display as in its larger counterpart, offering optimum visibility in a small design. 4.1.1 DISPLAY AND SETTINGS The following display elements remain the same on all screens and show the key settings and information about the vehicle and the current trip. -
Page 8: Operating Element

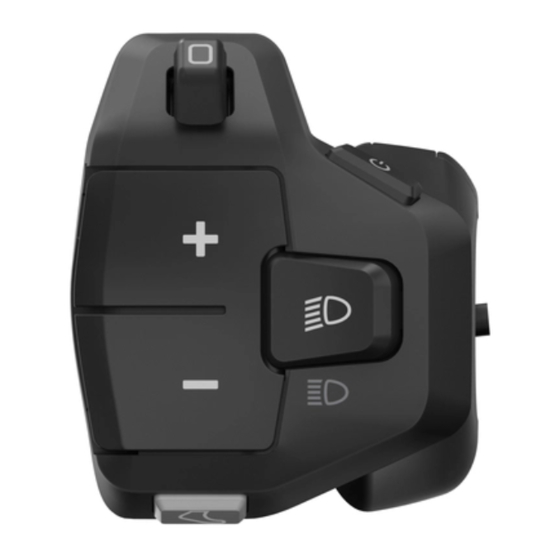

4.2 OPERATING ELEMENT The ergonomic operating element FIT Remote Basic allows you to control the FIT Display easily and safely, even while riding. The button backlit by LEDs and the vibration feedback ensure optimum usability, even in the dark or while wearing gloves. -
Page 9: Improper Use
INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 4.4 IMPROPER USE Improper use refers to use which is not described under proper use or goes beyond proper use. 4.5 TECHNICAL DATA 4.5.1 FIT DISPLAY COMPACT Display FIT Display Compact... -
Page 10: Transportation And Storage
INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 5 TRANSPORTATION AND STORAGE 5.1 TRANSPORTATION Exclamat CAUTION Remove battery before transportation. There is a risk of injury if the drive system is switched on unintentionally. 5.1.1 TRANSPORTING E-BIKES Protect the electrical components and connections on the e-bike from the elements with suitable protective covers. -
Page 11: Fitting
6.1 FITTING THE FIT DISPLAY COMPACT As the mount docks available to hold the display are identical, the FIT Universal Mount is used as an example to show how the display is fitted into place. The display is fitted in the same way on the FIT Display Center Mount. - Page 12 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Removing FIT Display Compact 1. Remove the anti-theft securing screw if you have one fitted. 2. Press the unlocking mechanism. 3. Remove display, pulling it upwards. FIT_Manual_Display_Compact_Remote_Basic_V1_en | Version 01 | 04.04.2022...
-
Page 13: Operation
INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 7 OPERATION 7.1 INITIAL OPERATION 7.1.1 ELECTRIC DRIVE SYSTEM SWITCHING ON THE ELECTRIC DRIVE SYSTEM The system can only be switched on if a sufficiently charged battery and the display are inserted. -
Page 14: Push Assist
INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 7.2.1 PUSH ASSIST Assistance mode icon: Push assist makes it easier to push an e-bike. Do not use the push assist system to ride your e-bike. If you activate the push assist system, you can push your e-bike more comfortably out of an underground garage or up a steep section. -
Page 15: Notice/Error Icon
Re-start the system. Contact Warning/error your FIT specialist dealer if the problem persists. You need to take your e-bike to your FIT specialist dealer for Service is due maintenance as soon as possible. Reduced power for riding assistance. (This is not an error; it is... - Page 16 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC DRIVE SUB-SCREEN 1. Linked devices (heart rate sensor, smartphone, including smart- phone battery charge level) 2. Odometer (total number of kilometres that the e-bike has cov- ered. This value cannot be reset) 3.
- Page 17 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC TRIP SUB-SCREEN 1. Difference in altitude ridden during the current trip 2. Average battery consumption during the current trip TRIP SUB-SCREEN 2 1. Maximum speed for the current trip 2. Average speed of the current trip...
- Page 18 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC FITNESS MAIN SCREEN 1. Current pulse (only displayed if a heart rate sensor is connected. This option depends on the model. The system only supports heart rate bracelets featuring Bluetooth 4 and higher or Blue- tooth Low Energy.)
- Page 19 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC AREA MAIN SCREEN 1. Current altitude (measured based on the air pressure) 2. Current inclination or downward slope as a percentage AREA SUB-SCREEN 1. Temperature FIT_Manual_Display_Compact_Remote_Basic_V1_en | Version 01 | 04.04.2022...
- Page 20 NAVI MAIN SCREEN A connection to Komoot and your FIT 2.0 Display will be available shortly. We will notify you when it is available. You will need to have a free update installed at your specialist dealer’s to use it.
-
Page 21: Settings Menu
INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 8 SETTINGS MENU The settings menu is the last screen, which can be accessed by pressing the selector button to the right. It can only be accessed when the e-bike is stationary. -
Page 22: Menu Structure
INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 8.1 MENU STRUCTURE 1. Reset Values (a) Trip Reset (b) Factory Reset 2. Localization (a) Language (b) Time (c) Date (d) Units (metric/imperial) (e) Time format (12h/24h) 3. Connectivity (a) Connect Heart Rate Sensor 4. - Page 23 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Time You can use the Clock menu to change the current time. You can change the numbers by pressing the – or + on the level of assistance button. You can use the selector button to select the number you wish to change. You need to press on the selector button to save the selected time and exit the Clock menu.
- Page 24 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Auto Power Off You can use the Auto Power Off menu to configure the time interval after which the system switches off automatically if it is not used. Vibration Feedback You can use the Vibration Feedback menu to configure the operating element’s vibration feedback signal. The follow-...
-
Page 25: Error Messages
INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 9 ERROR MESSAGES 9.1 GENERAL INFORMATION The parts of the e-bike system are permanently monitored during use and charging. The error code is shown on the display when an error is detected. Press on the selector button to acknowledge the error and switch back to the default screen on the display. -
Page 26: Error Table
INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 9.3.1 ERROR TABLE If the last two digits are listed with ”xx” as a placeholder, this provides the specialist dealer with additional information for error analysis. Error code Displayed error message... - Page 27 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Error code Displayed error message Action/limitation 0C-02 Remote-Display Identification 1. Re-start the system. Error 2. Switch off system. 3. Remove display from the mount, check contacts and clean if necessary. 4. Re-insert display and start system.
- Page 28 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Error code Displayed error message Action/limitation 0D-08 Gear Switch Authentication Error 1. Re-start the system. 2. Contact your specialist dealer if the problem persists. 0D-0A Charger Authentication Error 1. Re-start the system.
- Page 29 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Error code Displayed error message Action/limitation 0F-0A Charger Update Error 1. Re-start the system. 2. Switch off system. 3. Disconnect charger from system and socket. 4. Wait until the status LED goes out.
- Page 30 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Error code Displayed error message Action/limitation 12-0B Remote-Lock Pairing Error 1. Re-start the system. 2. Contact your specialist dealer if the problem persists. 13-xx Remote Internal Error 1. Re-start the system.
- Page 31 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Error code Displayed error message Action/limitation 16-02 Display Theft Detection 1. Re-start the system. 2. Switch off system. 3. Remove display from the mount, check contacts and clean if necessary. 4. Re-insert display and start system.
- Page 32 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Error code Displayed error message Action/limitation 17-07 Speednode Defective Components 1. Re-start the system. 2. Contact your specialist dealer if the problem persists. 17-08 Gear Shift Defective Components 1. Re-start the system.
- Page 33 2. Re-start the system. 3. Contact your specialist dealer if the problem persists. 1C-xx Bluetooth Module Error 1. Re-start the system. 2. Re-start FIT E-Bike Control (app); update if necessary. 3. Contact your specialist dealer if the problem persists. 1D-xx EMS mode active 1.
- Page 34 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Error code Displayed error message Action/limitation 29-xx Display Communication Error 1. Re-start the system. 2. Contact your specialist dealer if the problem persists. 2A-xx Display Software Error 1. Re-start the system.
- Page 35 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Error code Displayed error message Action/limitation 4E-xx Motor Cadence Sensor Error 1. Re-start the system. 2. Contact your specialist dealer if the problem persists. 4F-xx Motor Authentication Error 1. Re-start the system.
- Page 36 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Error code Displayed error message Action/limitation 69-03, 69-0C Battery temperature error 1. Take battery into warm environment. 2. Leave battery to warm up (> 30 minutes). 3. Start charging again. 4. Contact your specialist dealer if the problem persists.
- Page 37 3. Start the charging process again. 4. Contact your specialist dealer if the problem persists. 9A-xx Lock Authentication Error 1. Check that an original FIT lock is installed. 2. Restart system. 3. Contact your specialist dealer if the problem persists. 9B-xx Lock blocked 1.
- Page 38 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Error code Displayed error message Action/limitation 9C-xx Lock Hardware Error 1. Restart system. 2. Check lock for damage. 3. Contact your specialist dealer if the problem persists. 9D-xx Lock movement detected 1.
-
Page 39: Cleaning And Servicing
INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 10 CLEANING AND SERVICING 10.1 BASIC CLEANING 10.1.1 CLEANING THE DISPLAY AND OPERATING ELEMENT INFO-CIR NOTICE The display and operating element will be permanently damaged if water enters them. Never immerse the display or operating element in water. - Page 40 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 11 TROUBLESHOOTING, FAULT CLEARANCE AND REPAIR 11.1 TROUBLESHOOTING AND FAULT CLEARANCE 11.1.1 DRIVE SYSTEM OR DISPLAY DOES NOT START UP If the display and/or the drive system do not start up, proceed as follows: 1.
- Page 41 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC Symptom Cause Remedy The assisted The battery does not perform as This does not indicate a problem. journey distance well in winter weather. is too short. The journey distance can be 1.
- Page 42 INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC 12 RECYCLING AND DISPOSAL 12.1 DISPOSAL Mechanical and electrical devices, accessories and packaging should be taken for recycling in an environ- mentally responsible manner. Do not dispose of them in the household waste!
