Make sure to read the "Installation Manual" for safety precautions before
z
installing unit or accessories.
Please make sure the vehicle is well parked in a safe place. Make sure that the
z
engine and the power are switched off.
Avoid installation outdoors during rain or thunder storms.
z
The instructions presented in this manual are based on the passenger seat at the
z
right of the driver's seat.
accordingly.
Objects on the monitor are closer than they appear.
z
This ClipCam camera is not a safety device. Safe driving is the driver's
z
responsibility in all circumstances.
Under no circumstances shall the manufacturer or distributor of the ClipCam be held liable for
consequential or incidental damages sustained in connection with the use of the ClipCam rear vision
system. The ClipCam is designed as a safety enhancement device and is in no way intended as a
replacement for rear-view mirrors, side-view mirrors or physically checking the surroundings when
backing a vehicle. Always check surroundings for safety when backing. Objects on the monitor are closer
than they appear. For the best fit, modification of the vehicle license may or may not be necessary. It is the
sole responsibility of the vehicle owner to check and verify any and all state or federal motor vehicle codes
with regard to modifications of vehicle license plates.
Under the supervision of PEC, this manual has been compiled and published, covering the latest description
and specification. The contents of this manual and the specifications of this product are subject to change
without notice. PEC reserves the right to make changes without notice in the specification and material
contained herein and shall not be responsible for any damages (including consequential) caused by reliance
on the materials presented, including but not limited to typographical and other errors relating to the
publication.

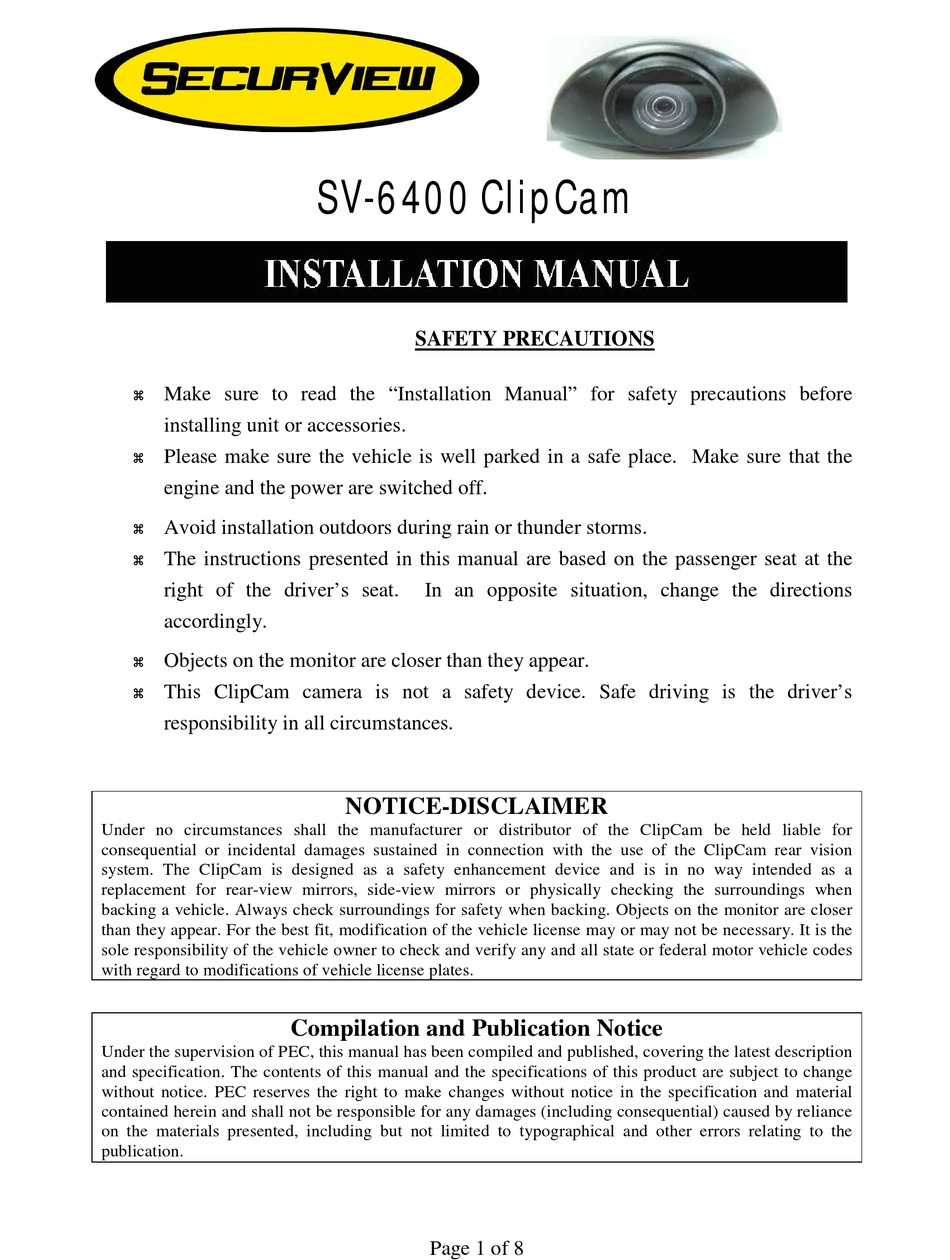

SV-6400 ClipCam
SAFETY PRECAUTIONS
In an opposite situation, change the directions
NOTICE-DISCLAIMER
Compilation and Publication Notice
Page 1 of 8
Advertisement
Table of Contents
Related Manuals for CrimeStopper SecurView SV-6400
Summary of Contents for CrimeStopper SecurView SV-6400
- Page 1 SV-6400 ClipCam Make sure to read the “Installation Manual” for safety precautions before installing unit or accessories. Please make sure the vehicle is well parked in a safe place. Make sure that the engine and the power are switched off.
-
Page 2: Package Contents
PACKAGE CONTENTS Check your package for the listed contents. If you do not find all of the listed items, contact the supplier from whom you purchased the camera before installing the unit and accessories. (1) Clip Cam (1) Camera Clip (small) (2) Screws INSTALLATION Before installing the unit and accessories, read this manual in its entirety. - Page 3 Step 1: Testing the Camera (Bench Testing) 1. Prepare two sets of DC 11-13V batteries for running a bench test to make sure the camera functions are working properly (before you actually install the camera into your vehicle). 2. Refer to the wiring diagram (4.1-3) the camera and the monitor each have to have their own power source, DO NOT connect with the same battery.
- Page 4 2. When making your selection, choose the tighter fit of the 2 camera clips that are included. 3. Insert the camera clip into the camera housing. 4. If for any reason you need to change the camera clip size, please open the pre-cut window at the back side of the camera.
- Page 5 6. Optional installation: Sometimes the space between vehicle license plate and rear trunk lip area is very narrow, which may cause problems when installing the ClipCam. An adjustable bracket is available to deal with this problem. Install the adjustable bracket to move up the license plate until you have enough space to install the ClipCam.
- Page 6 2. In most cases and as a time saver, connect the camera power at the rear of vehicle behind the reverse lights. The red power wire line goes to the reverse light + 12 V and the black wire to ground. 3.
- Page 7 Technical Specification The following table defines the technical specifications for the SV-6400 ClipCam. Page 7 of 8...
- Page 8 ª 1770 SOUTH TAPO STREET SIMI VALLEY, CALIFORNIA 93063 ª ª 800-998-6880 805-526-9400 FAX 805-581-9500 WWW.CRIMESTOPPER.COM © 2005 CrimeStopper Security Products, Inc. Page 8 of 8...
