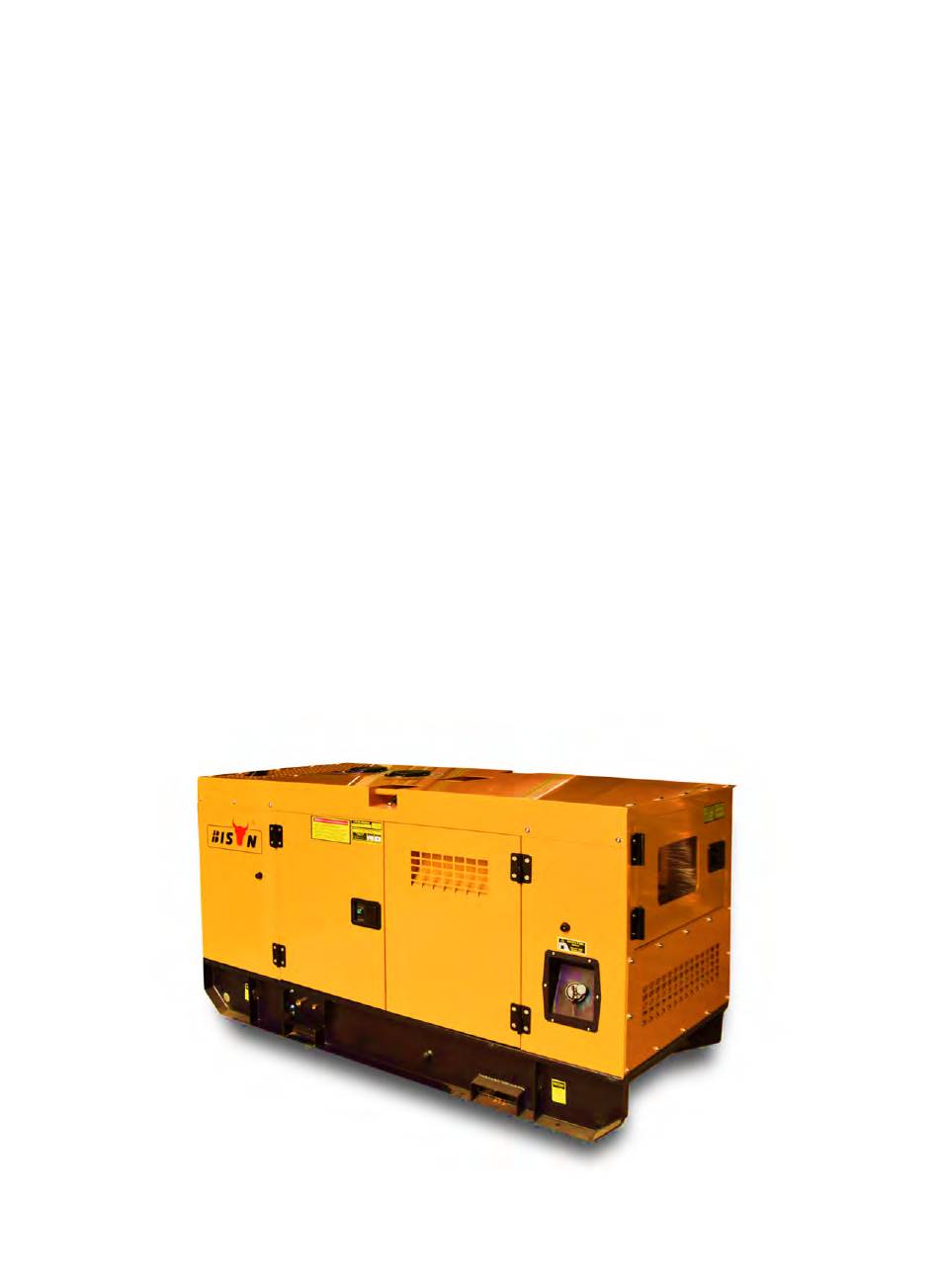

- Page 1 Operation Manual of Diesel Engine for Generators BS-20KVA(4DW91-29D) BS-30KVA(4DW92-39D) BS-50KVA(4DX22-65D) www.bezpeka-shop.com...
- Page 2 Safety Precautions Please read this operation manual carefully, which is closely related to your personal safety. This manual contains basic safety measures that must be adopted when maintaining your engines. Make sure that manuals are matched with your engine model before reading. ◆...
- Page 3 and correctly. Please read this manual carefully before you start with any work. You can obtain more detailed information in this respect from your distributor. Do not proceed with any work you are not certain about. Please contact with your distributors and ask them to extend help. ◆...
- Page 4 cooling liquids may easily give rise to scalding. ◆ Lubricating system Don’t touch high-temperature lubricating oil with your skin to prevent any scalding. Make sure that pressure has been discharged from the system before you start to work with the lubricating system. Don’t start or operate the engine when the filling cap of lubricating oil is not closed to avoid the danger of lubricating oil ejection.
- Page 5 www.bezpeka-shop.com...
- Page 6 Preface BS-30KVA/BS-50KVA Series diesel engines are evolved and developed on the basis of BS-30KVA/BS-50KVA Series vehicle diesel engines according to the requirements for electricity-application diesel engines, including models of naturally aspirated types, supercharged types and supercharged inter-cooling types. The power for this series of diesel engines is defined in accordance with the ISO standard power specified in section 5.1.2 of GB/T 2820.2-2009 “Reciprocating internal combustion engine driven alternating current generating sets-Part2: Engines”.This manual introduces various technical specifications, operation instructions and...
- Page 7 www.bezpeka-shop.com...
-
Page 8: Table Of Contents
Content ......................1.MAJOR TECHNICAL PARAMETERS OF DIESEL ENGINE ............................2.OUTLINE DRAWING OF DIESEL ENGINE ..........2.1 OUTLINE DRAWING OF 4DW81-23D, 4DW81-28D, 4DW91-29D AND 4DW91-38D ......................2.2 OUTLINE DRAWING OF 4DW92-35D AND 4DW92-42D ......................2.3 OUTLINE DRAWING OF 4DW93-42D AND 4DW93-50D ...................... - Page 9 ......................... (1) DIESEL ENGINE CANNOT BE STARTED PROPERLY ................................... (2) ABNORMAL OIL PRESSURE ..................................(3) SMOKE IN EXHAUST GAS ....................................(4) INSUFFICIENT POWER ...................................... (5) ABNORMAL NOISE ....................................(6) SEVERE VIBRATION ....................................(7) ENGINE OVERHEAT ........................... (8) EXCESSIVELY LARGE OIL CONSUMPTION ............................
-
Page 10: Major Technical Parameters Of Diesel Engine
Chapter 1. Diesel Engine Data 1. Major technical parameters of diesel engine (1500rpm) Engine Model 4DW81-23D 4DW91-29D 4DW92-35D 4DW92-39D 4DW93-42D In-line, four-cylinder, four-stroke Type Naturally Naturally Supercharged Supercharged Supercharged Aspiration aspirated aspirated and inter-cooling Cooling mode Water-cooling Bore × Stroke (mm×mm) 85×95 90×100 90×100... - Page 11 Heat dissipation of engine (kW) Heat dissipation of coolant 13.1 16.1 18.9 20.8 22.1 (kW) Heat dissipation of inter-cooler (kW) Speed ratio of fan 170/113 170/113 200/113 200/113 200/113 Water pump flow rate-lift 2257rpm 60-≥4.5m 2655rpm 71-≥6.3m (L/s-mH2o) Diameter of fan(mm) Power of fan(kW) Engine 12V 3.5kW...
- Page 12 Major technical parameters of diesel engine (1500rpm) Engine Model 4DX21-45D 4DX21-53D 4DX22-50D 4DX22-65D 4DX23-65D 4DX23-78D In-line, four-cylinder, four-stroke Type Naturally Naturally Supercharged Supercharged Supercharged Supercharged Aspiration aspirated aspirated and inter-cooling Water-cooling Cooling mode Bore × Stroke (mm×mm) 102×118 102×118 102×118 102×118 102×118 102×118...
- Page 13 Heat dissipation of engine (kW) Heat dissipation of coolant 25.2 26.1 26.7 34.5 34.5 41.6 (kW) Heat dissipation of inter-cooler (kW) Speed ratio of fan 185/110 185/110 185/110 Water pump flow rate-lift 2523r/min 162≥5.4 2000r/min 152-≥5.4 2000r/min 152-≥5.4 (L/s-mH2o) Diameter of fan(mm) Power of fan(kW) Engine 24V 4.5kW...
- Page 14 Major technical parameters of diesel engine (1800rpm) Engine Model 4DW81-28D 4DW91-38D 4DW92-42D 4DW92-45D 4DW93-50D In-line, four-cylinder, four-stroke Type Naturally Naturally Supercharged Supercharged Supercharged Aspiration aspirated aspirated and inter-cooling Cooling mode Water-cooling Bore × Stroke (mm×mm) 85×95 90×100 90×100 90×100 90×100 Compression ratio 18:01 18:01...
- Page 15 Heat dissipation of engine (kW) Heat dissipation of coolant 15.4 21.7 22.1 23.4 26.7 (kW) Heat dissipation of inter-cooler (kW) Speed ratio of fan 170/113 170/113 200/113 200/113 200/113 Water pump flow rate-lift 2708rpm 73-≥6.5m 3186rpm 86-≥9.0m (L/s-mH2o) Diameter of fan(mm) Power of fan(kW) Engine 12V 3.5kW...
- Page 16 Major technical parameters of diesel engine (1800rpm) 4DX21-53D 4DX21-61D 4DX22-60D 4DX22-75D 4DX23-82D 4DX23-90D Engine Model In-line, four-cylinder, four-stroke Type Naturally Naturally Supercharged Supercharged Supercharged Supercharged Aspiration aspirated aspirated and inter-cooling and inter-cooling Water-cooling Cooling mode Bore × Stroke (mm×mm) 102×118 102×118 102×118 102×118...
- Page 17 Heat dissipation of engine (kW) Heat dissipation of coolant 27.3 29.3 35.8 39.0 42.9 (kW) Heat dissipation of inter-cooler (kW) Speed ratio of fan 185/110 185/110 185/110 Water pump flow rate-lift 3027r/min 165-≥8.9 3027r/min 165-≥8.9 3027r/min 165-≥8.9 (L/s-mH2o) Diameter of fan(mm) Power of fan(kW) Engine 24V 4.5kW...
-
Page 18: Outline Drawing Of Diesel Engine
2、Outline Drawing of Diesel Engine 2.1 Outline drawings of 4DW81-23D, 4DW81-28D, 4DW91-29D and 4DW91-38D fuel filter observation hole oil pressure sensor NPT1/4 oil filter oil drainage plug screw M20×1.5 NPT1/4 water drainage valve M10×1 Φ8 Φ8 external diameter of fuel return external diameter of fuel inlet water temperature sensor interface... - Page 19 front end surface of engine block rear end surface of engine block upper respirator exhaust element width rear end surface of engine block depth 20 hole depth 24 www.bezpeka-shop.com...
-
Page 20: Outline Drawing Of 4Dw92-35D And 4Dw92-42D
2.2 Outline drawings of 4DW92-35D and 4DW92-42D binding post of air heater M5 oil pressure sensor NPT1/8 oil drainage plug screw M20×1.5 NPT1/4 water drainage valve rear end surface of engine block M10×1 external diameter of front end surface fuel inlet and return vent Φ8 of engine block water temperature sensor NPT3/8... - Page 21 location of exhaust vent 262 478 exhaust element width rear end surface of engine block depth 20 hole depth 24 www.bezpeka-shop.com...
-
Page 22: Outline Drawing Of 4Dw93-42D And 4Dw93-50D
2.3 Outline drawings of 4DW93-42D and 4DW93-50D oil pressure sensor speed sensor rear end surface front end surface of engine block of engine block external diameter of fuel inlet and return vent Φ8 267.5 location of exhaust vent 389.6 location of water filling front end surface water temperature of engine block... - Page 23 waste gas outlet of exhaust manifold 560 exhaust element width rear end surface of engine block depth 19 hole depth 24 depth 20 hole depth 24 www.bezpeka-shop.com...
-
Page 24: Outline Drawing Of 4Dx21-45D And 4Dx21-53D
2.4 Outline drawings of 4DX21-45D and 4DX21-53D installation position of installation position of oil pressure sensor NPT1/8 water temperature sensor NPT3/8 location of front support 395.5 external diameter of external diameter of fuel inlet pipe Φ10 fuel return pipe Φ10 installation position of speed sensor M18×1.5 location and dimension of fan 720 (element... - Page 25 center of exhaust vent 179 center of fan center of crankshaft exhaust width 478 (diameter of fan Φ420) center of fan connection dimension for rear end rear end surface rear end surface rear end surface of of engine block of crankshaft flywheel shell (thickness of flywheel shell) seam allowance for joint...
-
Page 26: Outline Drawing Of 4Dx22-50D And 4Dx22-60D
2.5 Outline drawings of 4DX22-50D and 4DX22-60D installation position of oil pressure sensor NPT1/8 4×M12 depth 21 external diameter of fuel inlet and return pipes for fuel pump Φ10 fuel drainage plug screw M20×1.5 rear end surface front end surface of engine block of engine block 302 center of exhaust vent... - Page 27 air heater M6 screw as the binding post 395.5 distance between front and rear support installation position of water temperature sensor inner diameter of exhaust vent center of crankshaft center of fan and water tank diameter of fan Φ478 width of water tank and exhaust www.bezpeka-shop.com...
-
Page 28: Outline Drawing Of 4Dx23-65D
connection dimension for rear end depth 20 hole depth 24 rear end surface rear end surface rear end surface of flywheel shell of engine block of crankshaft (thickness of flywheel shell) seam allowance of flywheel shell depth 10 depth 20 hole depth 24 joint surface of flywheel and connecting disk seam allowancefor joint... - Page 29 engine water outlet front end surface air inlet of rear end surface (outlet of thermostat cover) of engine block exhaust vent supercharged compressor of engine block water tank installation of speed sensor center of fan 4×M12 depth 21 center of crankshaft front support （flywheel shell thickness）...
- Page 30 center of crankshaft center of fan Φ550 (diameter of fan Φ520) center of fan center of crankshaft connection dimension for rear end depth 20 hole depth 24 rear end surface rear end surface rear end surface of flywheel shell of engine block of crankshaft (flywheel shell thickness) seam allowance...
-
Page 31: Engine Model And Its Definitions
3. Engine model and its definitions Definitions of each character constituting the engine model diesel engine for generator engine horsepower(power) naturally aspirated cylinder diameter engine series diesel engine number of cylinder Note: ① W represents the engine series. BS-30KVA/BS-50KVA Series has two engine models: 4DW and ②... -
Page 32: The Operating Environment Of Diesel Engine
Appendix 1 illustrates the changes of air density as the variations of altitude and ambient temperature. For diesel engines operating in the environment deviated from the standard criteria, the power should be modified according to the ambient environment or to the mutual agreement. ①... -
Page 33: The Cooling System Of Diesel Engine For Generators
Chapter 2. Installation Precautions of Diesel Engine 6. The cooling system of diesel engine for generators 1-Radiator 2-Thermostat 3-Fan 4-Water pump 5-Water inlet pipe (1) Cooling performance and layout of the cooling system The design of cooling system is very essential for the proper operation of diesel engines. Lack of cooling capability of the cooling system may easily cause the overheat of engine. - Page 34 Tw: The cooling liquid temperature at the engine outlet. Ta: The ambient temperature. Tia: The cooling air temperature before getting into the inter-cooler and water tank. Tia=Ta+Δt Δt: Temperature rise of cooling air before getting into the engine and generator. Generally, Δt equals to 4-7℃.
-
Page 35: Air Inlet And Exhaust System Of Diesel Engine
③ Generally, the ideal temperature difference between the inlet and outlet of the water tank is within 6-10℃. The wind velocity is 6-10m/s. The speed of fan blade rim must not exceed 90m/s. The effective cooling air volume required by the diesel engines at power station is 1.1-1.4 m3/min•kW. And the area of the water tank facing the wind is 0.35-0.40/m2/100Kw. -
Page 36: The Fuel Supply System Of Diesel Engine
(2) Supercharged inter-cooler. Select the supercharged inter-cooler in accordance with the air inlet flow rate and heat taken away by the supercharged air. Under standard environment, the air temperature getting into the diesel engine through the inter-cooler should be within 45-50℃, which is specified in the emission requirements. - Page 37 The operating speed governing lever can control the engine operation. When the lever is at the position of the idle speed limit screw, the engine is operation at idle speed. When the lever is at the position of maximum fuel supply, the engine is running at the maximum idle speed(the maximum speed rate without load).
- Page 38 Governor adjustment after engine start ① During engine start, adjust the potentiometer of engine start fuel level to regulate the fuel supply for actuator. Sufficient fuel supply can ensure complete engine start while limiting the black smoke produced by engine. ②...
-
Page 39: Engine Operation
10. Engine Operation 10.1 Preparation before engine start (1) Selection of diesel Sulphur content of the diesel will directly determine the emission of engine. Please use diesel compliance with the sulfur content requirements of emission. Users should choose proper grade of diesel according to the ambient temperature. At low temperature in winter, diesel with low freezing point is recommended to use. -
Page 40: Getting Prepared Before Starting The Engine
In addition, lubricating oil must be kept clean to avoid confusion of lubricating oil of different grades. (3) Selection of cooling liquids Like fuel and lubricating oil, cooling liquid is also crucial for diesel engine. Correct selection of cooling liquids and proper maintenance of cooling system can prevent many failures concerned with the cooling system, such as overheat of diesel engine, leakage of coolant pump, blockage of radiator and cavitation erosion of cylinder liner. -
Page 41: Starting The Engine
(6) In the event of chill and freezing temperature, diesel engine must be put in a warm place resisting cold and freeze. When engine is operating in the open air, warm up the oil pan and heat the cooling liquid before starting the engine. -
Page 42: Engine Shut-Down
10.5 Engine shut-down (1) Remove the load and operate the engine at low or idle speed for 5 minutes before shut-down. For supercharged diesel engine, a certain period of operation without load before engine shut-down can protect the supercharger from damage due to hot load. (2) If anti-freezing agent is not used at a temperature lower than 5℃, drain coolant promptly after engine is shut down to prevent damage of engine block. - Page 43 Check the lubricating oil level Daily maintenance Check the cooling liquid level Check the tightness for joints of fuel, water and air pipelines; troubleshoot any defect. 9~11 The same as the contents for daily maintenance Check the air intake system Every three months Check the air filter or 300 hours...
-
Page 44: Troubleshooting Of Common Failures
12.Troubleshooting of common failures Reason of failure Troubleshooting 1. Diesel engine cannot be started properly Low starting engine speed battery capacity loose Charging：tighten connector connector. securely; repair the binding post if necessary. Poor contact between carbon brush of Repair or replace carbon brush. starter and rectifier. -
Page 45: Abnormal Oil Pressure
Reason of failure Troubleshooting 2. Abnormal oil pressure Oil pressure is zero or too low Excessively low oil level, giving rise Oil filling；replace with new oil. to poor or thin oil quality. Broken oil pipe;oil leakage due to Welding; tighten it securely; replacement. loose pipe joint;... -
Page 46: Smoke In Exhaust Gas
Reason of failure Troubleshooting 3.Smoke in exhaust gas Black smoke Fuel injector is blocked by carbon Inspection, repair and replacement. deposit and needle valve is getting stuck. Overload. Adjust load to ensure it is within the specified range. Delay of fuel injection and some fuel Adjust the fuel supply advanced angle is burning during the process of of fuel injection pump. -
Page 47: Insufficient Power
Reason of failure Troubleshooting 4. Insufficient power Blockage of fuel filter or filter of fuel Clean or replacement. inlet pipe connector for fuel supply pump. Incorrect pressure or poor atomization Inspect fuel injector or replace fuel of fuel injector. injection nozzle parts. Excessively abrasion of precise parts Adjust fuel supply;... -
Page 48: Abnormal Noise
Reason of failure Troubleshooting 5. Abnormal noise The fuel supply advanced angle is too Adjust the fuel supply advanced large and there are noises inside the angle. cylinder sound like knock on the metal. The fuel injection nozzle is dripping Clean, repair or replace needle valve oil and meshed with the needle valve, parts. -
Page 49: Severe Vibration
Reason of failure Troubleshooting 6. Severe vibration Uneven fuel supply for each cylinder; Inspect and adjust fuel supply of fuel some fuel injection nozzles have bad injection pump; repair fuel injection atomization, severe gas leakage and nozzle; eliminate leakage and check compression ratios of cylinders differ the compression pressure for each greatly with each other. -
Page 50: Sharply Increase Of Engine Speed
Reason of failure Troubleshooting 9. Sharply increase of engine speed Governor is failed; pull rod is getting Repair governor and its pull rod. stuck at the position of high fuel level. Sliding disk sleeve of governor is Repair it. getting stuck. Adjusting arm is removed from fork. -
Page 51: Appendix 1 Altitude And Air Density
Appendix 1 Altitude and Air Density Barometric Barometric Altitude Air Density (kg/m Pressure Pressure (mmHg) (kPa) 0℃ 5℃ 10℃ 15℃ 20℃ 25℃ 30℃ 35℃ 40℃ 45℃ 101.30 1.29 1.27 1.25 1.23 1.21 1.18 1.17 1.15 1.13 1.11 99.97 1.28 1.25 1.23 1.21 1.19...
Need help?
Do you have a question about the BS-20KVA and is the answer not in the manual?
Questions and answers
What causes low oil pressure?
Low oil pressure in a Bison BS-20KVA can be caused by:
1. Excessively low oil level or poor/thin oil quality.
2. Broken oil pipe, loose pipe joint, or damaged oil pressure gauge causing leakage.
3. Deformation or breakage of the oil pump pressure adjustment spring.
4. Excessively large clearance in the oil pump.
5. Broken oil pump gasket.
6. Excessively large clearance between bearings.
7. Loose or leaking plug screw in the oil passage.
