iHealth Neo BP5S - Smart Blood Pressure Monitor Manual

INTRODUCTION

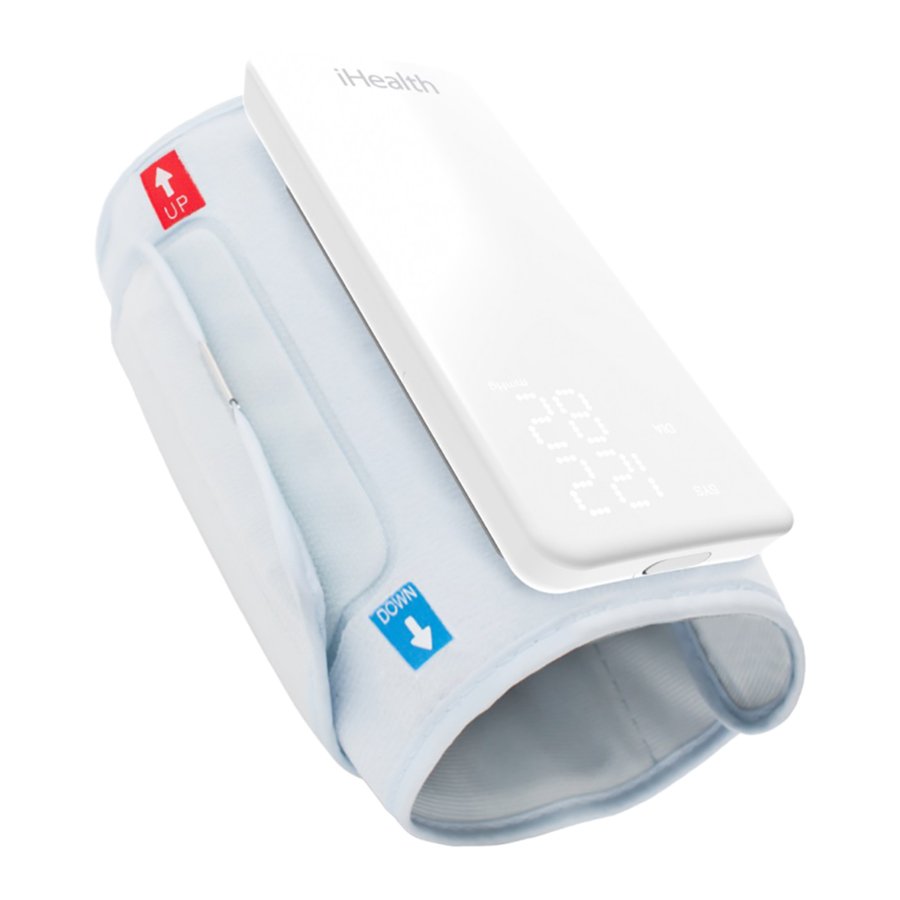

Thank you for selecting the iHealth Neo Smart Blood Pressure Monitor. The iHealth Neo Smart Blood Pressure Monitor is a fully automatic arm cuff blood pressure monitor that uses the oscillometric principle to measure your blood pressure and pulse rate. The monitor works with your mobile devices to track and share vital blood pressure data.

PACKAGE CONTENTS

  • 1 iHealth Neo Smart Blood Pressure Monitor
  • 1 User Guide
  • 1 Quick Start Guide
  • 1 Charging Cable
  • 1 Travel Bag

INTENDED USE

The iHealth Neo Smart Blood Pressure Monitor (Electronic Sphygmomanometer) is intended for use in a professional setting or at home and is a non-invasive blood pressure measurement system. It is designed to measure the systolic and diastolic blood pressures and pulse rate of an adult individual by using a technique in which an inflatable cuff is wrapped around the arm. The measurement range of the standard cuff circumference is 22cm-42cm (8.6" to 16.5").

BLOOD PRESSURE CLASSIFICATION FOR ADULTS

The World Health Organization (WHO) has created the following guide for assessing high blood pressure (without regard to age or gender). Please note that other factors (e.g. diabetes, obesity, smoking, etc.) also need to be considered. Consult with your physician for accurate assessment.

Classification of blood pressure for adults

Classification of blood pressure for adults

BLOOF PRESSURE CLACIFICATION SBP
mmHg
DBP
mmHg
COLOR INDICATOR
Optimal < 120 < 80 GREEN
Normal 120 - 129 80 - 84 GREEN
High-Normal 130 - 139 85 - 89 GREEN
Grade 1 Hypertension 140 - 159 90 - 99 YELLOW
Grade 2 Hypertension 160 - 179 100 - 109 ORANGE
Grade 3 Hypertension 180 110 RED

Note: Consult your physician for proper interpretation of blood pressure results.

CONTRAINDICATION

warning
It is not recommended for people with serious arrhythmia to use this Smart Blood Pressure Monitor.

PARTS AND DISPLAY INDICATORS

PARTS AND DISPLAY INDICATORS

SET UP REQUIREMENTS

Works with both iOS and Android devices: such as iPhone X/iPhone 8/Samsung Galaxy S6 Edge/SM-G9250/Samsung Galaxy Note3 Lite/Motorola Nexus 6
For a complete list of compatible devices, visit our support on page on www.ihealthlabs.eu

SET UP PROCEDURES

Download the Free iHealth MyVitals App

Prior to first use, download and install "iHealth MyVitals" from the App Store or Google Play Store. Follow the on-screen instructions to register and set up your personal account.

Access the iHealth Cloud Account

Your iHealth account also gives you access to the free and secure iHealth cloud service. Go to www.ihealthlabs.com and sign in with the same account.

Power on the Monitor

Press START button for at least 3 seconds until the LED screen display all characters to power on the monitor at the first use. If cannot power on the monitor normally, connect the monitor to a USB port using the charging cable provided until the charging indicator full and steady.

Activate the monitor

  1. Confirm that the "iHealth MyVitals" App had already been installed and login personal account. Scan the QR code can download the App if not downloaded.
  2. Choose "Neo (BP5S)" from the "Select New Device" page.
  3. The monitor cannot take measurements or view measurement history until activate. To active the monitor, press START or M button on the monitor, the monitor shows "000" and Bluetooth indicator flashing.
  4. Place the monitor near your smartphone, and follow the steps of the App to complete connecting.
  5. When a successful connection has been established, the Bluetooth indicator light will light up, means that the device had been activated successfully. Bluetooth can be connected directly without press any button when activated successfully.
  6. Now you can take blood pressure measurement without smartphone and upload data when Bluetooth is connecting.

MEASUREMENT PROCEDURES

Blood pressure can be affected by the position of the cuff and your physiologic condition. It is very important that the cuff should be placed at the same level as your heart.

Body posture

Sitting comfortably during measurement

  1. Be seated with your feet flat on the floor without crossing your legs.
  2. Place your hand, palm-side up, in front of you on a flat surface such as a desk or a table.
  3. The middle of the cuff should be at the level of the right atrium of your heart.

Lying down during measurement

  1. Lie on your back.
  2. Place your arm straight along your side with your hand palm-side up.
  3. The cuff should be placed at the same level as your heart.

Note: Blood pressure can be affected by the position of the cuff and your physiologic condition.
Body posture

Apply the cuff

  1. Pull the cuff end through the metal loop, positioning it outward (away from your body).
  2. Place a bare arm through the cuff and position the cuff 1/2"(1-2cm) above the elbow joint.
  3. Tighten the cuff by pulling it towards your body, securing it closed with the Velcro fastener.
  4. While seated, place your hand, palm-side up, in front of you on a flat surface such as a desk or table. When the left arm (blue arrow points down to the hand) is measured, position the monitor in the middle of your arm so that it is aligned with your middle finger. When the right arm (red arrow points down to the hand) is measured, position the monitor in the middle of your arm so that it is aligned with your middle finger.
  5. The cuff should fit comfortably, yet snugly around your arm. You should be able to insert one finger between your arm and the cuff.

Remember to:

  1. Make sure that the appropriate cuff size is used; refer to the cuff circumference range in the Specifications section of this manual.
  2. Measure on the same arm each time.
  3. Stay still during measurement. Do not move your arm, body or the monitor.
  4. Stay still and calm for one to one and half minutes before taking a blood pressure measurement. Prolonged over-inflation of the bladder may cause ecchymoma of your arm.
  5. Keep the cuff clean. Cleaning the cuff after every 200 times of usage is recommended. If the cuff becomes dirty, clean it with a moistened cloth. Do not rinse the monitor or cuff with running water.

    Left arm measurement

    Right arm measurement

TAKING YOUR BLOOD PRESSURE READING

  1. Press the START button, the monitor will activate and all display characters are shown for self-test. You can check the LED screen display according to the right picture. Please contact the service center if symbol is missing.
    TAKING YOUR BLOOD PRESSURE READING
  2. Then the cuff will be slowly inflated. The blood pressure and pulse will be measured during inflation. Inflation will stop as soon as the blood pressure and pulse rate have been calculated and displayed on the screen. The result will be automatically stored in the memory, and all results will be uploaded to the App automatically upon the next successful Bluetooth connection.
  3. During measurement, you can press the START button to turn off the monitor manually.
  4. After measurement, the monitor will turn off automatically after 60 seconds if no operation. Alternatively, you can press the START button to turn off the monitor manually.

Note: Please consult a health care professional for interpretation of pressure measurements.

BLUETOOTH FUNCTION

Connect to iOS/Android Device via Bluetooth

  1. Enable Bluetooth on your device.
  2. Launch the iHealth MyVitals App from your device.
  3. When a successful connection has been established, the Bluetooth indicator light will light up.
  4. When sync is processing, the sync indicator will flash, when sync is finished, The sync indicator lights up for 2 seconds and then light off.

    Bluetooth connected

    Syncing

    Sync finished

Note: The monitor will turn off Bluetooth function to save power under battery low status (when the monitor can no longer take blood pressure readings), and turn Bluetooth function on when charger is plugged in.

MEMORY FUNCTION

  1. Press the M button, the monitor will display the most recent measurement, display show systolic and diastolic, press M again could display the second recent measurement, and keep press the M button could view the last 10 measurements. Press START button could turn off the monitor.
  2. If the monitor has no memory, Press the M button, the device display "000" at both systolic and diastolic.

SPECIFICATIONS

  1. Product name: iHealth Neo Smart Blood Pressure Monitor
  2. Model: BP5S
  3. Classification: Internally powered; Type BF applied part; IP22, No AP or APG; Continuous operation
  4. Machine size: approx. 141.5 mm × 60.5 mm × 19 mm (5.57' x 2.38' x 0.75')
  5. Cuff circumference: 22cm-42cm (8.66' to 16.54')
  6. Weight: approx. 240g (8.47 oz) (including cuff)
  7. Measuring method: Oscillometric method, automatic inflation and measurement
  8. Memory volume: 200 times with time and date stamp
  9. Power: DC:5.0V1.0A, Battery: 1*3.7VLi-ion 950mAh
  10. Measurement range: Cuff pressure: 0-300 mmHg
    Systolic: 60-260 mmHg
    Diastolic: 40-199 mmHg Pulse rate: 40-180 beats/minute
  11. Accuracy: Pressure: ±3 mmHg Pulse rate: Less than 60: ±3bpm More than 60 (incl.): ±5%
  12. Wireless communication: Bluetooth V4.1 Class 2 Frequency Band: 2.400-2.4835 GHz
  13. Environmental temperature for operation: 5°C-40°C (41°F -104°F)
  14. Environmental humidity for operation: ≤85%RH
  15. Environmental temperature for storage and transport: -20°C-55°C (-4°F-131°F)
  16. Environmental humidity for storage and transport: ≤90%RH
  17. Environmental pressure: 80kPa-105kPa
  18. Battery life: more than 130 measurements on a full charge
  19. The blood pressure measurement system includes accessories: pump, valve, cuff, LED screen and sensor.

Note: These specifications are subject to change without notice.

BATTERY HANDLING AND USAGE

The battery charge will be displayed on the LED screen after each measurement. And when the monitor is connected to the "iHealth MyVitals" APP, the battery charge will be displayed in the APP. If the power is less than 25%, please charge the battery.

The monitor will not work until the battery has enough power.

  • When the monitor needs charging, please connect the monitor to a power source.
  • You should charge the battery when the battery is less than 25% charged. Overcharging the battery may reduce its lifetime.
  • When in charging mode, the charging status will be displayed on the LED screen. See the table below for details.
Monitor Status Status Indicator
Charging battery/charge symbol flashing slowly
Fully charged battery/charge symbol steady
Battery charge <25% battery/charge symbol flashing fast
Battery low battery/charge symbol flashing fast

warningDo not change the battery. If the battery can no longer be charged, please contact Customer Service.

warningOvercharging the battery may reduce its lifetime.

warningLithium battery replacement by inadequately trained personnel could result in a hazard such as a fire or explosion.

warningDo not plug or unplug the power cord into the electrical outlet with wet hands. If the AC adapter is abnormal, please change the adapter.

warningDo not use the monitor while charging.

warningDo not use any other type of AC adapter as it may harm the monitor.

The monitor, cable, battery and cuff must be disposed of according to local regulations at the end of their usage.

Note: The battery has limited charge cycles and may eventually need to be replaced by an iHealth service provider. Battery life and charge cycles vary by use and settings.

TROUBLESHOOTING

TROUBLESHOOTING - Part 1

TROUBLESHOOTING - Part 2

CARE AND MAINTENANCE

  1. If this monitor is stored near freezing temperatures, allow it to return to room temperature before use.
  2. If the monitor is not used for a long time, please be sure to fully charge it every month.
  3. No monitor component needs to be maintained by the user. The circuit diagrams, component part lists, descriptions, calibration instructions, or other information which will assist the user's appropriately qualified technical personnel to repair those parts of the equipment which are designated for repair can be supplied.
  4. Clean the monitor with a dry, soft cloth or a moistened and well wrung soft cloth using water, diluted disinfectant alcohol, or diluted detergent.
  5. The monitor can maintain the safety and performance characteristics for a minimum of 10,000measurements or three years of usage, and the cuff integrity is maintained after 1,000 open-close cycles.
  6. The battery can maintain the performance characteristics for a minimum of 300 charge cycles.
  7. It is recommended that if the cuff is used in a hospital or a clinic, it be disinfected twice a week. Wipe the inner side (the side that contacts skin) of the cuff with a soft cloth lightly moistened with Ethyl alcohol (75-90%). Then air-dry the cuff.
  8. It is recommended that product performance be checked every 2 years or after each repair. Please contact the customer service.
  9. The monitor requires 6 hours to warm from the minimum storage temperature between uses until the monitor is ready for its INTENDED USE when the ambient temperature is 20°C.
  10. The monitor requires 6 hours to cool from the maximum storage temperature between uses until the monitor is ready for its INTENDED USE when the ambient temperature is 20°C.
  11. Not servicing/maintenance while the monitor is in use.

warningDo not drop this monitor or subject it to strong impact.

warningAvoid high temperature and direct sunlight. Do not immerse the monitor in water as this will result in damage to the monitor.

warningDo not attempt to disassemble this monitor.

warningBattery replacement should only be performed by a qualified iHealth technician. To do otherwise will void your warranty and possibly damage your unit.

warningCuff replacement should only be performed by a qualified iHealth technician. To do otherwise will possibly damage your unit.

GENERAL SAFETY AND PRECAUTIONS

  1. Read all of the information in the User Guide and other provided instructions before operating the unit.
  2. Consult your physician for any of the following situations:
    1. The application of the cuff over a wound or inflamed area.
    2. The application of the cuff on any limb with intravascular access or therapy, or an arteriovenous(A-V) shunt.
    3. The application of the cuff on the arm on the side of a mastectomy.
    4. Simultaneous use with other medical monitoring equipment on the same limb.
    5. The blood circulation of the user needs to be checked.
  3. Do not use this product in a moving vehicle as this may result in inaccurate measurements.
  4. Blood pressure measurements determined by this product are equivalent to those obtained by professional healthcare practitioners using the cuff/stethoscope auscultation method within the limits prescribed by the American National Standard, Electronic or Automated Sphygmomanometer.
  5. If an Irregular Heartbeat (IHB) is detected during the measurement procedure, the IHB symbol will be displayed in the "iHealth MyVitals" APP. Under this condition, the Smart Blood Pressure Monitor can keep functioning, but the results may be inaccurate. Please consult your physician for accurate assessment. The IHB symbol will be displayed under 2 conditions:
    1. The coefficient of variation (CV) of pulse period >25%.
    2. The difference of adjacent pulse period is ≥0.14s and more than 53 percent of the total number of pulses readings falls within this definition.
  6. Please do not use any cuff other than that supplied by the manufacturer as this may result in inaccurate measurements.
  7. For information regarding potential electromagnetic or other interference between the blood pressure monitor and other devices together with advice regarding avoidance of such interference, please see ELECTROMAGNETIC COMPATIBILITY INFORMATION. It is suggested that the blood pressure monitor be kept 10 meters away from other wireless devices, such as WLAN unit, cell phone, microwave oven, etc.
  8. This product should not be used as a USB device.
  9. If the blood pressure measurement (systolic or diastolic) is outside the rated range specified in part SPECIFICATIONS, the monitor will immediately display a technical alarm on the LED screen. In this case, repeat the measurement ensuring that the proper measurement procedures are followed and/or consult with your medical professional. The technical alarm is preset in the factory and cannot be adjusted or inactivated. This technical alarm is assigned as low priority according to IEC 60601-1-8. The technical alarm does not need to be reset.
  10. This device requires a medical AC adapter with an output of DC 5.0V that complies with IEC60601-1/UL 60601-1 and IEC 60601-1-2/EN 60601-1-2 such as ASSA81a-050100 (input: 100-240V, 50/60Hz, 0.45A; output: DC 5V, 1.0A). Please note that the monitor jack size is USB micro-B. The USB jack should be used for charging only.
  11. Use of Charging Cable other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.
  12. Measurements are not possible in patients with a high frequency of arrhythmias.
  13. The device is not intended for use on neonates, children or pregnant women. (Clinical testing has not been conducted on neonates, children or pregnant women.)
  14. Motion, trembling, shivering may affect the measurement reading.
  15. The device would not apply to the patients with poor peripheral circulation, noticeably low blood pressure, or low body temperature (there will be low blood flow to the measurement position).
  16. The device would not apply to the patients who use an artificial heart and lung (there will be no pulse)
  17. Consult your physician before using the device for any of the following conditions: common arrhythmias such as atrial or ventricular premature beats or atrial fibrillation, arterial sclerosis, poor perfusion, diabetes, pre-eclampsia, renal diseases.
  18. The patient is an intended operator.
  19. Swallowing batteries and/or battery fluid can be extremely dangerous. Keep the batteries and the unit out of the reach of children and disabled persons.
  20. If you are allergic to plastic/rubber, please don't use this device.
  21. Attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

warningThis Monitor is designed for adults and should never be used on infants, young children, pregnant or pre-eclamptic patients. Consult your physician before use on children.
warningThis product might not meet its performance specifications if stored or used outside the specified temperature and humidity ranges.
warningPlease do not share the cuff with any infectious person to avoid cross-infection.

Manufactured for iHealth Labs, Inc.
120 San Lucar Ct.,Sunnyvale, CA 94086, USA Tel: +1-855-816-7705 www.ihealthlabs.com;
iHealthLabs Europe SAS
6 Rue de Ponthieu, 75008 Paris, France support@ihealthlabs.eu www.ihealthlabs.eu

ANDON HEALTH CO., LTD.
No. 3 Jinping Street, YaAn Road, Nankai District, Tianjin 300190, China. Tel: 86-22-60526161
