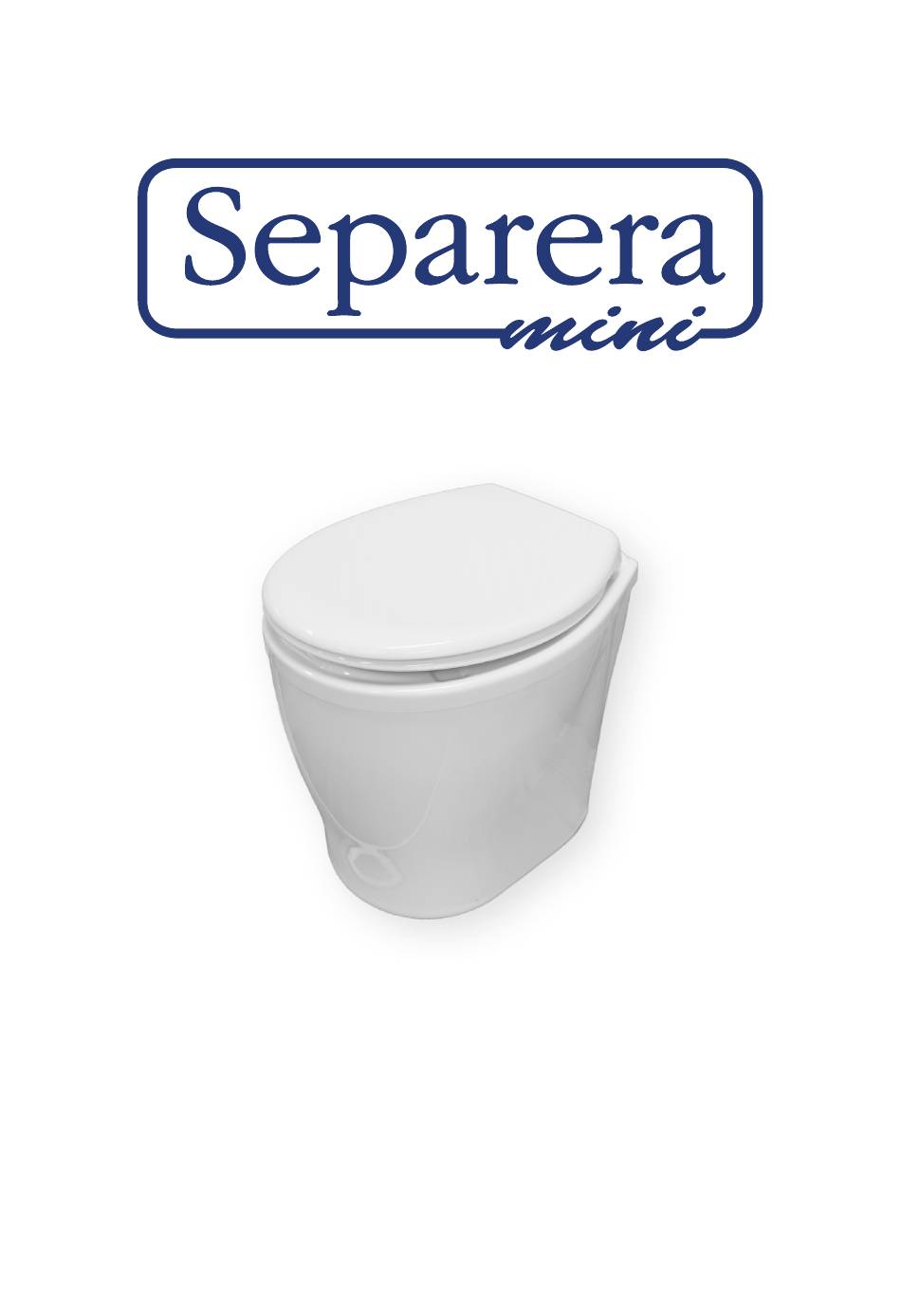

- Page 1 URINE EXTRACTION User Manual IMSE-002-2023.01.12 ecoflo.com.au...
- Page 2 Table of Contents SEPARERA MINI WITH URINE EXTRACTION Contacting Environmental Health The Separera box The installation kit Wall connection kit (not included) Separera Mini cross section INSTALLATION Tools Air supply Assembly Option A – ventilation through external wall Option B – ventilation through the roof...
- Page 3 What does separating waste mean? Well, the toilet is designed so solid waste is separated from the liquid (urine). This means that the Separera Mini has two containers, one for urine and another for solid waste. Both must be dealt with in accordance with local regulations.
- Page 4 Installation Tools • Drill • Holesaw for 55 and 35mm hole • Silicone Air supply Option A Option B 10 mm gap under the door or a vent. Air will be evacuated through the toilet, so cross-draughts must be avoided. Assembly Ventilation can be either through an external wall or up through the roof.
- Page 5 Option B – ventilation through the roof Prior to installation of the Installation Kit and Connection Kit are needed. These can be purchased from the place where the toilet was bought. Lift the upper section (5) of the toilet, remove the urine container (8) and waste container (3) Fasten the wallbracket temporairly on the lower section (7), put the the lower sektion in posision aginst the wall.
- Page 6 Flush the urine bowl with water weekly to reduce salt deposits. • If insects get into the toilet, refer to our information on dealing with insects in our troubleshooting section on our website (ecoflo.com.au). • To clean the toilet, use only mild detergent. Never use abrasive chemical cleaning agents.
- Page 7 PH 1300 138 182 info@ecoflo.com.au ecoflo.com.au ecolet.com.au IMSE-002-2023.01.12 Authorised by: Management Representative...
