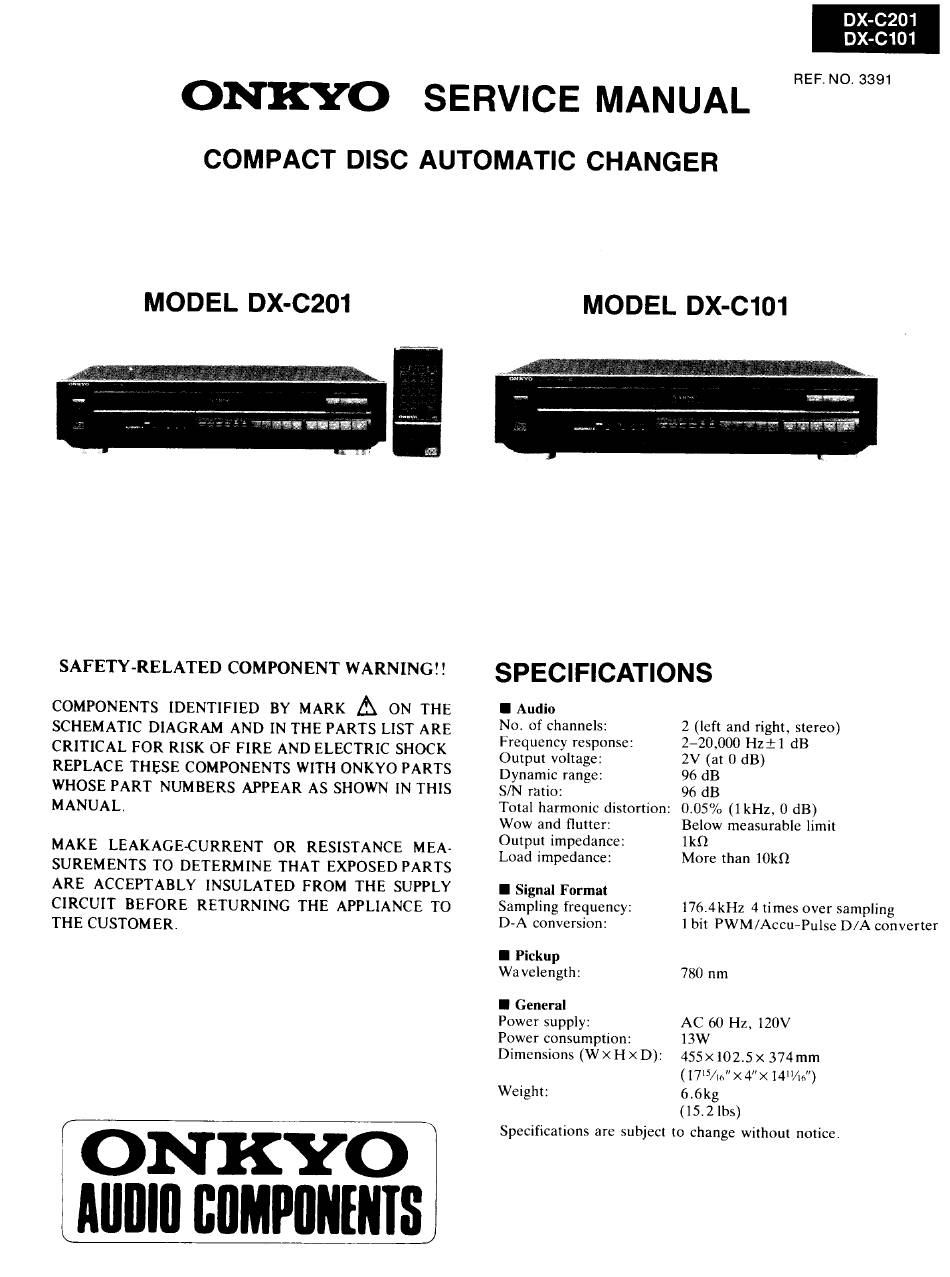

Onkyo DX-C201 Service Manual

DX-C201
1b) Clon lth!
REF. NO. 3391
MODEL DX-C201
SAFETY-RELATED COMPONENT WARNING!!!
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK
REPLACE THESE COMPONENTS WITH ONKYO PARTS
WHOSE PART NUMBERS
APPEAR AS SHOWN
IN THIS
MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE MEA-
SUREMENTS TO DETERMINE THAT EXPOSED PARTS
ARE ACCEPTABLY
INSULATED
FROM
THE SUPPLY
CIRCUIT
BEFORE RETURNING
THE APPLIANCE
TO
THE CUSTOMER.
ONKYO
AUDIO COMPONENTS
MODEL DX-C101
SPECIFICATIONS
@ Audio
No. of channels:
Frequency response:
Output voltage:
Dynamic range:
S/N ratio:
Total harmonic distortion:
Wow and flutter:
Output impedance:
Load impedance:
@ Signal Format
Sampling frequency:
D-A conversion:
@ Pickup
Wavelength:
@ General
Power supply:
Power consumption:
Dimensions (W XH xD):
Weight:
2 (left and right, stereo)
2-20,000 Hz+1 dB
2V (at 0 dB)
96 dB
96 dB
0.05% (1kHz, 0 dB)
Below measurable limit
1kO
More than 10k.
176.4kHz 4 times over sampling
1 bit PWM/Accu-Pulse D/A converter
780 nm
AC 60 Hz, 120V
13W
455 102.5 374mm
(17"5/6"X 4" x 1416")
6.6kg
(15.2 Ibs)
Specifications are subject to change without notice.
