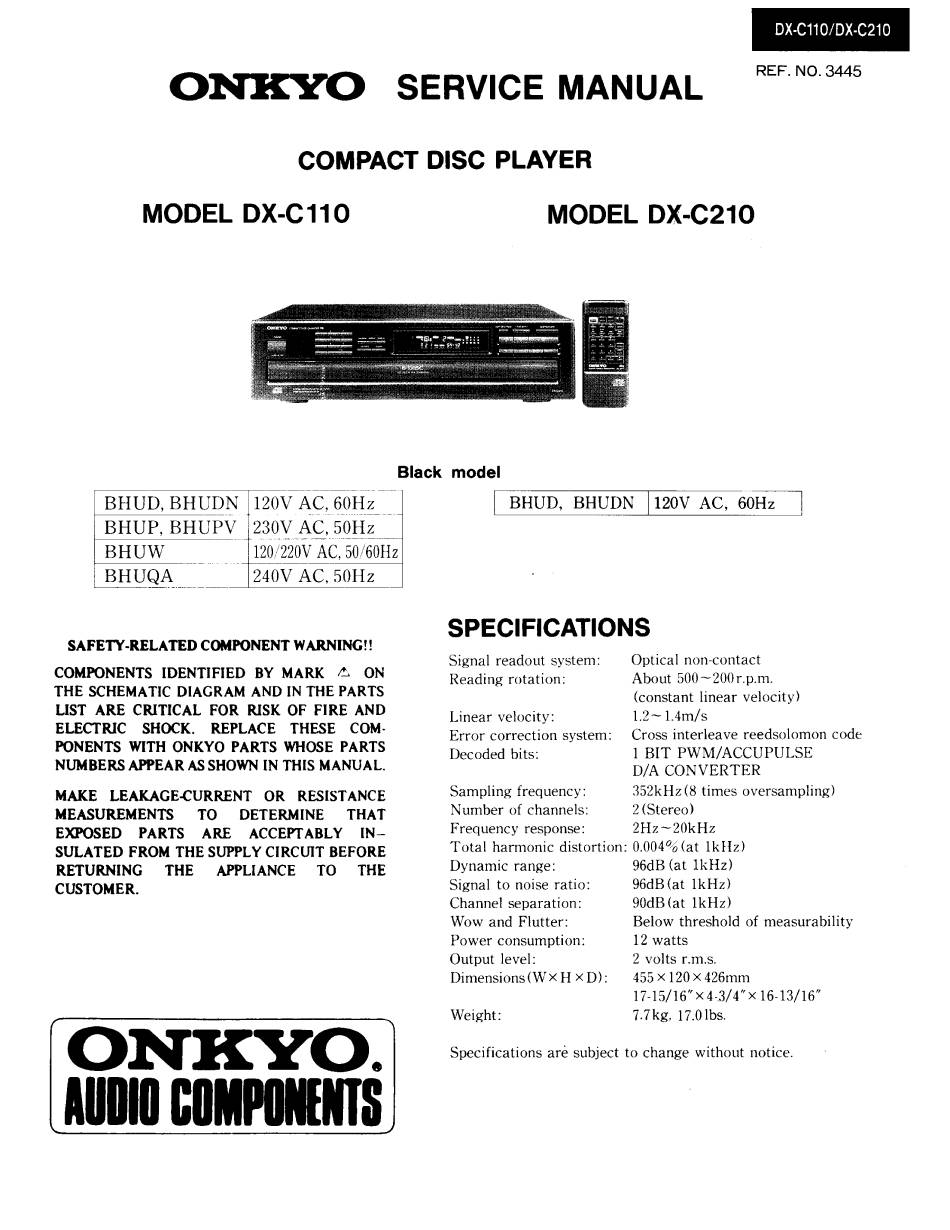

ONKYO SERVICE MANUAL - _
COMPACT DISC PLAYER
MODEL DX-C110 MODEL DX-C210
Black model
BHUD, BHUDN |120V AC, 60Hz | | BHUD, BHUDN [120V AC, 60Hz |
BHUP, BHUPV |230V AC, 50Hz_
BHUW 120/220V AC, 50/60Hz
BHUQA 240V AC, 50Hz
SAFETY-RELATED COMPONENT WARNING!! SPECIFICATIONS
Signal readout system: Optical non-contact
COMPONENTS IDENTIFIED BY MARK "@ ON Reading rotation: About 500~200r.p.m.
THE SCHEMATIC DIAGRAM AND IN THE PARTS (constant linear velocity)
LIST ARE CRITICAL FOR RISK OF FIRE AND Linear velocity: 1.2~1.4m/s
ELECTRIC SHOCK. REPLACE THESE COM- Error correction system: Cross interleave reedsolomon code
PONENTS WITH ONKYO PARTS WHOSE PARTS Decoded bits: 1 BIT PWM/ACCUPULSE
NUMBERS APPEAR AS SHOWN IN THIS MANUAL. D/A CONVERTER
MAKE LEAKAGECURRENT OR RESISTANCE Sampling frequency: 352kHz(8 times oversampling)
MEASUREMENTS TO DETERMINE THAT Number of channels: 2 (Stereo)
EXPOSED PARTS ARE ACCEPTABLY IN- Frequency response: 2Hz~20KHz
SULATED FROM THE SUPPLY CIRCUIT BEFORE Total harmonic distortion: 0.004% (at 1kHz)
RETURNING THE APPLIANCE TO THE Dynamic range: 96dB (at 1kHz)
CUSTOMER. Signal to noise ratio: 96dB (at 1kHz)
Channel separation: 90dB (at 1kHz)
Wow and Flutter: Below threshold of measurability
Power consumption: 12 watts
Output level: 2 volts r.m.s.
Dimensions(WXH XD): 455 « 120 « 426mm
17-15/16" X 4-3/4" x 16-13/16"
Weight: 7.7kg. 17.0 lbs.
Specifications are subject to change without notice.
ONKYO.
AUDIO COMPONENTS
