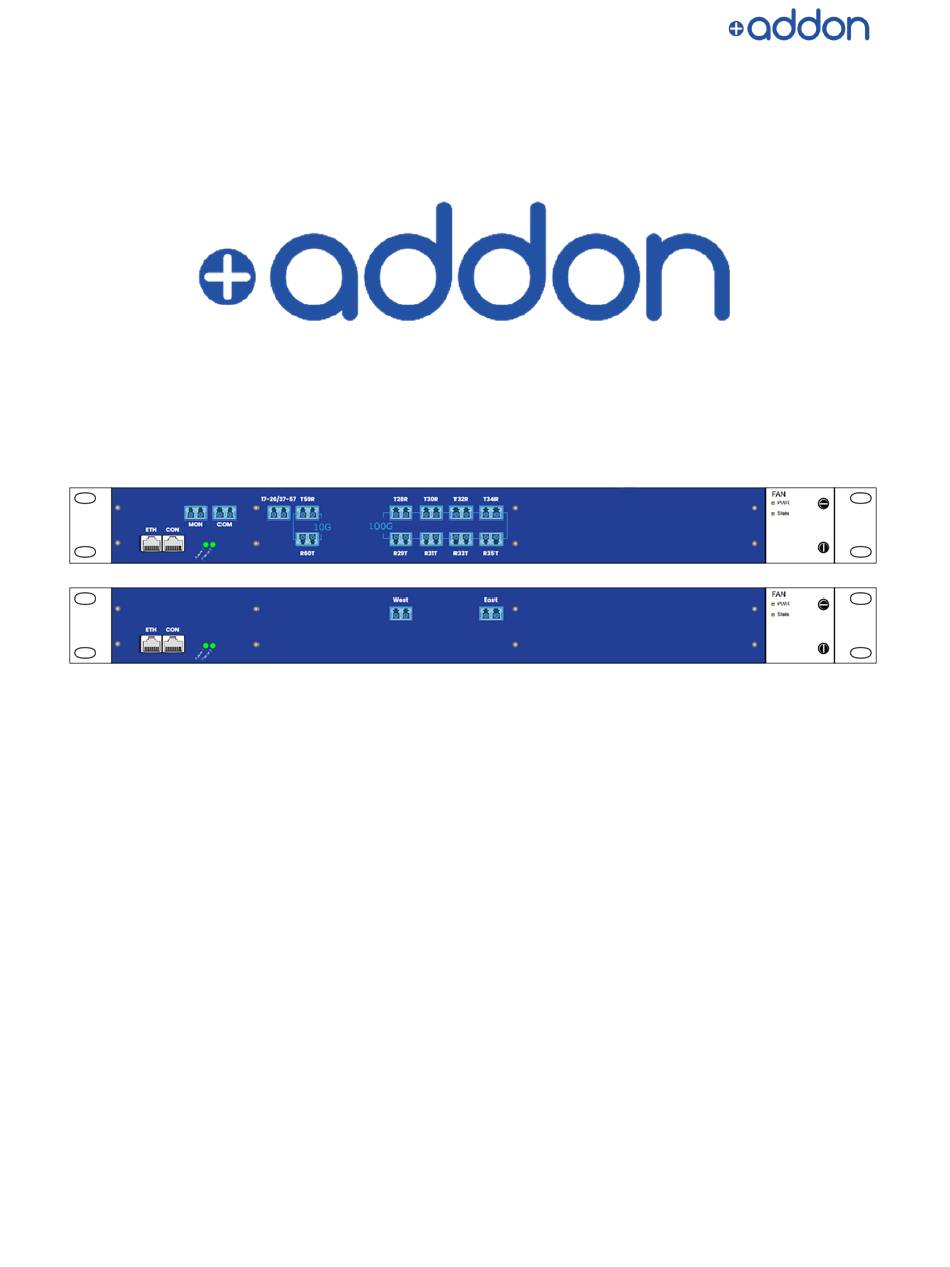

- Page 1 EDFAMUX 10G, 100G, & Simplex User & Installation Manual Version 2.4 October 2023 Page | 1...
-
Page 2: Table Of Contents
Contents Introduction ............................3 Revision History ............................ 4 Warranty & Liability ..........................4 Safety Information ..........................5 Applicable Models and Technical Description ..................8 Configuration ............................8 1. Initial Configuration ........................8 2. Network Configuration ......................10 3. Firmware Upgrade ........................11 4. -
Page 3: Introduction
This manual will first give an overview of specific warning symbols, prior to instructing the user on the technical aspects of the AddOn Networks EDFAMUX. The manual will then cover specific installation procedures while using the AddOn Networks EDFAMUX. Next, the manual will cover the specific risks and considerations when using, installing, or altering the AddOn Networks EDFAMUX. -
Page 4: Revision History
The AddOn Networks EDFAMUX product line complies with relevant Directives and Regulations of the European Union (EU) and the United States of America (US) such as the EMC- and ROHS- Directive, as well as the Reach Regulation. -
Page 5: Safety Information
4. Safety Information CAUTION: IMPORTANT SAFETY INSTRUCTIONS This warning symbol indicates that the reader should be cautious. Please take notice of the fact that when you use an item labelled with this symbol, improper use may cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. - Page 6 Laser Class 1 LASER CLASS 1 This symbol indicates that the equipment complies with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. This symbol indicates that the user should only (dis)connect the equipment in an EPA (ESD Protected Area), while using only certified equipment and taking all necessary precautions.
- Page 7 EDFAMUX. • Always wear appropriate safety eyewear when working with the EDFAMUX. End-of-Life Disposal Please follow all local and national laws and regulations when disposing of the AddOn Networks EDFAMUX after deinstallation. Page | 7...
-
Page 8: Applicable Models And Technical Description
5. Applicable Models and Technical Description The AddOn Networks EDFAMUX is an all-in-one optical transmission device which incorporates the functions of a Mux/Demux, Amplifier/s, and a Dispersion Compensator in order to aggregate multiple optical channels over long distances. It utilizes a non-harmful, Class 1 Laser which sends out light in the non-visible infrared spectrum. - Page 9 Set ethernet ip. Set ethernet mask. Set ethernet gw. Commit. Access the EDFAMUX with a web GUI (this is the management GUI) and use “admin” as the password or continue with the CLI (see command line reference). The Network Configuration section of this manual lists how to assign an ip address to the box.
-
Page 10: Network Configuration
On the EDFAMUX management GUI, verify that the EDFA Post Amp (referred to as POST EDFA on the management GUI) values match the table included in the “Recommended EDFA Values” part of this document. If the output value does not match, adjust the Booster and Post-Amp values accordingly. -
Page 11: Firmware Upgrade
SNMP Configuration The AddOn Networks EDFAMUX uses SNMP version 2c - Please use the provided MIB file or visit the support page. In the Ethernet configuration submenu, you can configure the Syscontact (1), Syslocation (2), SNMP port (3), and the community string (4). -
Page 12: Password Configuration
Figure 3 4. Password Configuration The password configuration page is used to change the password used to access the SETTINGS and FIRMWARE pages. As a note, the password timeout is 15 minutes. Proceed as follows: Input old password (1), new password (2) and (3), and click on “change” (4). Page | 12... - Page 13 Figure 4 Page | 13...
-
Page 14: Command Line Reference
5. Command Line Reference The connector for the serial console conforms to Cisco specification, Baud rate 115200 bits/s, 8 bits, 1 stop bit, no parity or flow control. Commands in require authentication, commands green are get only, and all other commands are get/set. All set commands require the user to be in configure mode. -
Page 15: Http Api Specifications
syslog ↴ community <string> port <int> <ip address> 6. HTTP API Specifications All API requests are unsecured. Only the reboot command is protected with a basic authentication key which must be passed with the header, “Authorization” c.q. “Authorization: xxxxxxxx.” The authentication key is generated from the system password and is shown on the “settings”... -
Page 16: Recommended Edfa Values
The following values are based on a 10G SFP+ sending +1dBm of light power for the 10G 140km and 10G 200km AddOn Networks EDFAMUX models and a 100G QSFP sending -6.5dB of light power for the 100G AddOn Networks EDFAMUX models. The fiber attenuation values in this table are assuming a fiber without splices and a loss of 0.2dB/km. - Page 17 EDFA Operating Mode Typical Noise Figure Saturation Dispersion 100G 120km Symbols 100G 80km 10G 140km 10G 200km Compensator DCM Type Fiber Bragg Fiber Bragg Fiber Bragg Fiber Bragg Grating Grating Grating Grating -1000 to -2300 Dispersion ps/nm 0 to -1300 -1000 -2000 Compensating...
-
Page 18: Drawings, Circuit Diagrams, & Photos
8. Drawings, Circuit Diagrams, & Photos Figure 5 EDFAMUX Interface Block Diagram Figure 6 *QSFP included for connection clarification. Page | 18... -
Page 19: Warranty & Malfunctions/Maintenance
No maintenance is required for the AddOn Networks EDFAMUX when placed in a normal clean environment compliant to the requirements set forth in the specific datasheet applicable to the chosen AddOn Networks EDFAMUX model. -
Page 20: Technical Support Contact Information
Email: techsupport@addonnetworks.com • For the latest product information, contact your local supplier below or visit us online at addonnetworks.com. AddOn Networks US AddOn Networks EMEA Phone: +1 877 292 1701 Phone: +44 1285 842070 Fax: 949 266 9273 Email: salesemea@addonnetworks.com Email: sales@addonnetworks.com...
