ADDON ARM8100 Quick Installation Manual

Adsl 4 port router

ADDON ARM8100 ADSL 4 PORT ROUTER

QUICK INSTALLATION GUIDE

Package Contents

•

1 X ADSL Ethernet Router

•

1 X 12V/1A DC Power Adaptor

•

1 X Quick Installation Guide

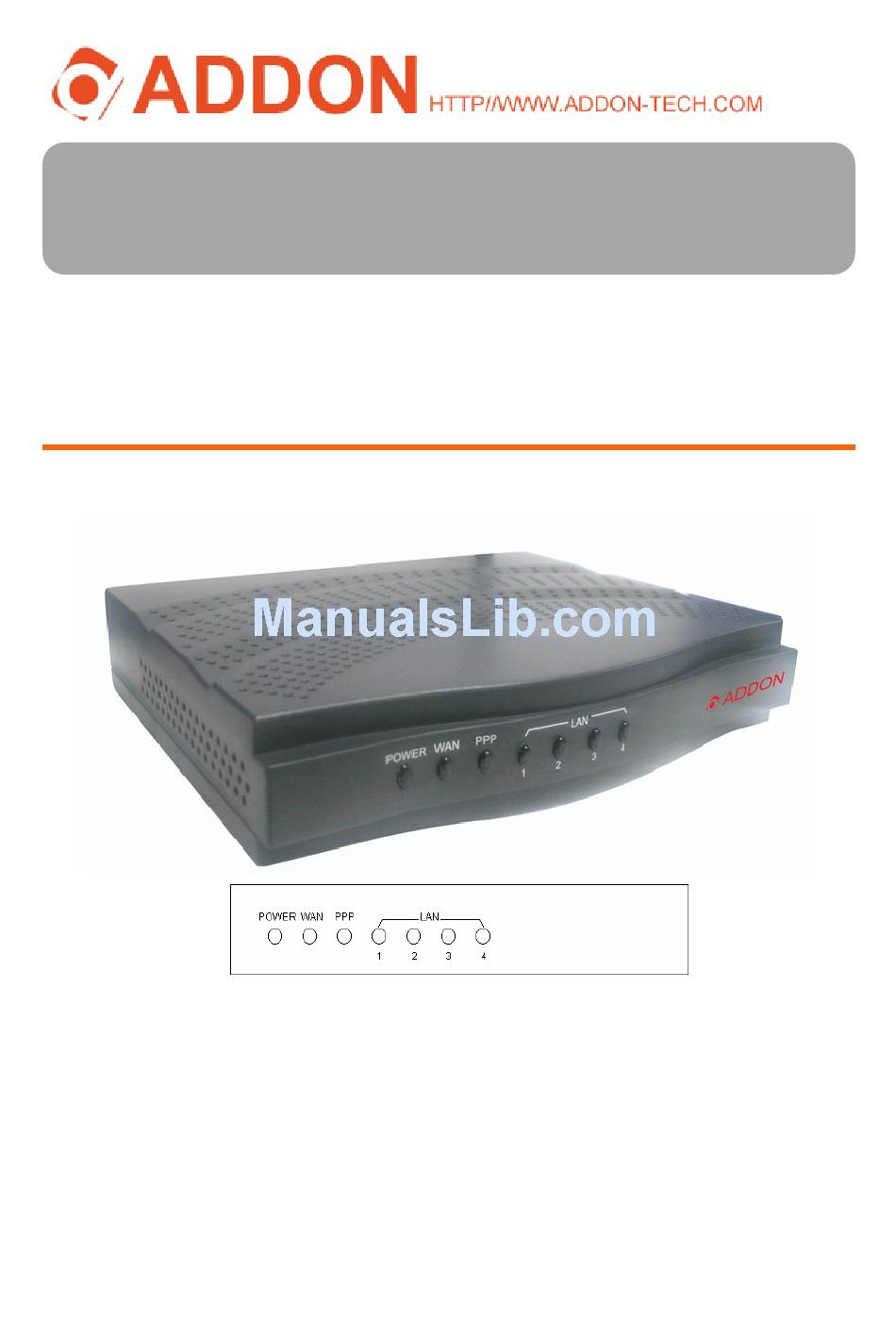

POWER:

The LED stays lighted to indicate the system is power on properly.

WAN:

This LED is lighted when the WAN connection is established and flashes

when the WAN port is sending/receiving data.

PPP:

This LED is lighted when a PPP link is established. (Ethernet models)

LAN:

The LED is lighted when a connection is established to LAN port and flashes

when LAN port is sending/receiving data.

•

1 X CD-ROM

•

1 X Ethernet (RJ-45) Cable

•

1 X Telephone (RJ-11) Cable

Table of Contents

Do you have a question about the ARM8100 and is the answer not in the manual?

Page 1: Package Contents
ADDON ARM8100 ADSL 4 PORT ROUTER QUICK INSTALLATION GUIDE Package Contents • • 1 X ADSL Ethernet Router 1 X CD-ROM • • 1 X 12V/1A DC Power Adaptor 1 X Ethernet (RJ-45) Cable • • 1 X Quick Installation Guide...
Page 2 Proper placement of your router is important to improve your network performance. The figure below is a rough overview of the connection. • Place the router on a flat, stable ADDON ARM8100 ADSL Router surface. • Keep the device clear from metal obstructions and away from direct sunlight.
Page 3: Configuring The Gateway
Important!!! Please remove any ADSL USB Modem Driver or dial-up software. As it may cause connection problem. A: Through ADDON Quick Installation Wizard You can find the ADDON Quick Installation Wizard on the installation CD. Install the ADDON Quick Installa- tion Wizard and double click on the ADDON icon on your desktop.
Page 4 The login dialog window will appear. This device’s default user name is Admin (case sensitive) and password is Admin (case sensitive). Type in Admin (case sensitive) for username and Admin (case sensitive) for password. Once done press Log In button. This first screen that appears is Home screen.
