Victory VBC-100 Specifications

Blast C C hill/Storage R R efrigerator
The Victory Blast Chiller is designed to
reduce the temperature of 2" thick,
uncovered food from 160°F to 38°F in
approximately 90 minutes.
Cabinet
The cabinet front, sides, door and work
surface are constructed of heavy gauge
polished stainless steel to maintain an
attractive appearance after years of heavy
use. Three inches of environmentally
friendly ODP Zero Polyurethane foam
injected insulation throughout the cabinet
ensures the ultimate in energy efficiency.
Doors
The self-closing door is securely mounted
on a hinge, which has a lifetime guarantee.
The door has an easy-to-replace magnetic
balloon gasket to prevent the cold air form
escaping. Door heater is standard to
prevent condensation from forming on the
cabinet front. The interior door liner is
constructed of heavy gauge stainless steel.
Control Panel
Unique E-Z Blast™ 1-2-3 microprocessor
Approvals:
Victory Refrigeration, Inc. I 110 Woodcrest Road I Cherry Hill, NJ 08003 USA I Phone: 856.428.4200 I Fax: 856.428.7299 I E-mail: sales@victory-refrig.com

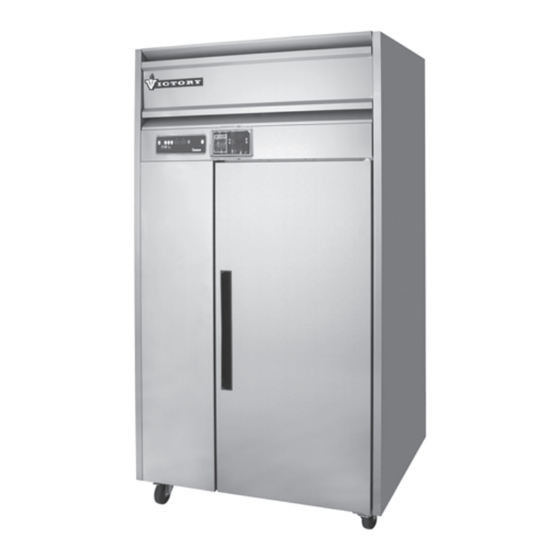

Reach-In Blast Chiller
VBC MODELS —
V V B B C C - - 1 1 0 0 0 0
control panel initiates blast cycles in three
simple steps. Model features built-in alarms
and can control the chilling process with the
temperature probes or a digital timer, which
can be programmed with two preset chilling
times for specific food products. The
controller supports a la carte style blast
chilling.
The cabinet automatically defrosts and
reverts to a +38°F storage mode after the
blast chill cycle.
HACCP Data Logger System records, stores
and prints temperature data for up to 7 days
in accordance with HACCP guidelines. Its
built-in thermal printer provides simplified
documentation and HACCP record keeping.
Model may be used with an optional NAFEM
Data Protocol compliant documentation
software for HACCP monitoring.
transfers data between the kitchen and a
remote Windows® compatible computer
system. This program is available from the
factory and many third-party suppliers.
Project:
Location:
Item #:
Quantity:
VBC-100
Standard Features
• Two Operational Functions:
- Blast Chill Processing Refrigerator
- +38°F Storage Refrigerator
• E-Z Blast™ Microprocessor Control Panel:
- Blast Chill Cycle Controlled Automatically by
Either Food Probes
•Two (2) Preset Chill Times: 90, 240 Minutes
•Soft Chill and Hard Chill Options
•Three (3) Food Probes with Digital
Temperature Indication
- Cabinet Temperature Digital Display
- Food Temperature Digital Display
- Defrost Mode Indicator
- On/Off, Blast Chill Cycle and Cancel Buttons
- Diagnostic Trouble hooting Capability
• High and Low Temperature Alarm
• Power and Component Failure Alarms
• HACCP Data Logger System Records, Stores
and Prints Temperature Data up to 7 Days
- After Termination of Chill Mode
- After Cancellation of Chill Mode
- Daily at Midnight
- Seven (7) Day History on Demand
- Built-In Thermal Printer
• Front Breathing Design
• Stainless Steel Top, Front, Sides, Door
Interior and Work Surface
• Flush Mounted Doors, Anti-Condensation
Heaters and Removable Magnetic Door
Gaskets
• Twelve (12) Adjustable White Resin Coated
Wire Shelves
• Complies with FDA, NSF 7 and HACCP
Guidelines
• Heavy Duty Swivel Casters with Brakes on Front
• No Drain Required
• Large Surface Area Evaporator and High
Velocity Fan Contained in Separate Compartment
• Defrost on Demand and Automatic Defrost
• Environmentally Friendly R404 Refrigerant
• 3"of Environmentally Friendly ODP Zero
Polyurethane Foam Injected Insulation
Optional Features and Accessories
Program
• HACCP Monitoring Program
• Factory Installed Reverse Door Hinging
• 6" Legs in Place of Standard Casters
• Extra Printer Paper
Victory Refrigeration specification sheets
www.victoryrefrigeration.com.
or Digital Timer
s
A
are available online at
