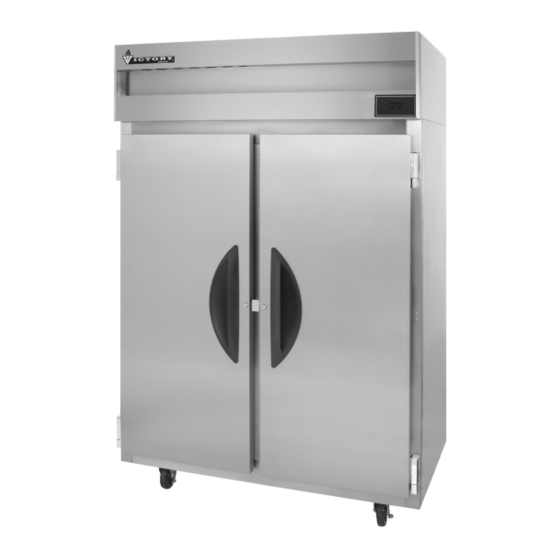

Victory VR-1 Installation, Operation And Troubleshooting Instructions
Reach-in refrigerator and freezer cabinets
Hide thumbs
Also See for VR-1:
- Installation, operating and troubleshooting instructions (17 pages) ,
- Specifications (13 pages) ,
- Specifications (2 pages)
Advertisement
In stall ation , O p e ra t io n a n d
Tr oub lesh o o t in g Ins t ruc t io ns
R e a c h-In Refr ig erat or a nd F re e z e r Ca bin e ts
VR-1, VR-2, VR-3
VF-1, VF-2, VF-3
11 0 Wo o d c r e s t R o a d , C h e r r y H i l l , N J 0 8 0 0 3
Phone: (856) 428-4200 Fax: (856) 428-7299 Website: www.victory-refrig.com
E-Mail: parts@victory-refrig.com
For Models:
RS-1D-S7, RS-2D-S7, RS-3D-S7
FS-1D-S7, FS-2D-S7, FS-3D-S7
order-entry@victory-refrig.com service@victory-refrig.com
Manual Part No. 50707403
Rev. 1A
Print Date: 09/14/10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Victory VR-1
Summary of Contents for Victory VR-1
- Page 1 11 0 Wo o d c r e s t R o a d , C h e r r y H i l l , N J 0 8 0 0 3 Phone: (856) 428-4200 Fax: (856) 428-7299 Website: www.victory-refrig.com E-Mail: parts@victory-refrig.com...
- Page 2 Your Warranty Registration information is located on the next page of this manual. Please complete the card and submit it to Victory Refrigeration within 10 days of installation. Failure to properly register equipment can void the warranty.
-
Page 3: Limited Warranty
You may register online at www.victory-refrig.com, fax this completed page to (856) 673-0038, or copy and mail form below to Victory. NOTE: The following mail-in form or online registration must be filled out and forwarded to Victory by the installer or customer within 10 days after start-up. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS Proper installation is the first step to operation. We recommend that your refrigerator or freezer be installed by an authorized Victory Certified Installer. Receiving Shipment All units are performance tested and thoroughly inspected prior to shipment. Upon leaving the factory, all units are in perfect condition. - Page 6 equipment such as ovens, ranges, heaters, fryers, steam kettles, etc., and out of direct sunlight. Avoid locating the self-contained refrigerator or freezer in an unheated room, or where the room temperature may be below 55°F. Installing Casters or Legs Refrigerators and freezers are shipped with 1/2” single stud mounted legs or casters. Casters / legs must be screwed by hand into the threaded holes located on the case bottom (*Note: Once the caster cannot be turned, using a 3/4”...
-
Page 7: Electric Supply
Electric Supply Wiring should be done by a qualified electrician in accordance with local electrical codes. A separate ground wire must be supplied for all installations. A properly wired refrigerator or freezer will assure proper operation. Electrical supply requirements are on the cabinet serial/data plate. -
Page 8: Installation Checklist
Installation Checklist After the cabinet has been installed, leveled and cleaned as described, refer to the following checklist prior to start-up. Check for proper electrical hook-up. Check exposed refrigeration line connections for leaks. Make sure refrigeration lines are not dented, kinked or rubbing. Check condenser fan for freedom to rotate without striking any stationary members. -
Page 9: Common Replacement Parts
COMMON REPLACEMENT PARTS Part No. Description Quantity 50903601 Heat Exchanger Assembly 1 Section Refrigerator 1 per cabinet 50903901 Heat Exchanger Assembly 2 Section Refrigerator 1 per cabinet 50904001 Heat Exchanger Assembly 3 Section Refrigerator 1 per cabinet 50903701 Heat Exchanger Assembly 1 Section Freezer 1 per cabinet 50903801 Heat Exchanger Assembly 2 Section Freezer 1 per cabinet... -
Page 10: Periodic Maintenance
PERIODIC MAINTENANCE Cabinet Cleaning Victory Refrigeration recommends periodic internal and exterior cleaning as outlined below. Daily Exterior Cleaning Clean surface with a sponge and cleaning solution. Use a non-abrasive cleaner that does not contain chlorine. Polish with a soft cloth, wiping with the grain of the metal. - Page 11 NOT be covered by warranty. Lubrication Unless otherwise specified, all Victory refrigerators and freezers are equipped with permanently lubricated motors. The compressor-motor is a sealed unit and is constantly lubricated when in operation. The condenser and the evaporator motors are equipped with lifetime lubricated bearings which never need to be oiled.
- Page 12 BEFORE CALLING SERVICE GUIDE FOR COMMON PROBLEMS Caution: Disconnect Power Supply Prior To Attempting Any Service! PROBLEM POSSIBLE CAUSE REMEDY Fuse blown or circuit breaker tripped Replace fuse or reset circuit breaker Power cord unplugged Plug in power cord Main power switch turned off Turn power switch on Improper voltage supplied to cabinet(voltage Correct supply voltage (remove extension cords or other equipment on...
- Page 13 NOTES...
- Page 14 1, 2 & 3 SECTION REFRIGERATOR...
- Page 15 1 SECTION FREEZER...
- Page 16 2 SECTION FREEZER...
- Page 17 3 SECTION FREEZER...
- Page 19 11 0 Wo o d c r e s t R o a d , C h e r r y H i l l , N J 0 8 0 0 3 Phone: (856) 428-4200 Fax: (856) 428-7299 Website: www.victory-refrig.com E-Mail: parts@victory-refrig.com...
