Summary of Contents for Leader SC350

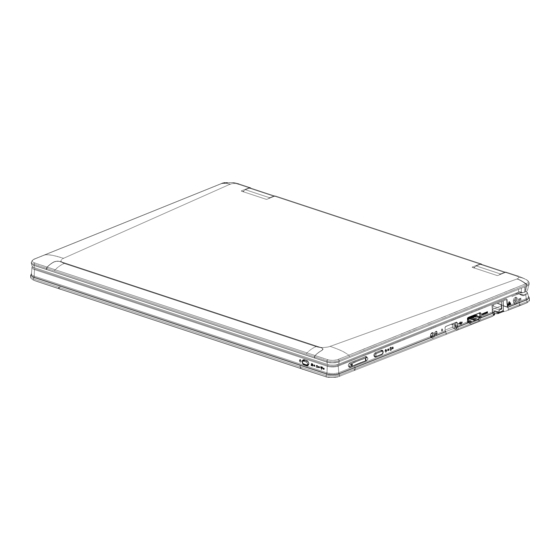

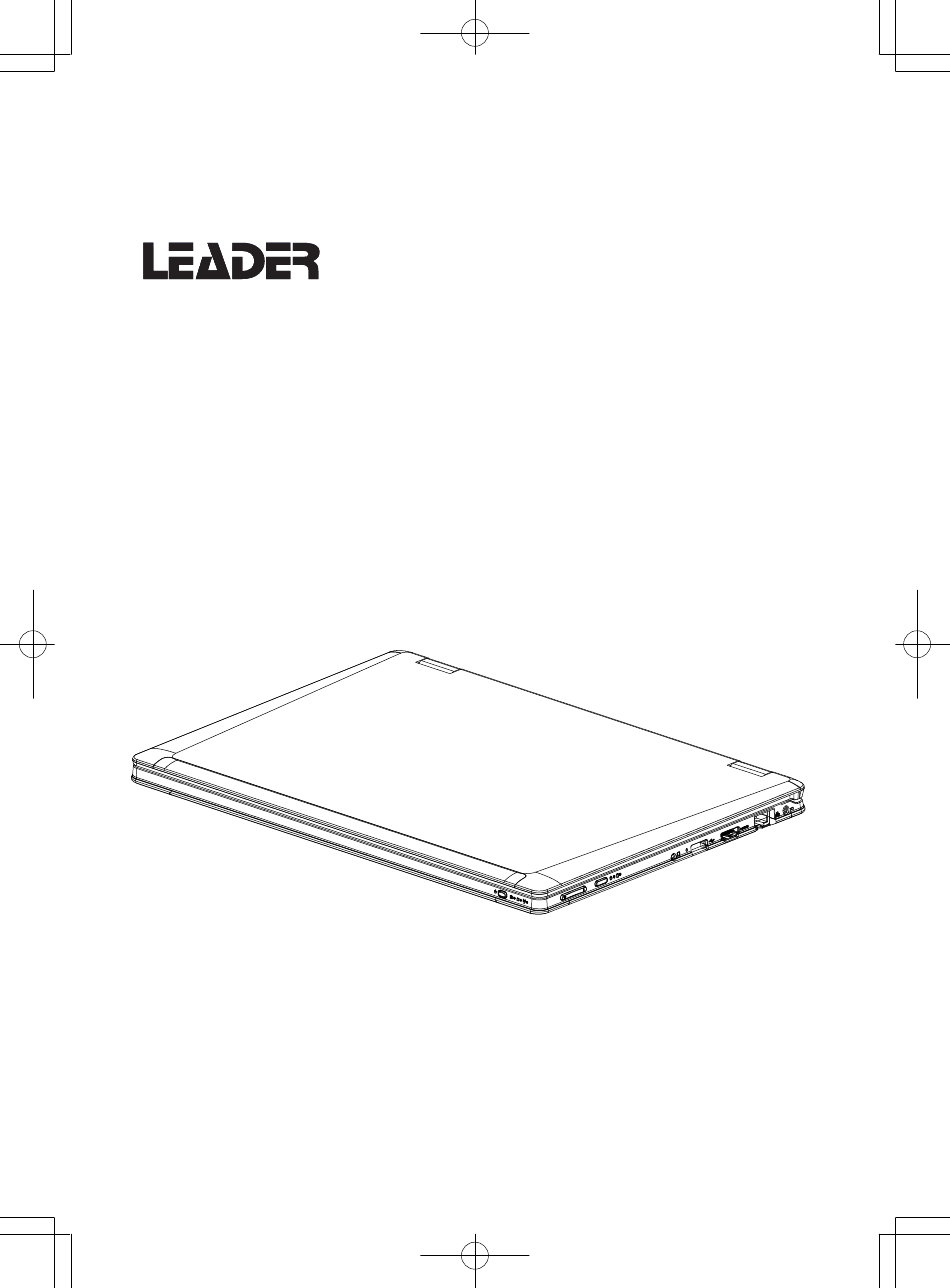

- Page 1 Leader Companion Notebook SC350 User Manual...
-
Page 2: Table Of Contents
CONTENTS BEFORE YOU START ................... 5 Make sure you have everything ..................5 Familiarize yourself with the computer ................ 6 OPENING THE DISPLAY PANEL ................6 FRONT OVERVIEW ....................7 LEFT SIDE OVERVIEW ..................... 9 RIGHT SIDE OVERVIEW ..................10 BACK OVERVIEW .................... - Page 3 TAKING CARE OF YOUR NOTEBOOK PC To prevent possible overheating of the computer's DO NOT use your notebook computer under processor, make sure you don't block the harsh conditions. openings provided for ventilation. DO NOT subject the computer to magnetic DO NOT place on uneven or unstable work fields.
- Page 4 Avoid sudden changes in temperature or humidity DO NOT expose the computer to rain or by keeping it away fromA/C and heating vents. moisture. DO NOT place near fire or other sources of heat. DO NOT slam your notebook shut and never pick up or hold your notebook by the display.
-
Page 5: Before You Start
BEFORE YOU START Make sure you have everything When you receive your notebook PC, unpack it carefully, and check to make sure you have all the items listed below. For a pre-configured model you should have the following: • Notebook Computer •... -
Page 6: Familiarize Yourself With The Computer
BEFORE YOU START Familiarize yourself with the computer OPENING THE DISPLAY PANEL... -
Page 7: Front Overview
BEFORE YOU START FRONT OVERVIEW The following is an overview of the front of the notebook. Camera Touch Panel win8 button Keyboard TouchPad Pointing Device Camera The built-in HD/VGA camera allows you to snap a photo or create a video chat or video conference with just a click. -
Page 8: Left Side Overview
BEFORE YOU START LEFT SIDE OVERVIEW The following is a brief description of the left side of the notebook. Kensington Lock Slot Keyboard lock button USB Port Memory Card Reader Kensington Lock Slot The Kensington lock slot allows you to secure your notebook to an immovable object with an optional security cable. -
Page 9: Right Side Overview
BEFORE YOU START RIGHT SIDE OVERVIEW The following is a brief description of the right side of the notebook. Vol button Status Indicator Lights Microphone USB Port Power Adapter Port Suspend/ Audio Combo Jack HDMI Port LAN (RJ-45) Port Power On Button (Headphone &... - Page 10 BEFORE YOU START Suspend/Power On Button This button turns your notebook on and off or puts it to sleep. (See Suspend/Power On Button in the Power On section for more information.) Status Indicator Lights The Status indicator lights correspond to specific operating modes. These modes are: Suspend/ Power On status, battery/AC adapter status.
-
Page 11: Back Overview
BEFORE YOU START BACK OVERVIEW The following is an overview of the back of the notebook. -
Page 12: Bottom Overview
BEFORE YOU START BOTTOM OVERVIEW The following is an overview of the bottom of the notebook. Fan Outlets RESET Fan Outlets These are open ports for the fan to dissipate heat from the computer's internal components. Do not block or place the computer in such a position that you inadvertently allow the outlet to become blocked. -
Page 13: Getting Started
GETTING STARTED Power Sources Your computer has two types of power source: a Lithium-Ion battery or an AC adapter. CONNECTING THE POWER ADAPTERS The AC adapter provides power for operating your notebook PC and charging the battery. Connecting the AC Adapter 1.Plug the DC output cable into the DC power jack of your notebook PC. -
Page 14: Recharging The Battery
GETTING STARTED RECHARGING THE BATTERY The polymer battery is recharged internally using the AC adapter. To recharge the battery, make sure the battery is installed and the computer is connected to the AC. There is no "memory effect" in The polymer batteries; therefore you do not need to discharge the battery completely before recharging. -
Page 15: Starting Your Notebook
GETTING STARTED Starting Your Notebook POWER ON Suspend/Power On Button The suspend/power on switch is used to turn on your notebook from its off state. Once you have connected your AC adapter or charged the internal Lithium-Ion battery, you can power on your notebook by pressing the suspend/power on button located above the keyboard. -
Page 16: Status Indicators
GETTING STARTED STATUS INDICATORS The status indicator lights correspond to specific operating modes. These modes are: Powervv on/Suspend status, Battery/AC Adapter status, and hard disk drive (HDD) activity. Caps Lock Indicator Hard Disk Drive (HDD) Activity Indicator WIFI Indicator Power On/ Battery Indicator Suspend Status Indicator... - Page 17 GETTING STARTED Suspend Status Indicator This light flashes when the computer is in the Suspend mode. Hard Disk Drive (HDD) Activity Indicator The Hard Disk Drive (HDD) Activity indicator tells you whether your internal hard drive is being accessed and, if so, how fast. Caps Lock Status Indicator Caps Lock indicator show you the keyboard case on or off.
-
Page 18: Using Function Keys
GETTING STARTED USING FUNCTION KEYS Your computer has 12 function keys, F1 through F12. The functions assigned to these keys differ for each application. You should refer to your software documentation to find out how these keys are used. The [FN] key provides extended functions for the notebook and is always used in conjunction with another key. -
Page 19: Using The Touchpad
GETTING STARTED USING THE TOUCHPAD A TouchPad pointing device comes built into your computer. It is used to control the movement of the pointer to select items on your display panel. The cursor Control works the same way a mouse does, and moves the cursor around the display. It only requires light pressure from the tip of your finger. -
Page 20: Troubleshooting
TROUBLESHOOTING Your notebook PC is sturdy and subject to few problems in the field. However, you may encounter simple setup or operating problems that you can solve on the spot, or problems with peripheral devices, that you can solve by replacing the device. The information in this section helps you isolate and resolve some of these straightforward problems and identify failures that require service. - Page 21 MEMO Federal Communications Commission (FCC) Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that maycause undesired operation.
- Page 22 MEMO...
