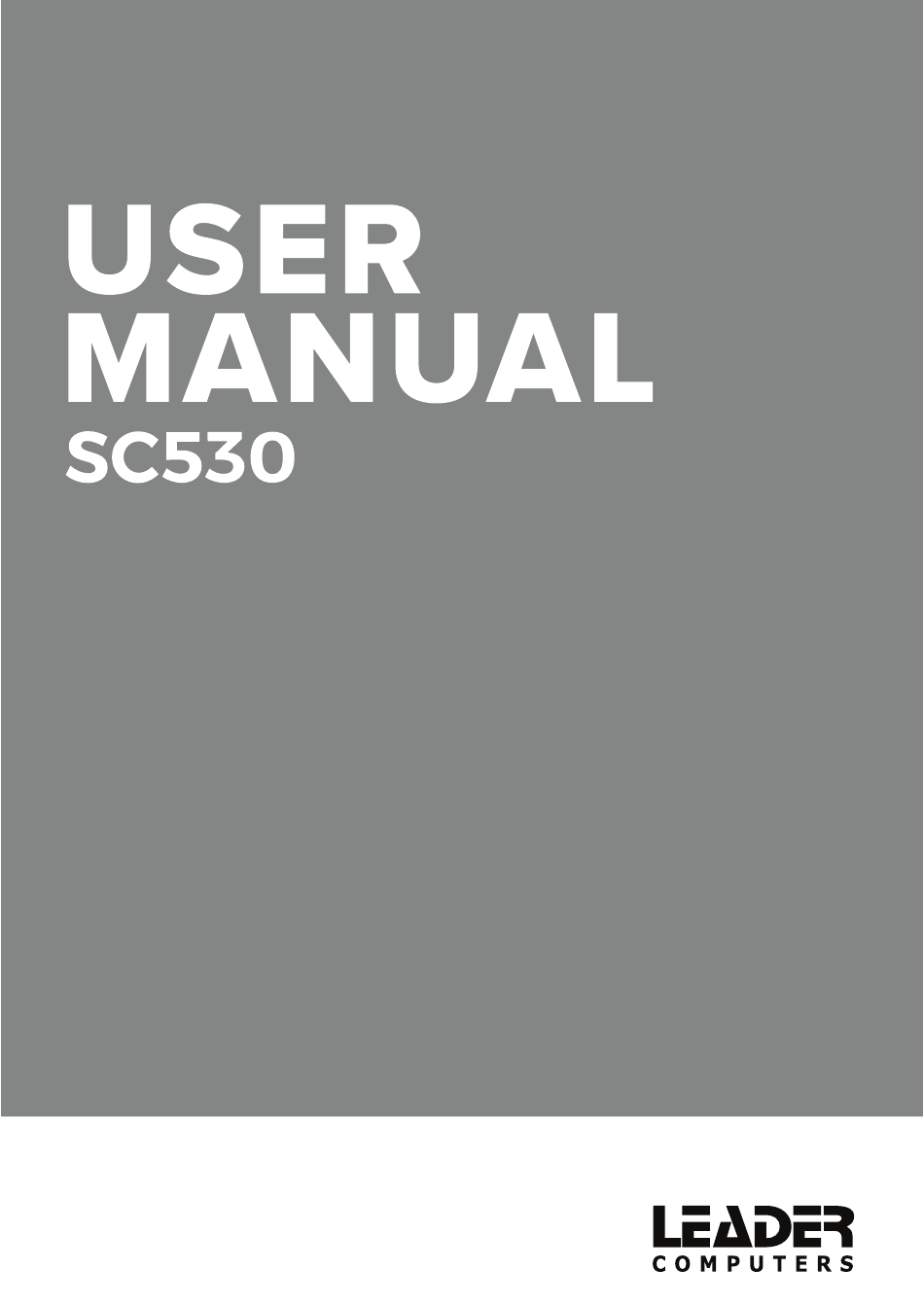

Leader SC530 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC530 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leader SC530

Summary of Contents for Leader SC530

  • Page 3 Regulatory Compliance Information FCC Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 Canadian Department of Communications Compliance Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This device complies with Industry Canada licence-exempt RSS standard(s).
  • Page 5 purchase of this product. Taiwan battery recycling: Translation – please recycle batteries...
  • Page 6 Safety Precautions The following are lists of precautionary measures the students must understand before using this computer inside the classroom or home environment: Do not place near the fire or other sources of heat. Do not expose to magnetic fields. Do not expose to direct sunlight.

  • Page 7: Table Of Contents

    Contents 1. Getting to know your computer ..........1 Package contents ......................1 Views ............................2 Front ..........................2 Left…………………....................3 Right ..........................4 Top and Back ......................4 Function keys ........................5 2. Using your Laptop................ 6 Powering ON/OFF ......................6 Powering on your computer ................
  • Page 8 Removing an App ....................16 Wireless LAN ........................17 Enabling wireless connection ................ 17 Connecting to a wireless LAN ............... 17 Micro SD Card Slot ......................18 To insert your micro SD card ................. 18 To remove your memory card ............... 19 Connecting an External Device ................

  • Page 9: Getting To Know Your Computer

    1. Getting to know your computer Package contents Carefully unpack your box and take out the items listed as below. If any of the items is missing or damaged, contact your dealer immediately: • One laptop • One DC-in adapter •...

  • Page 10: Views

    Views Front Name Function Often for taking self-portraits as well as Webcam for video conferencing. Webcam LED It lights on when the webcam is in use. indicator Often for collection your voice for voice Microphone recognition. The main display of your laptop LCD screen Power on/off your laptop.

  • Page 11: Left

    Left Name Function Plug the adapter to charge the battery. DC-in Charging Shows the battery charging status. indicator Plug your HDMI-cable here HDMI port Plug your USB devices here. USB 3.0 port .This is the latest USB standard port, and its bandwidth is double of that of a USB USB Type-C port 3.0 port.

  • Page 12: Right

    Right Name Function Plug your USB devices here. USB 2.0 port Plug your RJ-45 cable into here to connect your laptop to a wired RJ-45 port network. Lock your laptop to your desk or any stationary object using a Kensington Kensington lock slot lock.

  • Page 13: Function Keys

    Function keys Puts your computer Decreases the volume into sleep mode. level. Decreases the display Increases the volume brightness. level Increases the display Disables or enables the brightness. touchpad. Switches display Press this to play or output between your pause the media file display, external monitor (if connected) and both.

  • Page 14: Using Your Laptop

    2. Using your Laptop Powering ON/OFF Powering on your computer 1. If this is the first time you turn this computer on, connect the AC adapter and fully charge the battery. 2. Press the power button (normally 1 to 2 seconds.). You shall see the power indicator blinking and the screen will light up within 5 seconds.

  • Page 15: Powering Off Your Computer

    Powering off your computer Save all your data before powering your computer off. To power off your system, following the steps below: A. By Start menu 1. Click the Windows icon in the low-left corner of the Desktop. Or, press on the Windows key in the keyboard.

  • Page 16: Putting Your Computer Into Sleep Mode

    B. Using the power button For some reasons if your laptop cannot be powered off by the previous way, you can try to press and hold the power button for at least four seconds. This shall force the laptop to power off itself directly.

  • Page 17: Basic Touchpad Operations

    Basic touchpad operations The touchpad works like a traditional mouse. With it, you can move the cursor and perform left-click, right-click, double-click actions. However, the actual available actions are application dependent. Action name Explanation Left-clicking (or Clicking) Tap once on the touchpad surface or press once on the low-left corner of the touchpad.

  • Page 18: Windows 11 Interface

    3. Windows 11 Interface Desktop and virtual desktop experience The Desktop screen is as shown below and natively provides virtual desktop feature. To launch the feature you can click the virtual desktops button on your taskbar or just press Window key and TAB key of your keyboard in the same time.

  • Page 19: Taskbar

    Taskbar The light blue bar on the bottom of the desktop is called Taskbar. It provides several key features and they are: Start menu   Search box  App shortcuts area  Notification area Start menu To open the Start menu, you can either click on the windows icon (which is also known as Start button) located at the central end of the taskbar or press once on the windows key of the keyboard.

  • Page 20: App Shortcuts Area

    App shortcuts area In the taskbar area, you can put the shortcuts of your frequently used apps. For how to arrange this area, please refer to page 16 Notification area The right part of the taskbar holds several icons that show you the status of your system, as shown below.

  • Page 21: Setup And Connection

    4. Setup and Connection Settings screen To access to the Settings screen: 1. Click the Windows icon at the bottom of the Desktop screen. Or, press on the Windows key in the keyboard. 2. Click the Settings icon. This will open the Settings screen, as shown below...

  • Page 22: Windows Activation

    Next, the following sections will guide you through the basic setup of your windows system. Windows Activation To use all features of your Windows pc, you may need to activate your Windows system. Follow the following steps to register and activate your Windows. 1.

  • Page 23: Pin And Unpin Your App

    Pin and unpin your app Pinning an App to Start menu or taskbar To add an app: 1. Open the Start menu and select <All Apps>. 2. Right-click on the app that you want to appear on your Start menu or taskbar, and an option menu appears.

  • Page 24: Removing An App

    Removing an App To remove an app: 1. Right click the app that you want to remove from your Start menu or taskbar. 2. Click <Unpin from Start> or <Unpin from taskbar> to remove it from your Start menu or taskbar.

  • Page 25: Wireless Lan

    Wireless LAN Enabling wireless connection Open Settings menu and select <Network & Internet>. Select <Wi-Fi> and set the function to ON, as shown below 3. Make sure you have switched the Airplane mode off. To confirm that Airplane mode is disabled, go to the desktop and check the notification area.

  • Page 26: Micro Sd Card Slot

    Note: Some networks require a network security key or password for connection. If necessary, ask the network administrator or the Internet service provider (ISP) for the required information. Micro SD Card Slot You can utilize your micro SD cards as removable disks and conveniently exchange data with digital devices such as a digital camera, digital camcorder, MP3, etc.

  • Page 27: To Remove Your Memory Card

    To remove your memory card 1. Press the card and release. The card will pop up. 2. Pull the card out by holding the end of the card. Connecting an External Device Connecting to the USB port Your computer comes with three USB ports. Once you plug a USB device into any of them, Windows automatically loads a driver for that device.

  • Page 28: Connecting To The Displayport Or Hdmi Port

    Connecting to the DisplayPort or HDMI port You can connect your external display device such as a monitor, TV, or projector to your laptop, if such device has a HDMI port. By doing so, you have a wider view when you give a presentation or watch a video or movie.

  • Page 29: Fingerprint Login (Optional)

    Fingerprint login (optional) If your system comes with the fingerprint login feature, you can follow the following steps to activate this feature: 1. Open the Settings page and select Accounts. For how to open the Settings page, please refer to page 14. 2.
  • Page 30 3. In the Fingerprint field, click “Setup”. This will activate a feature called Windows Hello. 4. Click “Get started” here, and the system will ask you to swipe your finger with the popup box as shown below. The system will request you to repeat this process for several times.

  • Page 31: Battery

    5. Battery Charging your battery 1. Plug the adapter into the DC-in, which you can find on the right side of your laptop. 2. You shall see the battery indicator brinking in blue. 3. When the battery is fully charged, the indicator will light in solid blue.

  • Page 32: Inspecting Your Battery Status

    Inspecting your battery status Taskbar In Desktop, move the cursor to the battery icon in the taskbar. A pop-up dialog box appears and shows you the remaining battery percentage, as shown below. The battery icon reveals the status of your battery, which described as below.

  • Page 33: By Inspecting The Battery Indicator

    By inspecting the battery indicator The power/battery indicator can show you the approximate status of your battery.  Battery Low : Rapidly blinking in red  Battery being charged: Blinking in blue. A battery is an expendable supply, so when using it over a long time, the capacity/battery life is shortened.

  • Page 34: Windows Help And Troubleshooting

    6. Windows Help and Troubleshooting Troubleshooting This section describes some common problems and suggested solutions, and ways to recover your computer from a crash. Be aware that the problems and solutions described here are meant only as a guide. They are not definitive problem solving techniques. For certain problems, you might need help from your reseller or your service provider.
  • Page 35 Screen problems When I turn on the • If the screen is blank, make sure that: computer, nothing - The AC adapter is connected to the appears on the screen. computer and the power cord is plugged into a working electrical outlet. - The computer power is on.
  • Page 36 The computer does not • If your computer is in sleep mode, return from sleep mode connect the AC adapter to the computer, and the computer does then press the key button or the power not work. button. • If your computer is powered-off, connect the AC adapter to the computer, then press the power button to resume operation.
  • Page 37 from the speaker even - The Mute function is off. when the volume is - The combo audio jack is not being used. turned up. - Speakers are selected as the playback device. Other problems Your computer does not • To turn off your computer, press and hold respond.

  • Page 38: Specification

    7. Specification  Intel® SOC Celeron® Processor: N4000/N4100, Base Freq:1.1GHz / Intel® UHD Processor Graphics600  Intel® SOC Pentium® Processor:N5000 Base Freq:1.1GHz / Intel® UHD Graphics605  DDR4 speed up to 2400MHz Memory  RAM socket *1  Support 4GB/8GB ...
  • Page 39  1x1ac Combo (AC3168)  802.11ac 1x1 (5GHz/2.4GHz dual band support)  Bluetooth4.2 LE  M.2 2230 supported Wireless  Optional 2x2ac Combo (AC9560)  802.11ac, 2x2 Wave-2 compliant with MU-MIMO(5GHz/2.4GHz dual band support)  Bluetooth 5.0  M.2 2230 supported ...
  • Page 40  English (US International)  Spanish  Portuguese  Arabic  Turkish  Russian  Simplified Chinese  Thai  Greek  Hungarian French Language  Traditional Chinese  German  Hebrew  Italian  Latin Spanish  Brazil Portuguese ...
  • Page 41  Erp Lot 6  Energy Star Computer Validation v7.0  HDCP...
  • Page 44 40-015PXB1XXX...
