Stakpure TREION OmniaPure xs basic Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Manual
TREION™ OmniaPure xs
basic

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TREION OmniaPure xs basic and is the answer not in the manual?

Questions and answers

Related Manuals for Stakpure TREION OmniaPure xs basic

Summary of Contents for Stakpure TREION OmniaPure xs basic

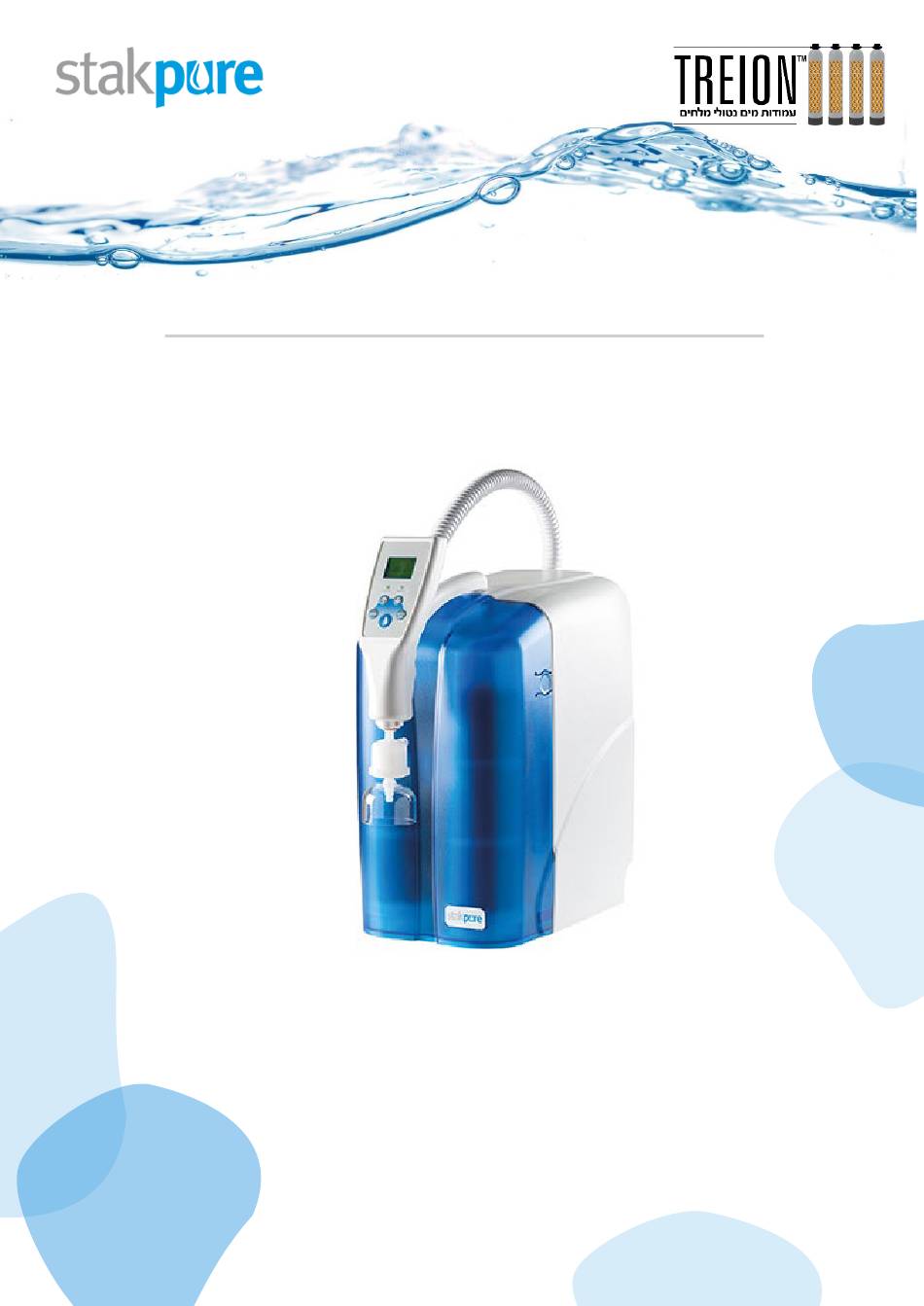

  • Page 1 Operating Manual TREION™ OmniaPure xs basic...
  • Page 2 __________________________________________________________________________________ TREION™ OmniaPure xs basic ; Version as of November 2022 Subject to technical changes...
  • Page 3 __________________________________________________________________________________ TREION™ OmniaPure xs basic ; Version as of November 2022 Subject to technical changes...
  • Page 4 Foreword Dear Ladies and Gentlemen, The stakpure GmbH team thanks you for the trust you have placed in us. By choosing this ultrapure water system from our company, you have opted for an innovative, high- quality and durable product. Before installing and starting up your ultrapure water system, please read the installation and operating instructions in this operating manual carefully.

  • Page 5: Table Of Contents

    Table of Contents User Notes ............................7 Safety instructions ........................... 8 Intended Use ..........................10 Transport and packaging ....................... 11 Delivery package ........................... 12 Technical data ..........................12 Flow charts ............................ 15 Flow chart OmniaPure xs basic ....................15 Flow chart OmniaPure xs UV ....................
  • Page 6 Accesories ..........................37 Faults / Messages ........................38 19.1 Automatic system monitoring ....................38 19.2 Faults table ..........................40 Disposal ............................. 42 EU declaration of conformity ....................43 __________________________________________________________________________________ TREION™ OmniaPure xs ; Version as of November 2022 basic Subject to technical changes...

  • Page 7: User Notes

    Symbols used Warning notices with this symbol indicate a hazard which, if not avoided, could result in death or serious injury. Warning notices with this symbol indicate a hazard which, if not avoided, could result in minor or moderate injury. This symbol indicates a risk with possible property damage.

  • Page 8: Safety Instructions

    2 Safety instructions The safety instructions described below are for your own safety and help to prevent possible damage to the OmniaPure xs system. Read the instructions before installation, commissioning and maintenance and follow them carefully. Danger of electric shock! Improper electrical supply of the OmniaPure xs system can lead to an electric shock! For the electrical supply of the OmniaPure xs system, only use the wide-range power pack included in the scope of delivery.
  • Page 9 Danger of skin and eye injuries! Contact with the disinfectant can lead to skin and eye irritation and/or injuries! Always wear appropriate protective clothing (at least gloves & goggles) when disinfecting the OmniaPure xs system to avoid contact with the disinfectant. Make sure that no disinfectant can escape uncontrolled from the OmniaPure system, check the connection hoses for correct and tight fit.

  • Page 10: Intended Use

    Depending on the country, a safety combination consisting of a backflow preventer and a system separator may have to be available on the building side. A DN 50 floor drain with free drainage is to be provided in the operating room. If there is no floor drain, we recommend using a water monitor to prevent damage to the system and equipment as well as the building.

  • Page 11: Transport And Packaging

    4 Transport and packaging The OmniaPure xs systems are carefully inspected and packaged prior to shipment, however damage may occur in transit. Check the packaging and the system for possible transport damage. If you find any damage, please contact the shipping or transport company responsible for the delivery directly. For transport, only lift the device at holding points 1, 2 and 3.

  • Page 12: Delivery Package

    5 Delivery package The scope of delivery of the OmniaPure xs system consists of the following parts: Position Number Designation OmniaPure xs basic System Table power supply 48V 120W Power cord PE hose d8 2,5m PE hose d8 incl. input protection filter and Water connection adapter R ¾“...
  • Page 13 Water connections Feed water inlet Hose AD 8mm Rinse water outlet Hose AD 8mm Threaded connection for sterile filter G1/4“ Sterile filter outlet Hose tail 6mm Electrical connection Voltage 100 – 240 VAC Frequency 50/60Hz Power consumption (max.) 120W Cell Constants Conductivity measuring cell LF 1 0.01 cm Conductivity measuring cell LF 2...
  • Page 14 Dimensions and Weights OmniaPure xs basic OmniaPure xs basic Height in mm, aprox. Wide in mm, aprox. Depth in mm, aprox. Empty weight in kg approx. Operating weight kg approx. Materials of the components in contact with water Solenoid valve input POM, EPDM Flush solenoid valve POM, EPDM...

  • Page 15: Flow Charts

    7 Flow charts 7.1 Flow chart OmniaPure xs basic 7.2 Flow chart OmniaPure xs basic Designation Designation Pretreatment cartridge LSZ1 Leakage sensor Ultrapure water cartridge Circulation pump Sterile filter UV Photooxidation Hat filter (in the connection hose) Inlet solenoid valve (in block) Flow meter (option) Rinsing solenoid valve (in block) QIA conductivity cell pretreatment...

  • Page 16: System Description

    8 System description 1: Detachable OptiFill dispenser with integrated 5: Space for pretreatment cartridge control unit (not in the picture) 2: Rotating dispenser arm 6: Ultrapure water cartridge 3: Snap closure 7: UV reactor 4: Removable cover hood 8: Dispenser admission __________________________________________________________________________________ TREION™...

  • Page 17: System Connections On The Back

    8.1 System connections on the back Inlet: Feed water connection 2: Connection accessories return Drain: Flushing water connection Power: Power supply connection 1: Connection accessories flow 9 Function description The systems of the OmniaPure xs series prepare pre-treated water into ultrapure water by using several treatment technologies.

  • Page 18: Assembly

    10 Assembly 10.1 Operating environment When selecting the installation location, observe the following requirements: The pressure of the feed water must be between 0.5 and 6 bar. The standing surface must be level. A suitable protective contact socket must be available for the electrical supply of the OmniaPure xs system (see technical data).
  • Page 19 Use the connection accessories to connect the OmniaPure xs system to the feed water connection and to the free drain. Observe the requirements for the feed water (see technical data). Connect the connection hose with integrated hat filter with its R3/4" internal thread to the house feed water connection.
  • Page 20 Finally, open the shut-off valve on the building's feed water connection. Check the hose connections for leaks. Remove the cover of the OmniaPure xs system and place the pretreatment cartridge in the right slot and the ultrapure water cartridge in the left slot. Connect the cartridges with the quick-release couplings by pushing them on.

  • Page 21: Wall Mounting

    10.3 Wall mounting Risk of injury from falling and crushing! The OmniaPure xs system may only be attached to a suitable wall using the optionally available wall holder. Use the wall mount exclusively for the OmniaPure xs system. Make sure that the wall and the fastening material have a sufficient load-bearing capacity of at least 100kg.
  • Page 22 The next step is to attach the wall holder rail to the wall. This requires 6 holes with a diameter of 8mm and a depth of at least 60mm. Drill the holes according to the pattern shown in the "Wall Mount Rail" figure below. Pay attention to a horizontal alignment. Wall mount rail Then insert the dowels into the drilled holes and fasten the wall mounting rail to the wall with the screws so that the two mounting holes are facing upwards.

  • Page 23: Operating Concept

    11 Operating concept The OmniaPure xs system is operated using the five buttons and the display of the OptiFill dispenser. The figure below shows the names of the individual keys. Display LED limit temperature LED conductivity limit value Arrow key up Arrow key down Enter key Menu / Esc button...
  • Page 24 LED limit temperature If the temperature limit value is set to "Off" (see 13.4.2 Setup) or if the current measured temperature value is below the set limit value, the LED lights up green. If the limit value is exceeded, the LED lights up red.

  • Page 25: Commissioning

    12 Commissioning As soon as the OmniaPure xs system is supplied with power, the system starts. When the system is started, the start screen shown here is displayed first. The firmware version of your system is displayed below the system designation.

  • Page 26: Operating

    13 Operating The menu structure, the displays and the setting options of the OmniaPure xs system are described below. Use the system input options described under "11 Operating concept" to navigate in the menu and to change settings. 13.1 Menu structure The diagram below depicts the menu structure of the OmniaPure xs system.

  • Page 27: Main Display

    13.2 Main display The main display (see page 27 Image 3: Main display) appears automatically after switching on the device. It gives you information about the current system status and shows you the value of the conductivity (LF2) measured at the withdrawal point in the set unit (µS/cm or MΩcm) as well as the temperature of the ultrapure water.

  • Page 28: Volume Metered Water Withdrawal (Optional)

    13.3.1 Volume metered water withdrawal (optional) Pressing the withdrawal button takes you from the main display to the withdrawal display. In the withdrawal display you have the option to select one of the preset withdrawal values. You can select one of the preset values (see table below) using the arrow keys and start the withdrawal by pressing the withdrawal button.

  • Page 29: Menu / Settings

    13.4 Menu / Settings If you press the menu / esc button when the main display is open, you get to the menu selection. Here you can use the arrow keys to choose between "System" and "Setup". 13.4.1 System If you have selected the "System" item in the menu selection, use the arrow keys to access the following menu items: "LF1"...

  • Page 30: Setup

    13.4.2 Setup By selecting "Setup" you first get to the PIN entry. After you have entered the correct PIN using the Enter and arrow keys (see 11 Operating concept), the following menu items are available: You can set the limit value for the conductivity LF1, measured after the pretreatment cartridge, via the menu item "Limit value LF1".
  • Page 31 "Temp. Comp.” gives you the option of measuring the conductivity with (ON) or without (OFF) temperature compensation. If the temperature compensation is switched on, this is indicated by "TC" in the main display, if it is switched off, "NTC" is displayed. No function on OmniaPure xs basic devices.
  • Page 32 You have the option of setting the system time and the date via the “Clock” menu item. Proceed as described under "11 Operating concept" to change the setting. The "PIN" menu item allows you to reset the PIN for access to the setup menu.

  • Page 33: Maintenance

    14 Maintenance Regular maintenance and care of the OmniaPure xs system is required to ensure consistently good water quality. For professional and regular maintenance of the OmniaPure xs system, we recommend concluding a maintenance contract with an authorised customer service. If improper maintenance, care and repair work is carried out on the system, the warranty for this system will expire.

  • Page 34: Changing The Cartridges

    14.2 Changing the cartridges The cartridges have to be changed at regular intervals (12 months) or if the limit value you have specified is exceeded for a long time. The start of the interval is the point in time at which the respective filter cartridge was first connected to the system.

  • Page 35: Disinfection

    14.3 Disinfection To protect the OmniaPure xs system from contamination from biological deposits, disinfection should be carried out at regular intervals (12 months). For the implementation you need the disinfection kit article no.: 19200091. Risk of chemical burns! The disinfection of the OmniaPure xs system may only be carried out by appropriately qualified specialist personnel.

  • Page 36: Decommissioning & Dismantling

    15 Decommissioning & Dismantling Decommissioning and dismantling may only be carried out by authorised specialist personnel. If the OmniaPure xs system is to be decommissioned and dismantled, proceed as follows: Disconnect the system from the power supply by pulling out the mains plug Disconnect all hoses from the system connectors.

  • Page 37: Spare Parts

    16 Spare parts R+I Nr. Designation Art. no. Cap filter 31000041 Flow meter (option) 25000070 Conductivity cell pretreatment 14180004 Conductivity cell ultrapure water 14180004 LSZ1 Leakage sensor 50002819 Circulation pump 29006000 UV immersion tube 50003454 UV ballast 26000060 Inlet solenoid valve 50003160 Circulation solenoid valve 50003160...

  • Page 38: Faults / Messages

    19 Faults / Messages 19.1 Automatic system monitoring The OmniaPure xs system automatically monitors multiple system parameters for abnormalities. If one of the monitored system parameters deviates from the respective specification, both an optical and an acoustic error message are issued. In the event of a fault, the display lighting changes to red and, if activated, a warning tone is emitted.
  • Page 39 In the event of a defect in the inlet solenoid valve, the error message "MVIN!" is output. The error display will be reset as soon as the valve is functioning properly again. The error message "MVFL!" indicates a defect in the rinsing solenoid valve.

  • Page 40: Faults Table

    19.2 Faults table Fault Possible cause Remedy System does not start Ensure the power supply No or faulty power supply according to the specifications Display does not function under "Tech. Data". Pre-treatment cartridge is Install a new pre-treatment exhausted cartridge Conductivity LF1 permanently Feed water does not meet the Check the quality of the feed...
  • Page 41 Check the hose connection of System is not receiving feed the feed water supply. Open water the domestic feed water supply. Check the inlet pressure (feed Inlet pressure is too low water pressure) and increase it if necessary. If the leak sensor comes into contact with water, the system No water can be withdrawn inlet valve is closed to prevent...

  • Page 42: Disposal

    20 Disposal Stakpure ultrapure water systems are marked with a "crossed out trash can". This means that according to the European Regulation 2012/19/EU, your old electronic device may not be disposed of with normal household waste. You can hand in your...

  • Page 43: Eu Declaration Of Conformity

    21 EU declaration of conformity __________________________________________________________________________________ TREION™ OmniaPure xs basic ; Version as of November 2022 Subject to technical changes...
  • Page 44 GmbH Auf dem Kesseling 11 D – 56414 Niederahr Ph.: +49 2602 10673-0 Fax: +49 2602 10673-200 info@stakpure.com www.stakpure.de 50003538...
