Laser PJT-BYCBL-040 Quick Start Manual

Quick Start Guide
Laser Backyard Cinema Bundle
WHAT'S IN THE BOX:
Self-Inflatable Screen
• Inflatable screen with built-in blower
• Detachable white movie screen
• Carry Bag
• 6 x tie down ropes
• 6 x tether stakes

ADDITIONAL ITEMS YOU MAY NEED FOR SETTING UP:

1. 2x AAA batteries for the projector remote control
2. Power extension cord with double adaptor
3. HDMI cable
4. 3RCA to 3.5mm AV cable (optional to connect with devices without an HDMI output)

FOR BEST USE, PLEASE NOTE THE FOLLOWING:

When setting up the screen and projector outdoors, please be aware of wind conditions and
obstructions. The projector works best in dark conditions, so other light sources from street lighting,
backyard lights, and mobile devices may impact the clarity of the projected image. For an optimal
viewing experience, we recommend a 120-inch image or less, with the projector placed 3.6 metres
from the screen. A 144-inch screen is possible, however the projector would need to be 4.4 metres
from the screen, meaning brightness and image quality may be compromised.

SETTING UP:

1. Select an area large enough to erect the
projector screen.
PJT-BYCBL-040
Projector
• Projector
• Remote
• AC Power Adapter
• Lens cover
2. Unpack the projector frame and lay it out on
the ground with the front of the screen facing
upwards, and without blocking the air pump.
SCAN FOR MANUAL

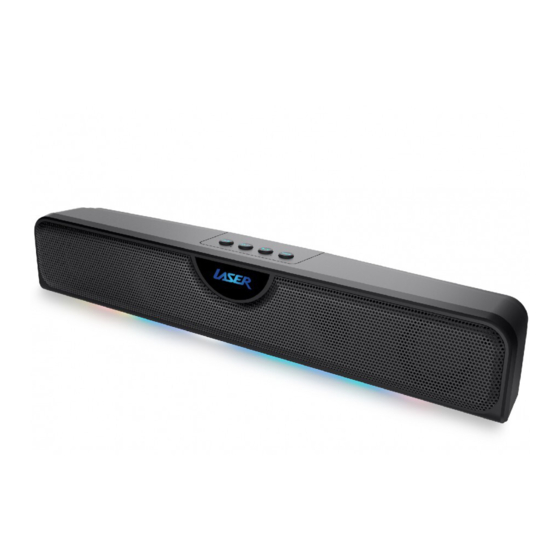

Soundbar
• Mini Bluetooth Soundbar
• USB-A to USB-C cable (for power)
