Owner's Manual
USB to Serial Adapter
Este manual está disponible en español en la página de
Eaton: Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de
Eaton : Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-
Website verfügbar: Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di
Eaton: Tripplite.Eaton.com/support
Model:
U209-005-DB25
Purchased product
may differ from image.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRIPP LITE U209-005-DB25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton TRIPP LITE U209-005-DB25

Summary of Contents for Eaton TRIPP LITE U209-005-DB25

  • Page 1 Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton- Website verfügbar: Tripplite.Eaton.com/support Questo manuale è disponibile in italiano sul sito web di Eaton: Tripplite.Eaton.com/support...

  • Page 2: Package Contents

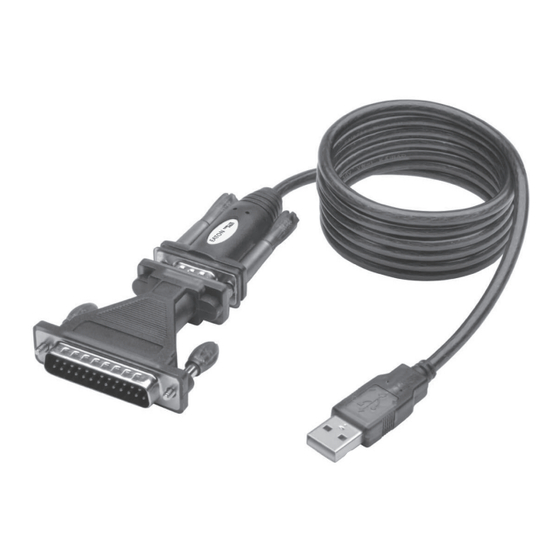

    Package Contents • U209-005-DB25 to Serial Adapter • DB9 to DB25 Adapter • Owner’s Manual Features • Supports data transfer rates up to 250 Kbps • External power not required • Supports remote wake up and power management • Premium double-shielded cable eliminates cross-talk and reduces EMI/RFI interference...

  • Page 3: System Requirements

    (tablets/phones) with USB Host Mode (OTG) support and Android OS version 3.2 and above (see the Android compatibility list file at Tripplite.Eaton.com) • Android-powered devices will require a USB Host Mode (OTG) cable such as Tripp Lite’s U052-06N to connect to the...
  • Page 4 Windows 7 computer. The installation steps will be similar for other Windows operating systems. For non-Windows operating systems, reference the installation files at Tripplite.Eaton.com. Compatible Android devices do not require a driver for use with the U209-005-DB25, but do require that a terminal server application be downloaded.
  • Page 5 Installation 2. When the driver installer program launches, click the Next button to start installation.
  • Page 6 Installation 3. The driver installation begins. A progress bar tracks where you are in the installation process.
  • Page 7 Installation 4. Once the installation process is complete, click the Finish button to close out of the program. 5. (Optional) Connect the DB9 to DB25 adapter to the U209-005-DB25’s DB9 port. 6. Connect the U209-005-DB25 to an available USB port on your computer. Windows will detect the adapter and assign it a COM port upon completing the installation.
  • Page 8 Installation 7. To verify that your adapter has been successfully installed, navigate to your computer’s Control Panel and open the Device Manager screen. The adapter will appear in the Ports section, with its assigned COM port next to it.
  • Page 9 Pinout RS-232 DB9 Pinout DB9/DB25 Adapter Pinout Pin Assignment Conn.1 Conn.2 CONN.1 CONN.2 DB25 MALE DB9 FEMALE...

  • Page 10: Warranty

    Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite. Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

  • Page 11: Regulatory Compliance

    · Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Eaton could void the user’s authority to operate this equipment.
  • Page 12 Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to: • Send old equipment for recycling on a one-for- one, like-for-like basis (this varies depending on the country) •...
