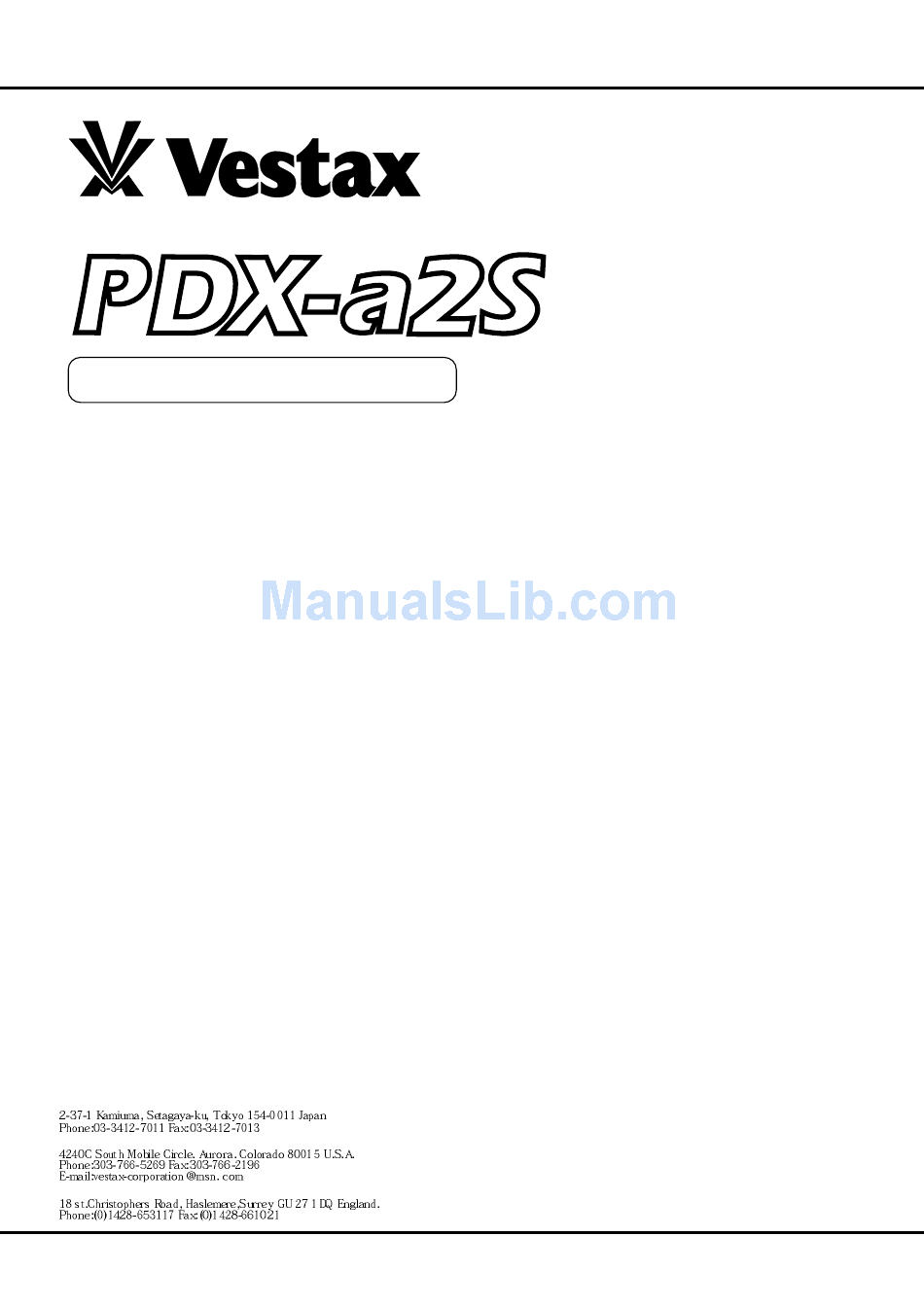

- Page 1 OWNER'S MANUAL OWNER'S MANUAL VESTAX CORPORATION VESTAX MUSICAL ELECTRONICS CORPORATION VESTAX ( Europe ) Ltd.
-
Page 2: Table Of Contents
CONGRATULATION Thank you for purchasing the Vestax PDX-a2S, Professional Direct Drive Turntable. Please read this owner's manual carefully before you start to use yours, so that you will fully understand all of the special features and enjoy the full use of the product. - Page 3 I M P O R T A N T S A F E G U R D S READ BEFORE OPERATING EQUIPMENT This product was designed and man ufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.
-
Page 4: Features
Two start/stop keys are provided, one on each side. Therefore a start/stop key is close at hand which ever side of the mixer the PDX-a2S is set. ●FAST STARTS BY HIGH TORQUE Using high-torque direct motor, the integral motor delivers 1.6kg•... -
Page 5: A..t.(
A.S.T.S(Anti Skipping Tone-arm System) A.S.T.S(Anti Skipping Tone-arm System) has been developed with years of experience and a number of trials, searching for the innovative tone-arm for professional DJ's.This system breaks all of the historic common sense, achieving its non skipping performance in hard scratching. A.S.T.S consists of two inventions, short/straight arm and TH (Tracing Hold) balance system. -
Page 6: Each Parts Name
EACH PARTS NAME F R O N T Tone Arm B a l a n c e W e i g h t Spare Cartridge Stand Turntable C e n t e r S p i n d l e R E A R Remote-control Jack O ut pu t J a c k... -
Page 7: Assembly And Set-Up
ASSEMBLY AND SET-UP Installation of Turntable Platter ○ By placing the turntable platter on the center spindle, the platter adjusts to match the spindle by itself. ○ Place the slip mat on the platter. ○ Extra care should be taken to avoid damaging magnet by dropping it. -
Page 8: Installation And Connection
GND TERMINAL GND CABLE（BLACK） N O T E Be sure to connect firmly the GND terminal to the amplifier or mixer, or a power source HUM will result. PDX-a2S R/Red L/White DJ MIXER PMC-07Pro ○ Adjustment of Overhang As shown in the illustration, overhang indicates the distance from the stylus to end of headhshell. -
Page 9: Adjustment
ADJUSTMENT Adjustment of Horizontal Zero Balance ○ Release the tone-arm from the armrest to free. ○ Turn the balance weight clockwise or counter clockwise until the tone arm is balanced horizontally. N O T E Be careful not to touch your finger to the stylus tip. -
Page 10: Operation
OPERATION ○ Place the record on the turntable mat. ○ Press the power switch button provided at rear panel to turn "ON" position. ○ Remove the stylus protector if cartridge is detachable one. ○ Push the start/stop button, then platter will start to turn. R E M O T E C O N T R O L In case you wish to control the START/STOP with using external equipment like a Foot-switch etc.,... -
Page 11: Specification
SPECIFICATION TURNTABLE MOTOR STARTING UP TIME STARTING TORQUE BRAKING SYSTEM RAMBLE（ S/N RATIO ） SPEED PITCH WOW & FLUTTER TYPE EFFECTIVE LENGTH OFFSET ANGLE TRACKING ERROR STYLUS PRESSURE LIGHT（ OPTIONAL ) SPEED LOCK REMOTE DIMENSION WEIGHT POWER DIRECT DRIVE QUARTZ 0.5sec（... - Page 12 Vestax Corporation...
