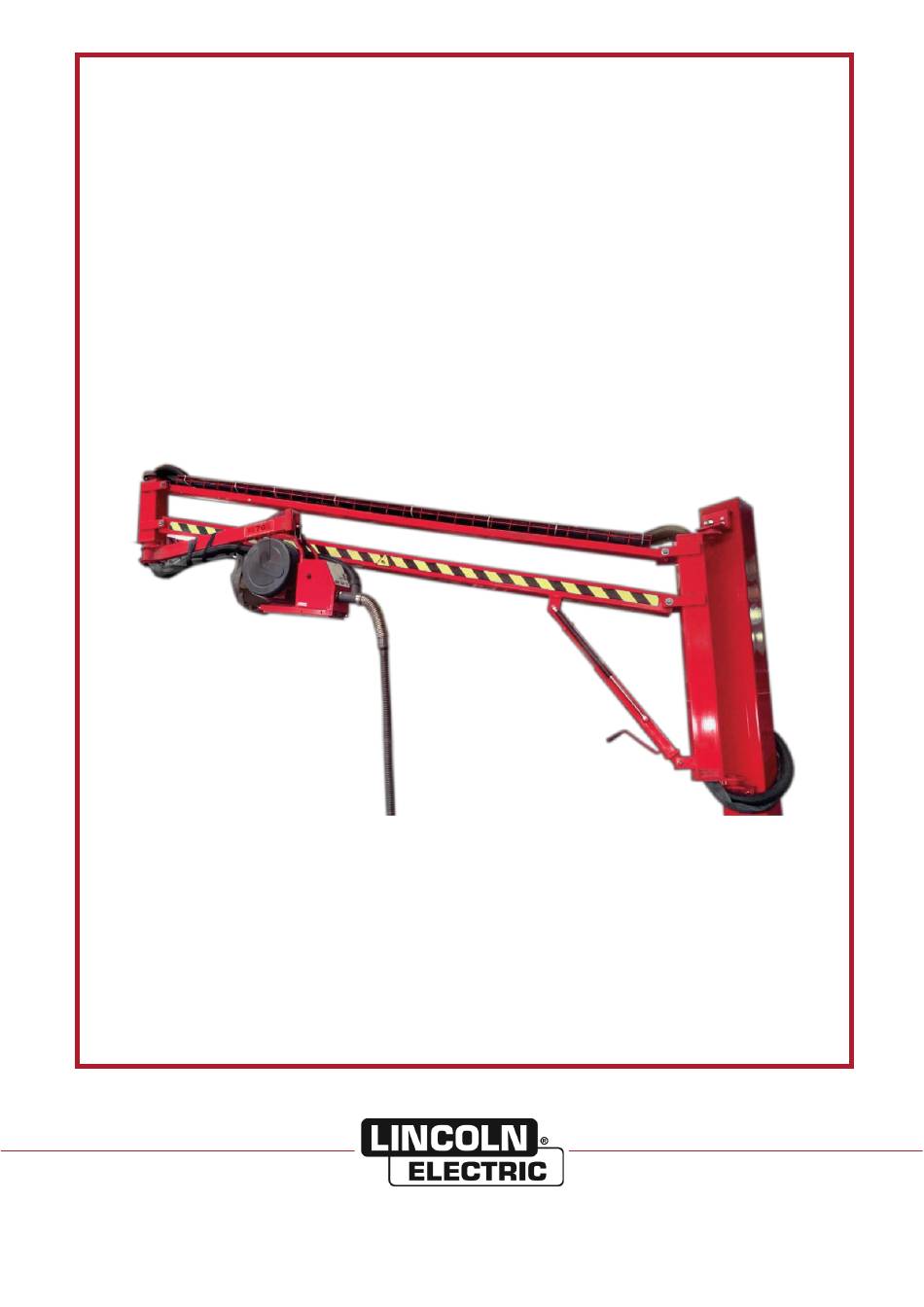

- Page 1 BOOM AEROMIG 3D SAFETY INSTRUCTIONS FOR USE AND MAINTENANCE No W000340212 - W000340213 - W000340214 8695 8025 EDITION : EN Instructions for use REF : REVISION : A DATE : 06-2021 Original instructions...
- Page 2 Thank for the trust you have expressed by purchasing this equipment, which will give you full satisfaction if you follow its instructions for use and maintenance. Its design, component specifications and workmanship comply with applicable European directives. Please refer to the enclosed CE declaration to identify the directives applicable to it.
-
Page 3: Table Of Contents
PERSONAL PROTECTION ..................... 2 C - OVERALL DESCRIPTION ......................4 DESCRIPTION OF EQUIPMENT .................... 4 BENEFITS ..........................4 DRAWINGS OF AEROMIG 3D BOOMS.................. 5 D - INSTALLATION ..........................8 INSTALLATION OF BUNDLE AND FEEDER ................9 E - MAINTENANCE ..........................10 LUBRICATION OF SECONDARY PIVOT ................ - Page 4 8695 8025 AEROMIG 3D...
-
Page 5: A - Introduction
Before the filter is used by a new user, make sure that they have read this manual and understood all the explanations provided. For any further information, please feel free to contact the technical departments of LINCOLN ELECTRIC. MACHINE GUARANTEE This machine is guaranteed for 12 months from the date of purchase. -
Page 6: B - General Safety Instructions
If the filter is replaced, use another one with the same part number (shade number). Persons in the vicinity of the operator, especially any helpers, must be protected by means of suitable screens, anti-UV goggles or, if needed, masks with suitable protective filters (EN 139). AEROMIG 3D... - Page 7 A work permit procedure setting out all the safety measures must systematically be set up. Make sure that ventilation is appropriate, paying special attention to: — under-oxygenation — over-oxygenation — excess fuel gas AEROMIG 3D...
-
Page 8: C - Overall Description
DESCRIPTION OF EQUIPMENT Ergonomic booms AEROMIG 3D with three directional axes are used for fitting out workstations, and make an invaluable contribution to the well-being of the operator. The boom uses an original deformable parallelogram concept to adjust the height of the reel or tool to support, making changing a wire feeder reel easy and safe. -
Page 9: Drawings Of Aeromig 3D Booms
8695 8025 / A DRAWINGS OF AEROMIG 3D BOOMS Boom AEROMIG 3D model 20 - 06 AEROMIG 3D... - Page 10 8695 8025 / A Boom AEROMIG 3D model 30 - 06 AEROMIG 3D...
- Page 11 8695 8025 / A Boom AEROMIG 3D model 43 - 22 AEROMIG 3D...
-
Page 12: D - Installation
Use appropriate protective equipment and devices if you work at a height above 2 metres. The boom AEROMIG 3D is delivered ready for installation. It must be put in place using appropriate handling equipment. The package does not contain hardware for fastening wall brackets, as it would depend on the type of wall or fastening support. -
Page 13: Installation Of Bundle And Feeder
The welding bundles and extraction hose must be placed inside the tubes of the primary and secondary pivot and on the rail along the primary arm. The reel is to be fastened at the end of the boom with the straps supplied, on the fastening tabs provided. AEROMIG 3D... -
Page 14: E - Maintenance
Depending on the use of the boom, the secondary pivot may need to be lubricated to ease the rotation of the secondary arm. We recommend the use of Extreme Pressure Motul 200 type grease. Lubrication point Lubrication point AEROMIG 3D... -
Page 15: Spare Parts
8695 8025 / A SPARE PARTS Description Part number Quantity Secondary pivot ball bearings - 608 2RS Please enquire Jack and gas stays for Boom 20-06 and 30-10 W000379659 Jack and gas stays for Boom 43-22 W000379660 AEROMIG 3D... -
Page 16: Personal Notes
8695 8025 / A PERSONAL NOTES Lincoln Electric France S.A.S. Avenue Franklin Roosevelt 76120 Le Grand Quevilly 76121 Le Grand Quevilly cedex www.lincolnelectriceurope.com AEROMIG 3D...
