| RC-X3 B/E/G

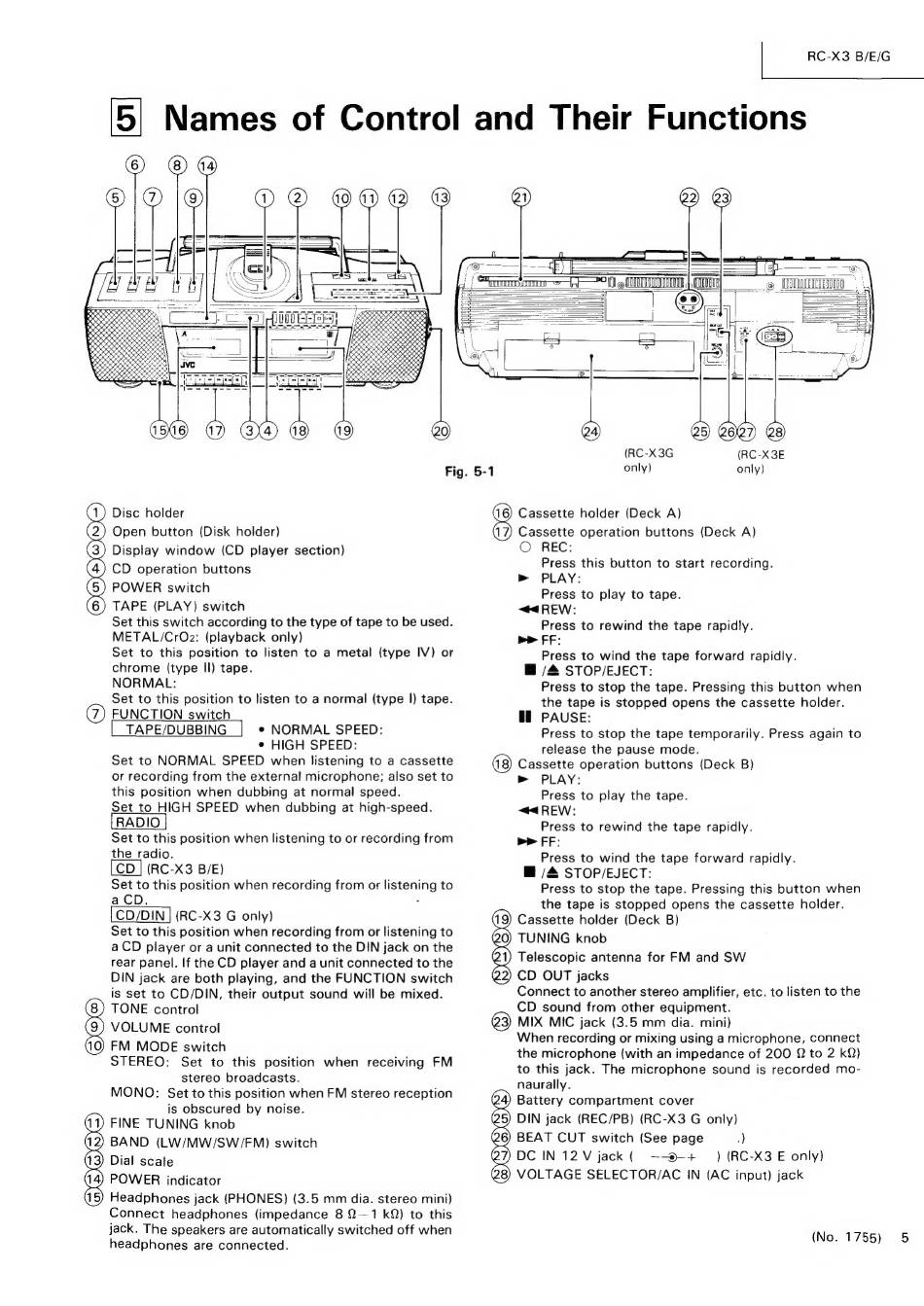

5] Names of Control and Their Functions
@2)
Seen em ————D IMTTINTTNN | ITE
| REEBEILOSESEER
/ sees %
| BERBERS
Fig. 5-1
Disc holder
Open button (Disk holder)
Display window (CD player section)
CD operation buttons
POWER switch
TAPE (PLAY) switch
Set this switch according to the type of tape to be used.
METAL/CrOz2: (playback only)
Set to this position to listen to a metal (type IV) or
chrome (type Il) tape.
NORMAL:
Set to this position to listen to a normal (type |) tape.
FUNCTION switch
TAPE/DUBBING e NORMAL SPEED:
¢ HIGH SPEED:
Set to NORMAL SPEED when listening to a cassette
or recording from the external microphone; also set to
this position when dubbing at normal speed.
Set to HIGH SPEED when dubbing at high-speed.
Set to this position when listening to or recording from
the radio.
[CD ] (RC-X3 B/E)
Set to this position when recording from or listening to
a CD. :
CD/DIN | (RC-X3 G only)
Set to this position when recording from or listening to
a CD player or a unit connected to the DIN jack on the
rear panel. If the CD player and a unit connected to the
DIN jack are both playing, and the FUNCTION switch
is set to CD/DIN, their output sound will be mixed.
TONE control
VOLUME control
FM MODE switch
STEREO: Set to this position when receiving FM
stereo broadcasts.
MONO: Set to this position when FM stereo reception
is obscured by noise.
FINE TUNING knob
BAND (LW/MW/SW/FM) switch
Dial scale
POWER indicator
Headphones jack (PHONES) (3.5 mm dia. stereo mini)
Connect headphones (impedance 8 Q—1 kQ) to this
jack. The speakers are automatically switched off when
headphones are connected.
oO
(2)
(3)
(4)
5)
6)
@
QOS)
GOO)
=
(RC-X3G
only)
(RC-X3E
only)
Cassette holder (Deck A)
Cassette operation buttons (Deck A)
© REC:
Press this button to start recording.
m PLAY:
Press to play to tape.
"@4REW:
Press to rewind the tape rapidly.
mr FF:
Press to wind the tape forward rapidly.
B /& STOP/EJECT:
Press to stop the tape. Pressing this button when
the tape is stopped opens the cassette holder.
HE PAUSE:
Press to stop the tape temporarily. Press again to
release the pause mode.
Cassette operation buttons (Deck B)
> PLAY:
Press to play the tape.
"<4 REW:
Press to rewind the tape rapidly.
bP rr:
Press to wind the tape forward rapidly.
@ /4 STOP/EJECT:
Press to stop the tape. Pressing this button when
the tape is stopped opens the cassette holder.
(19) Cassette holder (Deck B)
@0) TUNING knob
Q1) Telescopic antenna for FM and SW
@2) CD OUT jacks
Connect to another stereo amplifier, etc. to listen to the
CD sound from other equipment.
3) MIX MIC jack (3.5 mm dia. mini)
When recording or mixing using a microphone, connect
the microphone (with an impedance of 200 Q to 2 kQ)
to this jack. The microphone sound is recorded mo-
naurally.
Battery compartment cover
DIN jack (REC/PB) (RC-X3 G only)
BEAT CUT switch (See page )
DC IN 12 V jack ( ~-®-+ _ ) (RC-X3 E only)
VOLTAGE SELECTOR/AC IN (AC input) jack
Qe)
24)
25)
26)
@7)
28)
(No. 1755)
5
