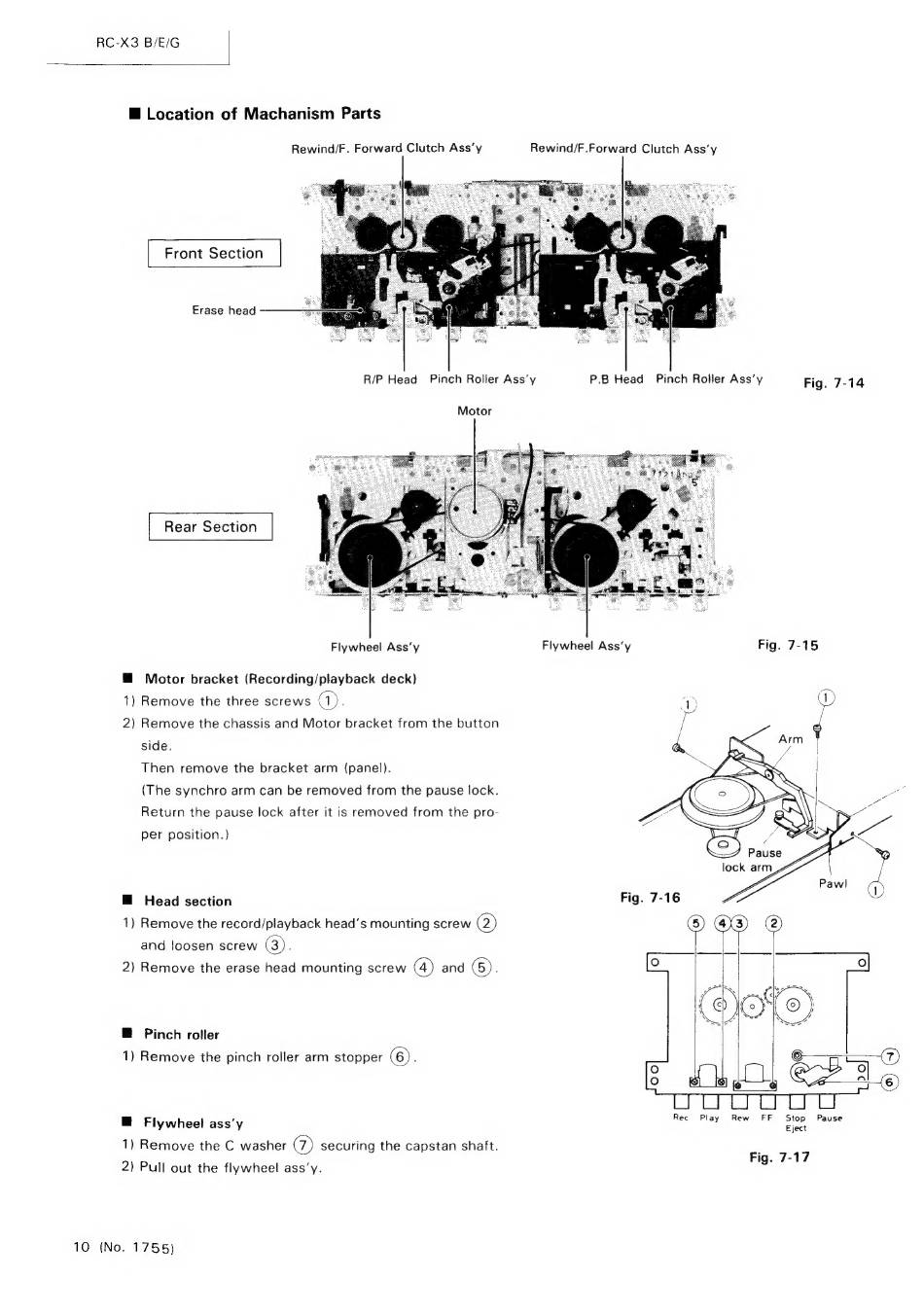

Hi Location of Machanism Parts
Rewind/F. Forward Clutch Ass'y Rewind/F.Forward Clutch Ass'y
Front Section
Erase head
R/P Head Pinch Roller Ass'y P.B Head Pinch Roller Ass'y Fig. 7-14
Motor
Rear Section
'
Flywheel Ass'y Flywheel Ass'y Fig. 7-15
@ Motor bracket (Recording/playback deck)
1) Remove the three screws q).
2) Remove the chassis and Motor bracket from the button
side.
Then remove the bracket arm (panel).
(The synchro arm can be removed from the pause lock.
Return the pause lock after it is removed from the pro-
per position.}
1) Remove the record/playback head's mounting screw (2)
and loosen screw (3).
2) Remove the erase head mounting screw (4) and G).
@ Pinch roller
1) Remove the pinch roller arm stopper (6).
Rec Play Rew FF Stop Pause
1) Remove the C washer @ securing the capstan shaft. Fig 949
ig. 7 -
2) Pull out the flywheel ass'y. ss
