Seitron ELIOS MIDI Quick Manual

TECHNICAL FEATURES
Power supply: 230V~ ±10% 50Hz
Power absorption: <2 VA
Sensors type: 3 x NTC 10K @ 25 °C ±1 %
Sensor operating range: -50 °C .. +200 °C (collector)
-50 °C .. +110 °C (boiler)
Temperature reading range: -20 °C .. 180 °C
Accuracy: ±2 °C
Resolution: 0,1°C (-20°C .. 144,9°C)
1°C (145°C .. 180°C)
Offset adjustment: on S1: ±5.0°C
on S2: ±5.0°C
on S3: ±5.0°C
Installer Password: 0000 .. 9999 (default 0000)
Acoustic Signal: On/Off (default On)
Backlight timing: 20 sec from last keypress
OUT2 Relay Logic: NOR=N.O. REV=N.C.
(default N.O.)
Contacts rating:
OUT 1 relay: 2(1)A max 250V~ (SPST)
Voltage free
OUT 2 relay: 8(1)A max 250V~(SPST)
Voltage free
Alarm relay contacts rating: 4(1)A max 250V~ (SPDT)
Voltage free
Output Signal:
PWM: Amplitude: 10V ±15%
Frequency: 1KHz
Current: 15mA max.
0..10V: Amplitude: 0V..10V ±10%@10V
Minimum load: 10KOhm.
Max allowed PWM / 0...10V
cable length: < 3m.
COMMANDS DESCRIPTION
MENU CONFIRMATION
KEY KEY
RESET CANCEL ABC FUNCTION
KEY KEY KEY
Protection grade: IP 40
Type of action: 1
Overvoltage category: II
Pollution degree: 2
Tracking Index (PTI): 175
Class of protection
against electric shock: II
Rated impulse voltage: 2500V
Number of manual cycles: 50000
Number of automatic cycles:100000
Software class: A
EMC test voltage: 230V~ 50Hz
EMC test current: 34mA
Distances tolerances fault
mode 'short' exclusion: ±0,15mm
Ball pressure test
temperature: 75°C
Operating temp. range: 0°C .. 40°C
Storage temp. range: -10°C .. +50°C
Humidity limits: 20% .. 80% RH
non-condensing
Case: Material: ABS V0 self-extinguishing
Color: Signal White (RAL 9003)
Dimensions: 156 x 108 x 47 (W x H x D)
Weight: ~672 gr.
(version with probe)
~553 gr.
(version without probe)
Installation: Wall-mount
SELECTION KEYS
RED LED
SELECTION KEYS
WARNING!
When the control unit is turned on it will carry out a
diagnosis of the internal circuitry to verify its correct
operation and the red led will flash three times.
If the control unit reveals no anomalies the red led will
remain on, otherwise it will continue to flash quickly
and the display will show the type of error.
TDST24M100SE 042177 200923

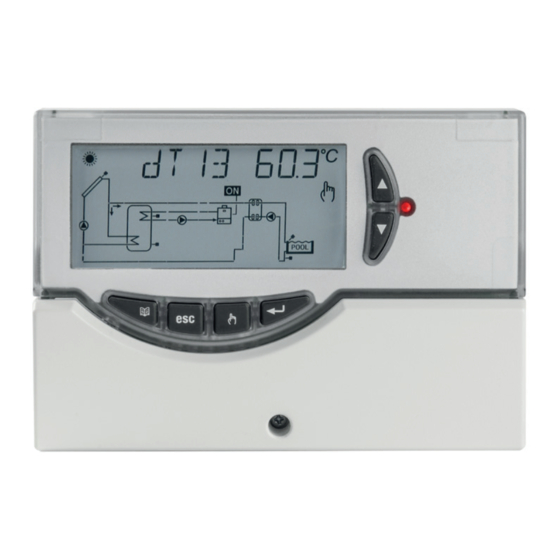

ELIOS MIDI
DIGITAL CONTROL UNIT FOR
THERMAL SOLAR SYSTEMS
SCAN THE QR CODE AND DOWNLOAD THE
COMPLETE USER MANUAL.
WHAT'S IN THE PACKAGE
x 1 (blue cable)
NTC probe 10K Ohm @25°C
±1%, -50°C .. +200°C
x 1
x 6 (white)
Plugs for cable ingress holes
x 6 (black)
Cable retainer if the cables are mounted
from the underside
WARRANTY
The user is guaranteed against the product's defects of conformity according to European Directive 2019/771 as well
as the Seitron warranty terms, available online on the website www.seitron.com.
We invite the user to visit our website and check the latest version of technical documents, manuals and catalogs.
CONTACT US
customer.care@seitron.it
WHATSAPP
+39 329 1444390
x 2 (yellow cable)
NTC probe 10K Ohm @25°C
±1%, -50°C .. +110°C
x 2
ø 5mm wall dowels
x 2
Chipboard screw 4x35 mm
