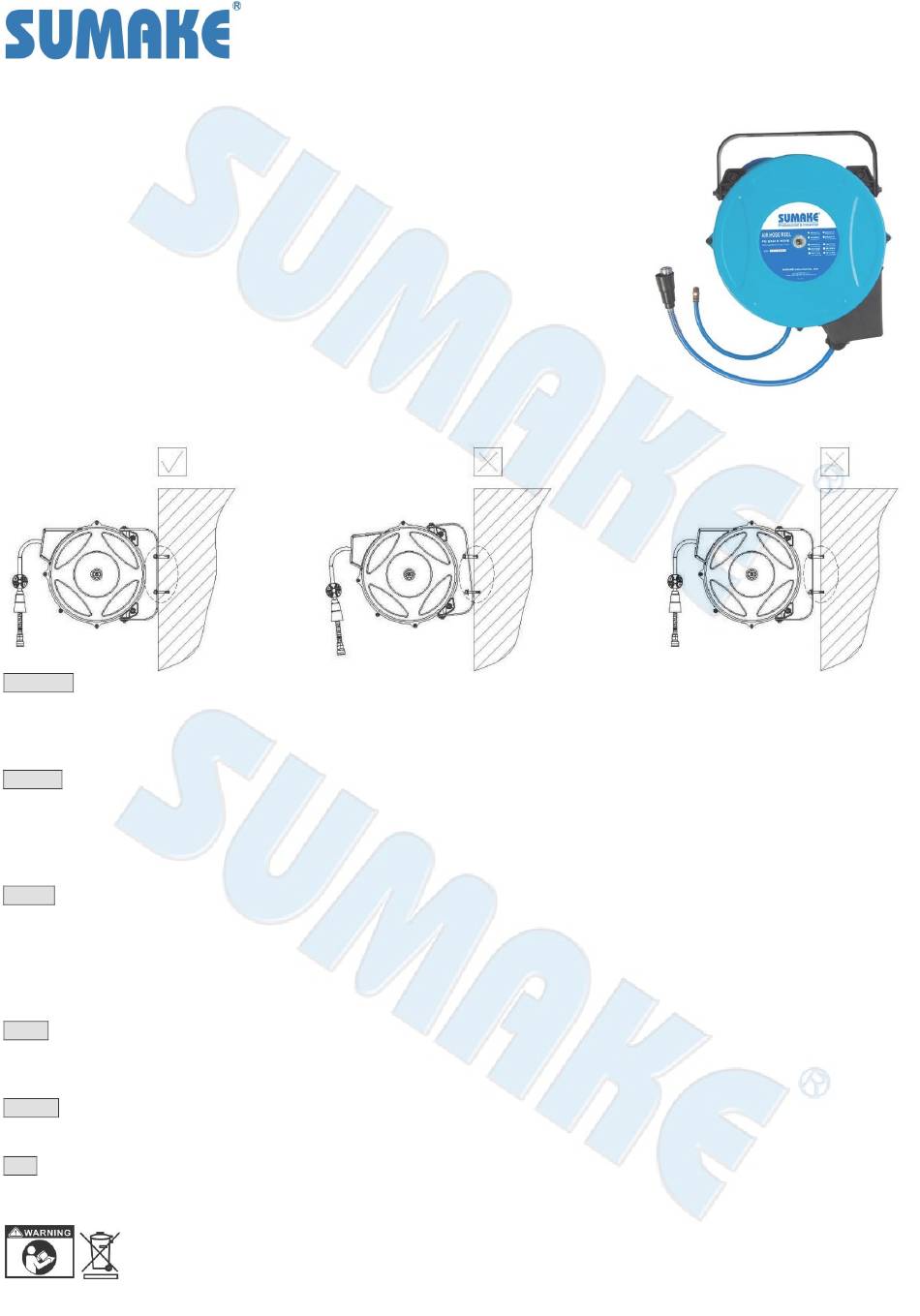

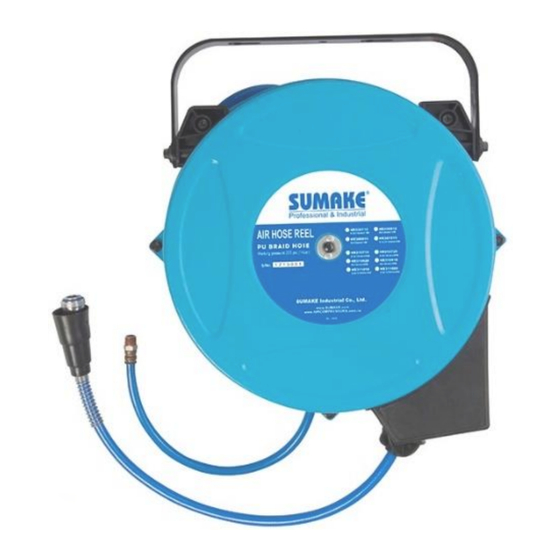

Sumake HR3 Series Manual

HR3 series
Features:
⚫ Steel case increases durability
⚫ Easily installing on the ceiling.
⚫ Installed reel cam rotate within 190°
Specification:
Polyurethane braid air hose
⚫
Working pressure: 200psi(13.7bar)
⚫
Installation
1. Mount the retractable reel to a bench or wall with 2 bolts and nuts.
2. When needed attach the lead hose to the air inlet.
3. Connect the desired quick connector or tool to the outlet fitting. If male thread for outlet, make sure to seal the threads with PTFE type or
o-ring.
Operation
1. To extend hose, pull hose to desired length. The hose reel must be making an audible "click" when released to maintain its length it may
be necessary to pull hose beyond desired length to keep it form automatically retracting.
2. To retract, pull hose until clicking stops. Hose will then automatically retract.
Warning
1. Warning indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
2. Disconnect power and release all pressure from the system before attempting to install, service, relocate or perform any maintenance.
3. Incorrect use like connecting with the heavy fitting or tool while pulling out whole hose may cause hose damage and not retracted.
4. Suggest to use 70~80% of whole length as the working hose length.
Danger
1. danger indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury
2. this product is specifically designed for compressed air service only. Use with any other material (liquid or gas) is a misapplication and not
permitted. Use or injection of certain hazardous liquids or gases in the system (such as oxygen, alcohol or liquid petroleum gas) will harm
the unit and result in a combustible condition or hazardous external leakage. Misapplication will void all warranties and manufacturer's
responsibilities.
Safety
⚫ this manual contains information that is very important to know and understand. This information is provided for safety and to prevent
equipment problems. The help recognize this information, observe the following symbols.
Caution
caution indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
⚫
Note
Notice indicates important information, that if not followed, may cause damage to equipment.
⚫
HOSE REEL
HR3series-I-2109A-HB
