Summary of Contents for EAST OAK EFSG009

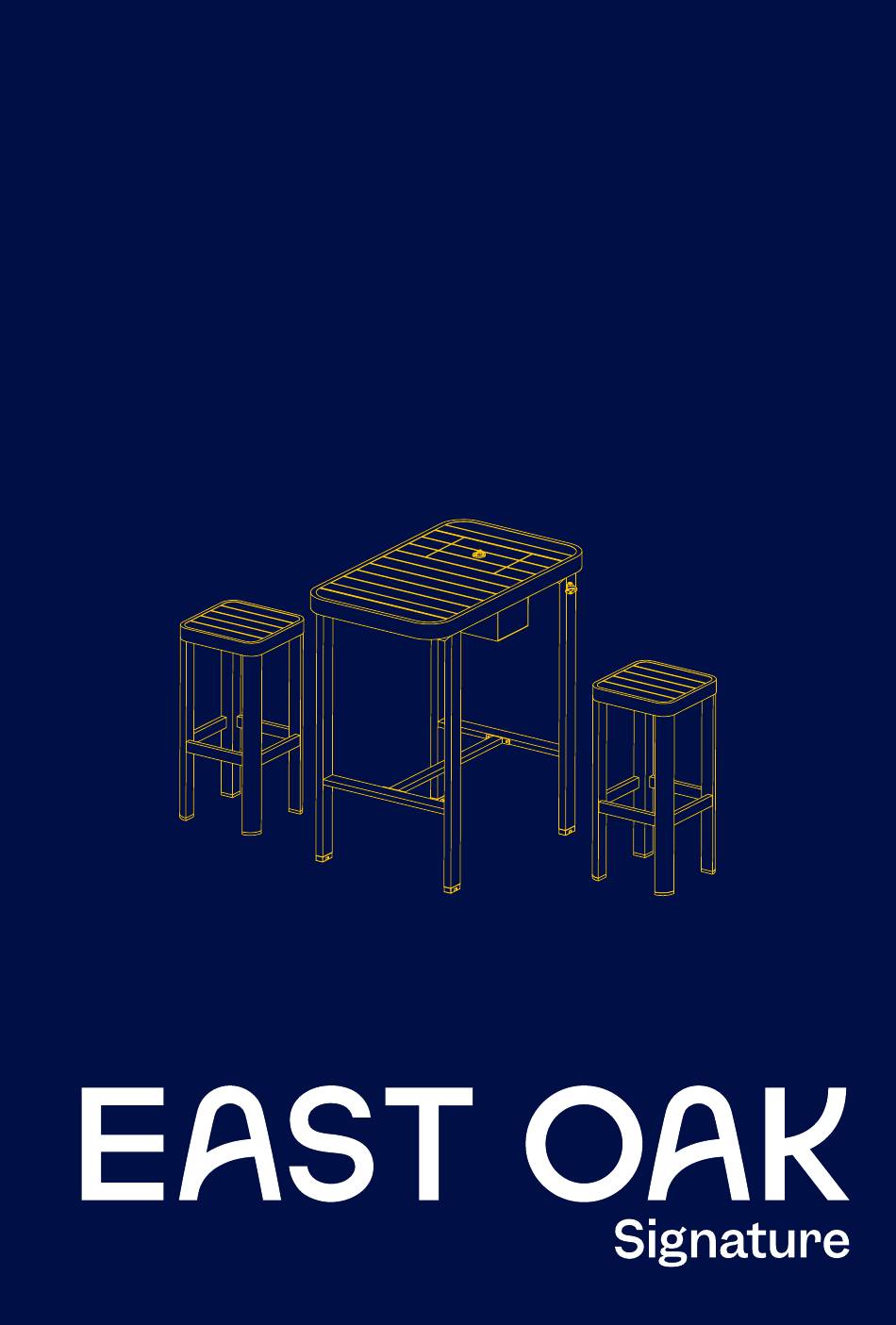

- Page 1 3-Piece Bar Set Owner’s Manual MODEL: EFSG009 EASTOAK.COM OWNER’S MANUAL...
- Page 2 Questions? Comments? Reach out to us for expert support! support@eastoak.com eastoak.com 1-833-EAST-OAK ( USA ) ( 1-833-327-8625 ) Mon-Fri 8am-8pm EST Claim your 3-year warranty Please scan the QR code to view the installation video at eastoak.com/warranty 3-PIECE BAR SET EASTOAK.COM OWNER’S MANUAL...
- Page 3 IMPORTANT CAUTION • Keep the bar set out of the fire, extreme heat, freezing conditions, and inclement weather such as rain, hail, snow, or wind. Before beginning assembly of product, make sure all parts are present. Compare • PLEASE NOTE that the metal paint may come off due to weather conditions. parts with package contents list and hardware contents.
-
Page 4: Parts List
PARTS LIST Chair Leg Seat Seat Support Rod Hex Wrench Plastic cap Flat Washer X 4 PCS X 2 PCS X 4 PCS X 1 PC X 28 PCS + Spare X 2 X 36 PCS + Spare X 1 Table Leg Table leg+Bottle opener hole Table top... - Page 5 PRODUCT ASSEMBLY - CHAIR Install screws Q X 4 PCS K X 4 PCS Align the hole position Fix the seat support rods and the chair leg again with screws, and completely tighten them. Assemble and connect the two seat support A X 2 PCS P X 4 PCS O X 4 PCS...
-
Page 6: Post-Installation Inspection
Align the hole position Install screws Q X 8 PCS K X 8 PCS Assemble and connect the chair legs with the four Fix the seat and the chair legs with screws, L-shaped aluminum sheets under the seat, and completely tighten them. in the meantime, ensure that the hole positions P X 8 PCS O X 8 PCS... - Page 7 PRODUCT ASSEMBLY - TABLE Install screws Align the hole position Q X 8 PCS L X 8 PCS Attach the table legs onto the table top with screws, but don’t completely tighten them. E X 1 PC D X 1 PC Align the upper edge of the table legs with the back of the table top, and then press tightly after P X 8 PCS...
-
Page 8: Tighten Screws
Align the hole position Tighten screws O X 4 PCS G X 1 PC Align the hole position of the table legs with the hole Tighten all screws completely. position on both sides of the table support rod, and then press tightly. Align the hole position P X 4 PCS Install the table support rod on the table legs with... - Page 9 Install the bottle opener Place the ice bucket S X 1 PC R X 2 PCS After aligning the hole positions, use a flathead Put the ice bucket into the table according to J X 1 PC H X 1 PC its shape, and cover it with the ice bucket top.
-
Page 10: Warranty Policy
GUARANTEED 3-YEAR WARRANTY charm of minimalism while conveying a sense of aesthetic. Thank you for choosing East Oak. This product is covered by our company • The aluminum frame with a teak surface provides excellent material quality warranty for up to 3 years from its original purchase date. - Page 11 support@eastoak.com eastoak.com 1-833-EAST-OAK (USA) 3-PIECE BAR SET...
