Summary of Contents for Forno FRHRE5337-30
- Page 1 Installation Guide and User manual IMPORTANT: Read and save these instructions NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference BUILT IN RANGE HOOD...
- Page 2 Thank you for purchasing a FORNO product. Please read the entire instruction manual before operating your new appliance for the first time. Whether you are an occasional user or an expert , it will be beneficial to familiarize yourself with the safety practices, features, operation and care recommendations of your appliance.
- Page 3 30-Day Cosmetic Warranty The Purchaser must inspect the product at the time of delivery. Forno warrants that the Product is free from manufacturing defects in materials and workmanship for a period of thirty (30) days from date of the original retail purchase of the Product.
- Page 4 OTHERS AND THEIR PROPERTY ARISING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT SOLD BY FORNO THAT IS NOT A DIRECT RESULT OF NEGLIGENCE ON THE PART OF FORNO THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS...
-
Page 5: Safety Instructions
SAFETY INSTRUCTIONS This is the safety alert symbols. These symbols alert you to potential hazards that can hurt you and others. All safety messages will follow the safety alert symbols. READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE. • The installation instructions in this manual are intended for qualified installers, service technicians, or persons with similar qualified background. -
Page 6: To Reduce The Risk Of Injury To Persons In The Event Of A Stove Top Grease Fire
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A STOVE TOP GREASE FIRE: • All FORNO range hoods are ETL listed, ensuring all parts were tested for safety and meet industry standards and regulations. NOTE: This ensures all included metal ducting pieces were tested for safety and are flame retardant. -
Page 7: Installation And Use
INSTALLATION & USE NOTE 1: On stainless steel hoods, carefully remove the plastic protective film (if have) from all exterior surfaces of the hood and chimney prior to final installation NOTE 2: At least two people will be required to mount the hood. DESCRIPTION / CONNECTION This range hood should be mounted directly to the support frame mounting, where the support frame flue shall secure to the ceiling joist or framework. -
Page 9: Mount Heights & Clearance

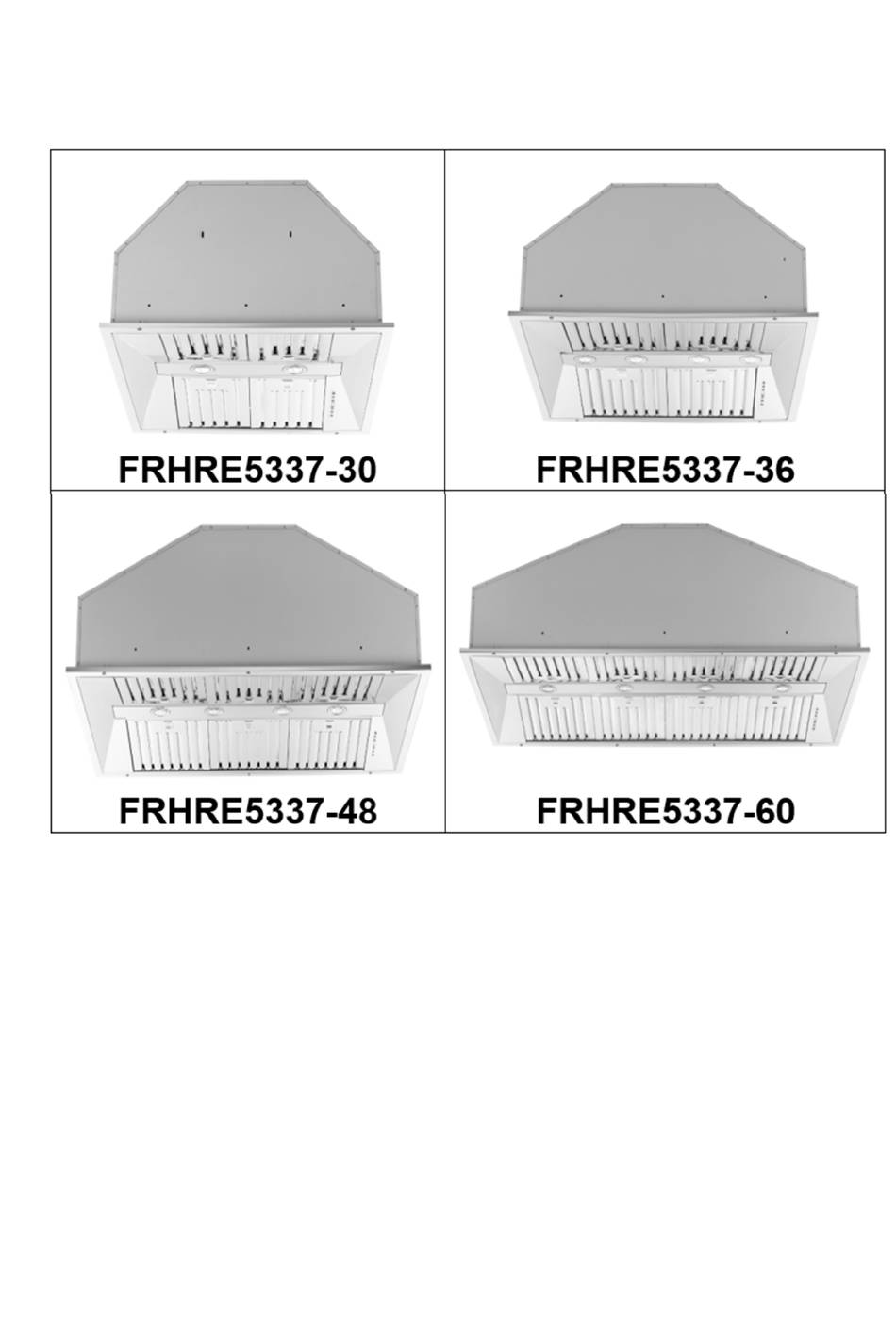

MOUNT HEIGHTS & CLEARANCE The minimum mounting height between range top to hood bottom should be no less than 30”. The optimal maximum height should be 36" above the cooktop (please note that the 36”, 48” & 60” unit can install up to 42"... - Page 10 2.Air Outlet Adapter (φ6’‘ for 30’’, φ 10’’ for 36’’,48’’ and 60’’) 3.Duct (1.5m long, φ 6’’ for 30’’, φ 10’’ for 36’’,48’’ and 60’’) 4.Baffle filters (4x for 30’’,36’’.6x for 48’’,8x for 60’’) 5.Screws and Anchors 6.Grease Cup 7.Instruction Manual FRHRE5337-30 FRHRE5337-36, FRHRE5337-48, FRHRE5337-60...
- Page 11 NOTE: Mounting holes location should be into support structure capable of holding 88bs (40kg) Range Hood Installation Measure and cut the opening at the bottom of the cabinet According to the dimensions indicated as below. FRHRE5337-30: 26.7”X23.7” FRHRE5337-36: 32.72’’X23.7” FRHRE5337-48: 44.73”X23.7” FRHRE5337-60: 56.74’’X23.7”...
- Page 12 Loose screws between range hood body and face plate. (4 screws in 30’’ and 36’’,6 screws in 48’’,8 screws in 60’’) Lift the range hood body insert into cabinet, secure range hood to support structures (3 screws in front and back,2 screws in left and right), Adjust the level of range hood, then tight all screws. NOTE: Range hood is very heavy, please make sure support structures must be able to support the weight of hood in 88lbs(40kg) Mounting holes in range hood locate in 2.35’’...
- Page 13 FRHRE5337-30: 4 screws. FRHRE5337-36: 4 screws FRHRE5337-48: 6 screws FRHRE5337-60: 8 screws OPERATIONS K1: Power Button/Power-off Delay Button K2: First Speed When range hood is off, press this button to turn on K3: Second Speed range hood, press K2 K3 K4 K5 to adjust motor speed.
-
Page 14: Maintenance And Cleaning
MAINTENANCE & CLEANING Surface Maintenance: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent (e.g. comet powder scrub, EZ-Off oven cleaner), or steel wool/scoring pads which will scratch and damage surface. For heavier soil use liquid degreaser such as ‘Formula 409’ or ‘Fantastic’ brand cleaner. After cleaning, you may use nonabrasive stainless-steel polish/cleaners such as 3M or ZEP, to polish and buff out the stainless luster and grain. -
Page 15: Troubleshooting
LIGHT bulbs WARNING: Please ensure lights have been switched off for some time and the power source has been disconnected before replacing any globes. Please be aware that the light will retain heat for a short period of time after being switched off. Step 1: Turn anti-clockwise to open Step 2: Take the existing globe out Step 3: Insert a new globe (GU10 Fitting) and turn clockwise in lock position... - Page 16 My range hood does not have power. Check electrical connections. Check that all connections to the circuit board are secure. If the problem persists, please contact Forno Technical Support. My range hood is not pulling. • Was the unit plugged in and was the fan checked before installation? •...
