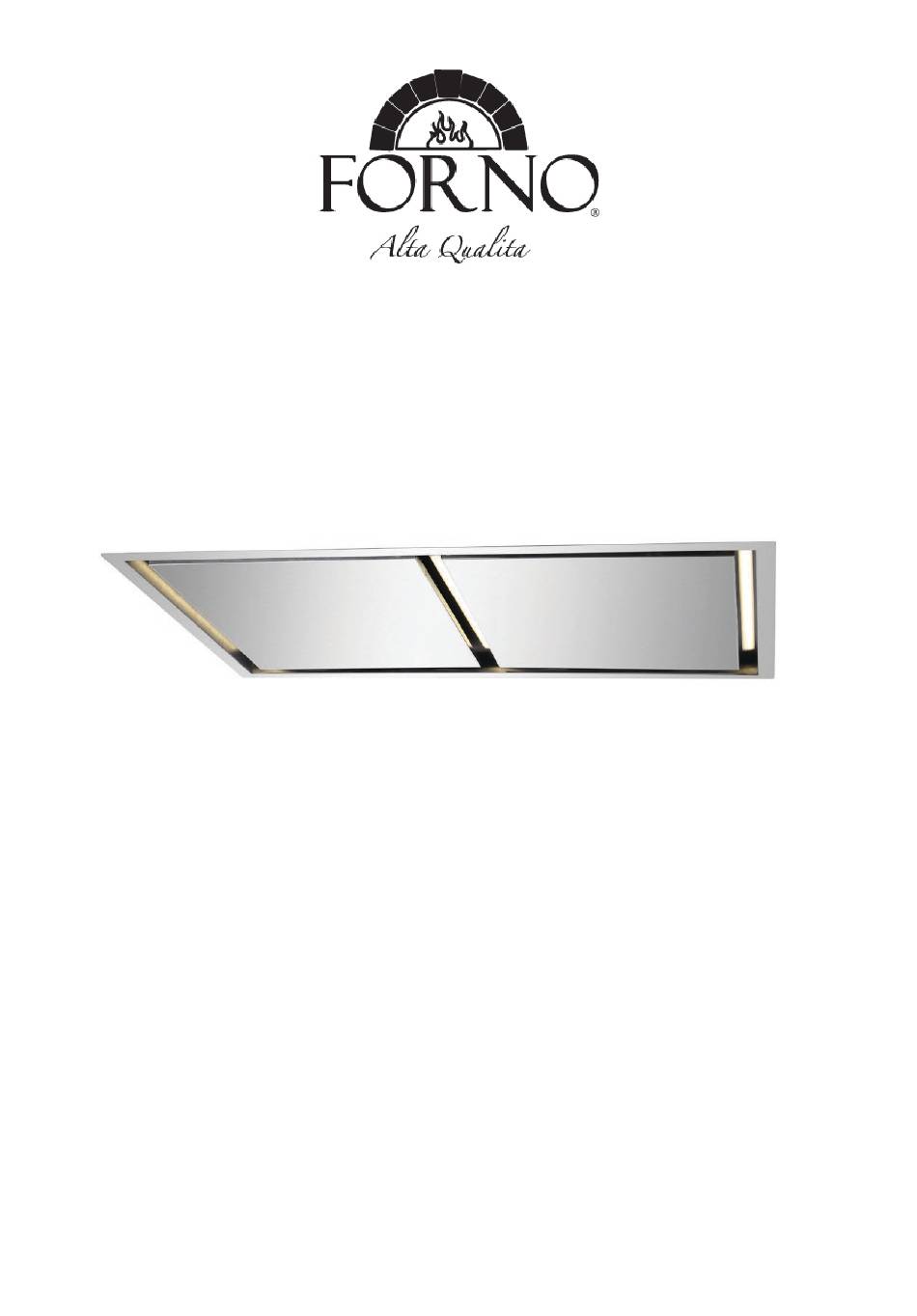

- Page 1 Range Hood Instruction Manual MODEL: FRHRE5312-44 IMPORTANT: Read and save these instructions NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference.
-
Page 2: Table Of Contents
Index: Customer care: ................. 1 Warnings: ................2-3 Characteristics/Installation and use: ........3 Location preparation: ............4-10 Electrical connection: ............Operation: ................Maintenance and cleaning: ............ 12-13... -
Page 4: Warnings
RECOMMENDATIONS AND SUGGESTIONS WARNING 1. Before servicing or cleaning unit, unplug or disconnect the rangehood from the power supply. 2. TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. -
Page 5: Characteristics/Installation And Use
CHARACTERISTICS The range hood is designed for a designer kitchen with the range hood installed directly above cooking appliances against a wall. This hood is a focus point and showpiece in your kitchen and at the same time, it provides you with the benefit of extracting the grease and smoke from your cooking. Please refer to the instructions below. -
Page 6: Location Preparation
Ductwork can be installed vertically or horizontally. Duct runs should be as short as possible. Avoid the use of elbows. Use duct tape at all joints. Do not use duct smaller than the discharge on the hood. ... - Page 7 NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhausts must be ducted to the outside. Use metal ductwork only. Fasten all connections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape.
- Page 8 INSTALLATION PREPARATION * Please plug in and check that all functions are working TOOLS AND MATERIALS REQUIRED (Not supplied) Pencil and tape measure Duct tape Wire cutter/stripper Wrench Hammer Keyhole Saw Level Safety glasses Electric or battery-operated Step ladder drill and 1/8", 3/8" bits 10"...
- Page 9 ACCESSORIES PROVIDED 6’’ round outlet adapter 6’’ round pipe(2x) with damper(2x) SCREWS PROVIDED M6x60mm expansion screw(6x) M4x25mm self -tapping screws (8x) M4x25mm self -tapping screws (8x)
- Page 10 PREPARE THE CEILING OPENING The hood should always be centered over the cooktop. Make sure there is adequate space in the ceiling structure to install the hood and ductwork. The hood should be mounted 36” to 72” above the cook top to ensure the best removal of cooking impurities.
- Page 11 PREPARE THE HOOD NOTE: Please plug in range hood and check that all functions are working 1. Open the perimeter panels and remove the grease filters. 2. Remove the (2) interior panels by unscrewing the screws (8+8 screws) Install 6’’ round outlet adapters(2x) to the hood with mounting screws Note: Outlet adapter may vary INSTALL THE HOOD CAUTION: At least two installers are...
-
Page 12: Electrical Connection
COMPLETE THE INSTALLATION 1. Reassemble the (2) interiors panels with screws. (8+8 screws) 2. Install the grease filters Electrical Connection * Electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards. Turn off electrical power at service entrance before wiring. * If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. -
Page 13: Operation
OPERATIONS K1: Power button When the range hood is on, press the K1 button to enter Power-Off Delay Timer. The Timer working time is 15 minutes, the range hood will turn off when the time reaches 0. If you press the K1 button again, the range hood will turn off. -
Page 14: Maintenance And Cleaning
MAINTENANCE & CLEANING Surface Maintenance: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent (e.g. comet powder scrub, EZ-Off oven cleaner), or steel wool/scoring pads which will scratch and damage surface. For heavier soil use liquid degreaser such as ‘Formula 409’ or ‘Fantastic’ brand cleaner. After cleaning, you may use non-abrasive stainless-steel polish/cleaners such as 3M or ZEP, to polish and buff out the stainless luster and grain. - Page 15 harmful. Rinse with water after exposure and wipe dry with a clean cloth. * Painted surfaces should be cleaned with warm water and mild detergent only. LIGHT bulbs WARNING: Please ensure lights have been switched off for some time and the power source has been disconnected before replacing any bulbs.
