Graphical user-interface (GUI):
Note: All references to TX operation are included for the future inclusion of a TXRX module which
converts the Spectrum into a DSP transceiver.
The touch screen is easily controlled once the basic technique is mastered.
Clicks with the stylus should be made in a deliberate manner, approximately half a second
long will activate the menu and control buttons, any longer and they will be detected as a
long-press, which activates secondary functions which most buttons and touch areas posses.
You can practice this by clicking on the
the menu list, a long-press will mute the audio, making another long-press will reactivate the
audio. If the volume is too low, click DSP/OFF and stroke up on the left-side.
A video on YouTube is available showing how to use the touch interface, available here,
https://youtu.be/A_YlSJJQLGM?si=0QFNF63dCD417fZ8
GUI controls are software defined, but for the purpose of simplicity they are typically defined
as follows:
Power on/off – Tapping the LCD screen several
•
times wakes the unit from power-save mode. To
power-off, press Menu then click
immediately Confirm.
Band change – To change band click the highest part
•
of the frequency display, which will then display the
band keypad. You can also change band by clicking
the red or green lines to the right-side of the frequency display.
Display Mode – The display modes are toggled by clicking on the top of the Spectrum
•
display area. If they gray header bar is shown, click on the left of the bar to toggle
through the modes.
Spectrum DSP M2 User Manual V1.1
MENU

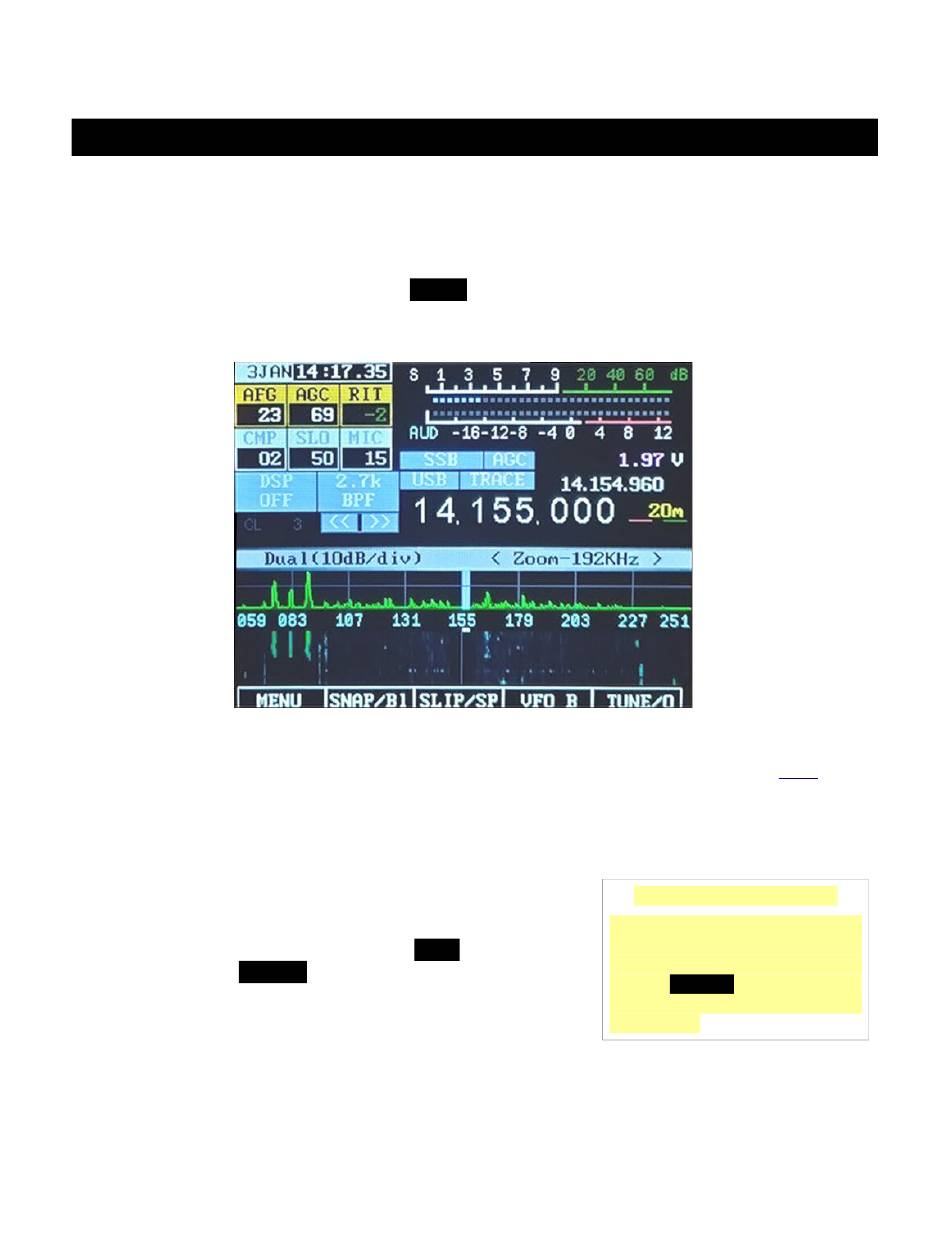

Figure 2: Main touch display of the Spectrum DSP
PWR
button. A short but deliberate press will display
Important: SDR Offset
For best receive quality the
frequency offset mode should
and
be activated with a long-press
on the
this button is green, the offset
is activate.
P 5
TUNE/O button. When
