How to adjust values and options using the touch screen:
IMPORTANT SECTION!

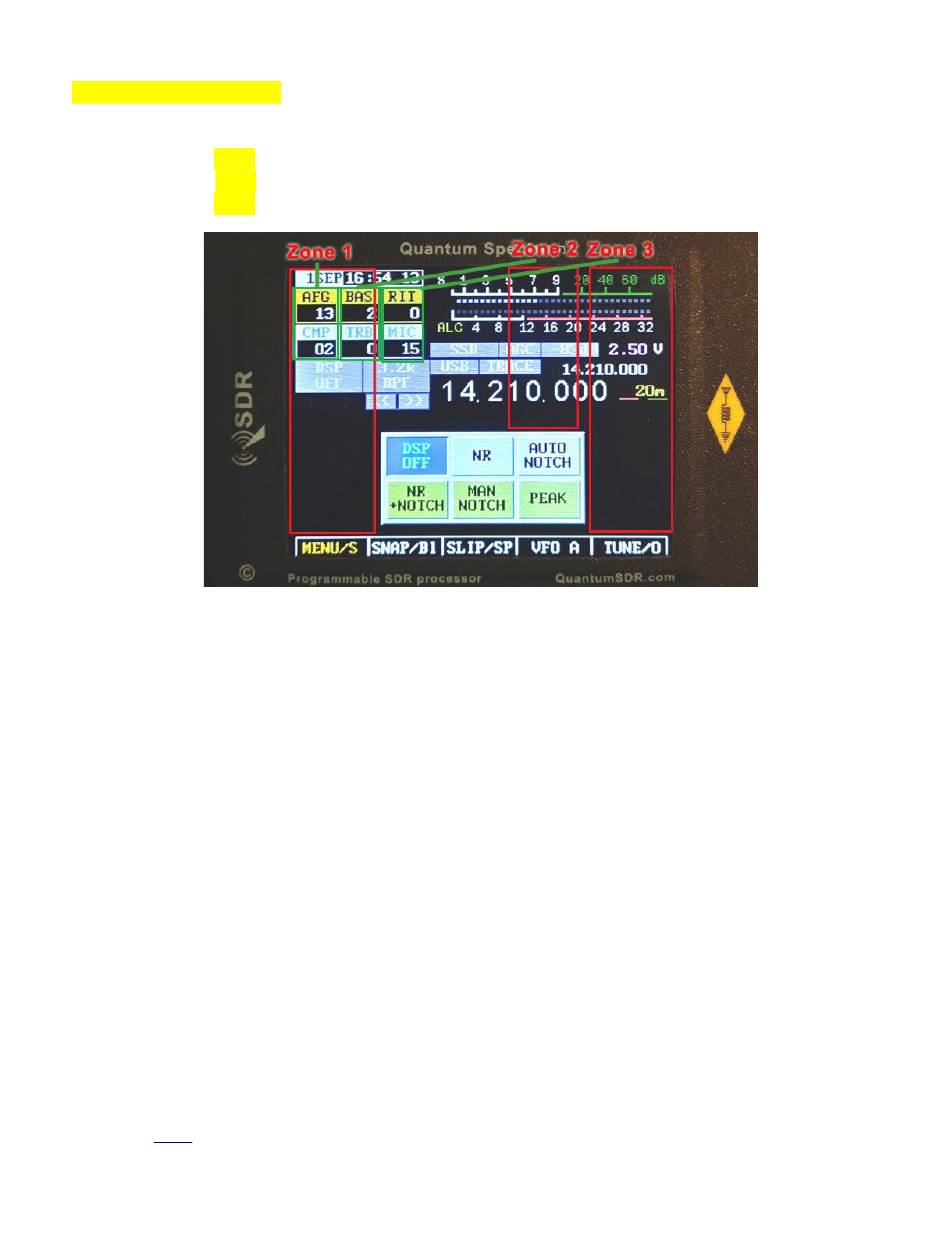

All settings are adjustable through 3 zones, these can be seen in the image below:
Zone 1: See the AFG column.
Zone 2: See the BAS column.
Zone 3: See the AFG column.
As modes are changed these 3 columns show different names and values, but the operation
stays exactly the same.
To Activate the adjustment mode, press the [DSP] button, shown above in the image as DSP
with OFF below. The DSP virtual keypad will then be displayed, as shown above.
Next we click on the top the the column that we want to change. For example, to change the
volume, AFG must be shown in the top box of the left column. If you click the AFG box, the
yellow highlight will change to the box below, allowing that variable to be adjusted.
So the left column, Zone 1, can now be adjusted by stroking up and down on the left-side of
the LCD in the red Zone 1 region. With AFG highlighted and the DSP menu displayed, short
up or down swipes in this region will change the volume level, and the AFG number will
change. When finished just click the DSP button again to clear the DSP keypad.
This applies equally to the other two columns. Clicking the top box of each column will cycle
the boxes through all the different settings, much like how a touch interface on a cell phone
operates.
For example, click the top box of column 2 (it may show AGC on your screen) and the text
shown will cycles from AGC to SLO, BASE and TREB. Whatever has the yellow highlight can
be adjusted by swiping up or down in its Zone area shown in red, Zone 2 in the case of
column 2. With a little practice it becomes easy to use, and there is a video available on
YouTube here that shows how to use the LCD interface.
