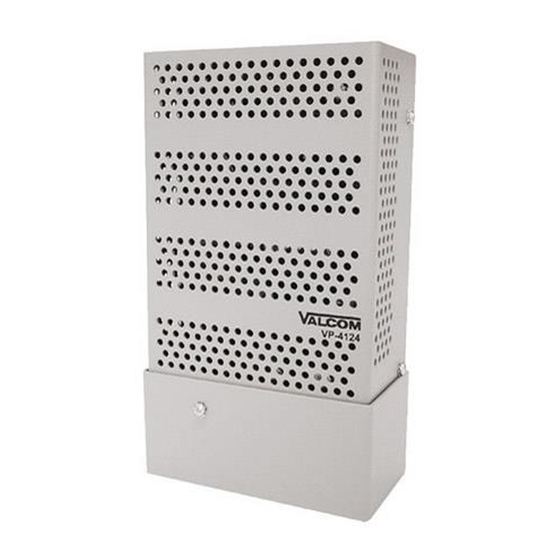

Valcom VP-4124 Technical Specifications

FEATURES:
24 VOLT DC "A" BATTERY POWER SUPPLY
TWO OUTPUTS, 2 AMPS EACH
REGULATED AND FILTERED
FLOATING OUTPUT
INPUT FUSE PROTECTION
OUTPUT PROTECTION
WALL MOUNT PLATE INCLUDED
PROVIDES 80 VALCOM POWER UNITS
DESCRIPTION:
Wall mountable, switching, 24 Vdc, filtered "A" Talk Battery power supply with two 2 Amp outputs,
each protected with auto-reset poly switches.
INPUT
Voltage/Frequency
Power
BTU/Hr
Protection
Connection
OUTPUT
Voltage/Current
Protection
Connections
5614 Hollins Road Roanoke, Virginia 24019
E-Mail: support@valcom.com
24VDC/4 AMP, 48VDC/2 AMP
SWITCHING POWER SUPPLY
VP-4124
SPECIFICATIONS:
120 Vac, 47-63 Hz
110 W @ 24 Vdc
100 W @ 48 Vdc
380 BTU/Hr
1A/120 Vac Input Fuse
IEC 320 Input + AC Cord
24 Vdc @4A (2A Per Output)
48Vdc @ 2A (Outputs Tied)
Regulated, Filtered, Floating
10 mV Ripple Maximum
Two 2 Amp Output
Auto-reset polyswitches
Wire Cage Connectors
SPECIFICATIONS
REGULATORY
UL, cUL Listed
FCC Class B
ENVIRONMENT
Temperature
Humidity
MOUNTING
Wall Mounted
Mounting Plate And Hardware Included
DIMENSIONS AND WEIGHT
8.45 " (21.46 cm) H x 4.70" (11.94 cm) W
x 2.35" (5.97 cm)D
Weight: 4.7 lbs (2.12 kg)
Phone: 540-563-2000
www.valcom.com
TECHNICAL
32 - 104 °F (0 - 40 °C)
10 - 90% Non-condensing
Fax: 540-362-9800
