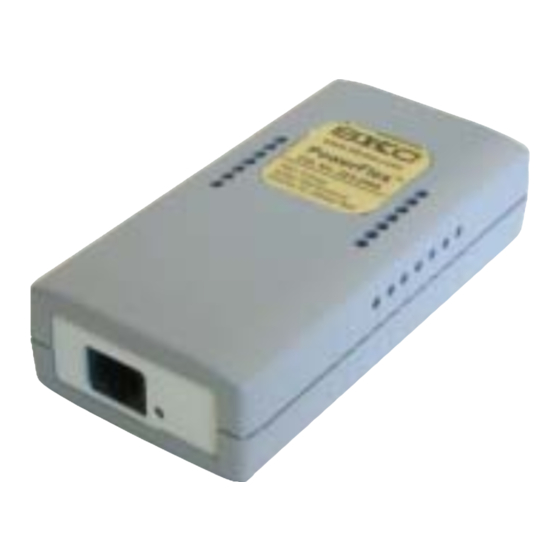

PowerFlex Battery Charging System
Small and lightweight, the SKC PowerFlex
designed for optimal charging of NiCad and NiMH batt ery packs for most SKC
personal air sampling pumps.
Pump-specifi c cables are used to connect batt ery packs to the PowerFlex so that
only one charger is needed for most SKC personal sample pumps (excluding Ex
and ATEX models and models with lithium-ion [Li-Ion] batt eries). PowerFlex
fully charges batt ery packs in 6 to 8.5 hours, and then automatically switches
to a safe pulse trickle charge. An LED indicates batt ery charge status. Batt ery
packs can be charged att ached to or detached from the pump.
Performance Profi le*
Dimensions:
Weight:
Charging time
Status LED:
Input voltage:
Intrinsic safety:
Approvals:
* For U.S.-produced pump models only. Not compatible with Ex or ATEX-approved models.
‡ Typical charging times vary with model, batt ery capacity, and level of discharge.
NEED HELP?
SCAN OR CLICK HERE
TO CONTACT US
Air-Met Scientific
www.airmet.com.au
Tel: 724-941-9701 Fax: 724-941-1369 e-mail: skctech@skcinc.com
1.2 x 2.3 x 4.6 in (3.0 x 5.8 x 11.7 cm)
4 oz (0.1 kg)
‡
:
6 to 8.5 hrs
Steady Red = Charging
Steady Green = Trickle charge
223-2000: 100-240 V
Not intended for use in explosive or hazardous
locations
Power supply is
is CE marked.
Operating Instructions
863 Valley View Road, Eighty Four, PA 15330 USA
®
is an advanced charging system
for electrical safety and
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SKC PowerFlex
Summary of Contents for SKC PowerFlex
- Page 1 NiCad and NiMH batt ery packs for most SKC personal air sampling pumps. Pump-specifi c cables are used to connect batt ery packs to the PowerFlex so that only one charger is needed for most SKC personal sample pumps (excluding Ex and ATEX models and models with lithium-ion [Li-Ion] batt eries).
- Page 2 Procedure for PowerFlex Activation 1. Plug the power cable into the power jack on the back of the PowerFlex. Plug the wall cube into a power outlet (100-240 V). If the LED lights red or green upon plugging the charger into the wall outlet (no pump att ached), discontinue use of the charger and return it to SKC for repair.
- Page 3 Step 1. 6. Once the batt ery pack is fully charged, the LED at the port will change to a steady green to indicate that PowerFlex has switched to a trickle charge to keep the batt ery at full charge.
- Page 4 PowerFlex Technology Charging NiCad/NiMH batteries is generally accomplished by applying constant current to the battery. SKC PowerFlex Chargers use a technology that is new to industrial hygiene equipment batteries. Refl ex charging delivers pulses of current instead of constant current to charge batteries. In between †...
