Interlogix NS3553-4P-1T-2S-V2 Quick Installation Manual page 2

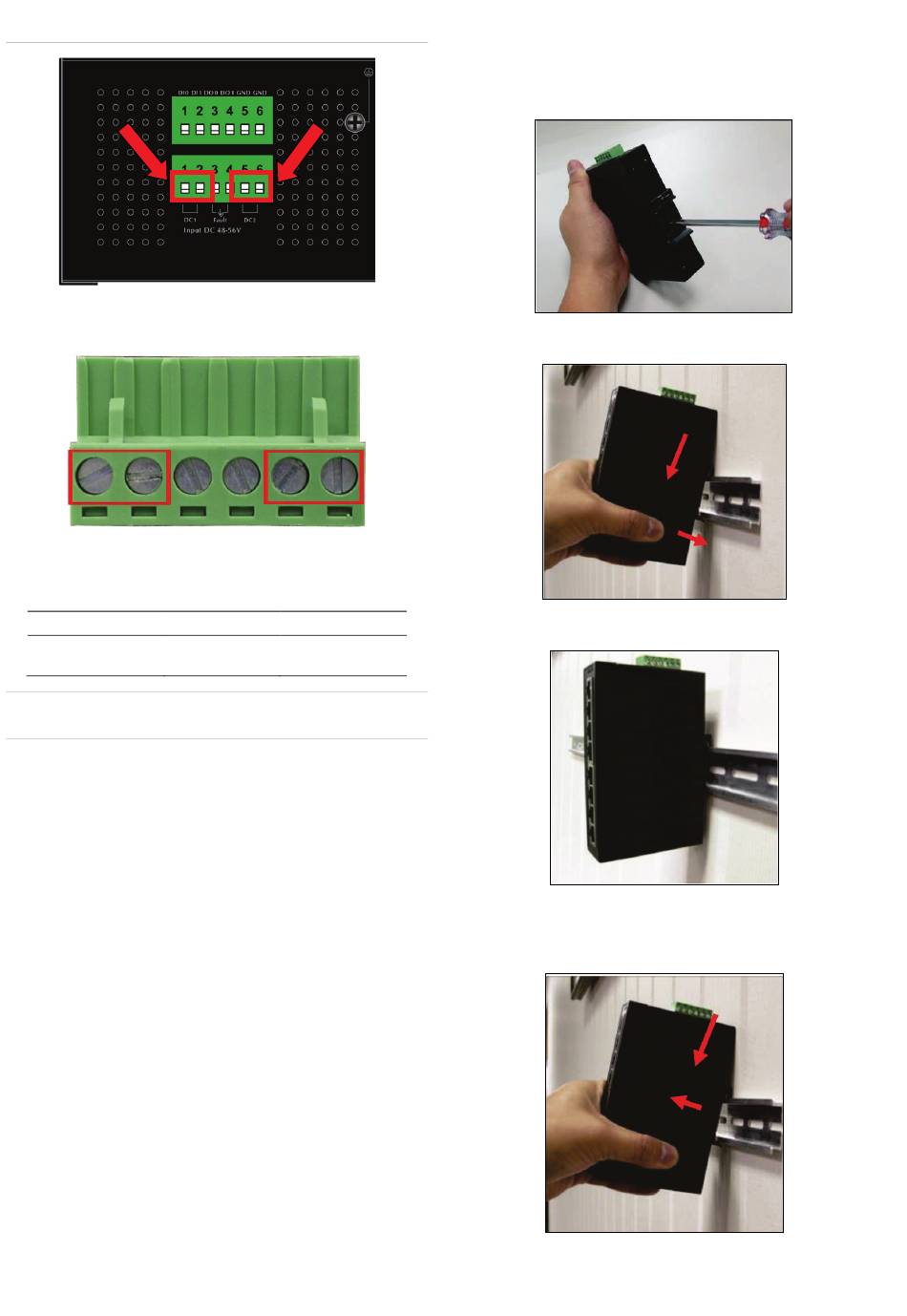

Figure 2: Managed industrial switch upper panel
2. Tighten the wire-clamp screws to prevent the wires from
loosening.
1 2
V+ V-
Power 1
Positive (+) Pin
NS3553-4P-1T-2S- Pin 1/5
V2
Note: The wire gauge for the terminal block should be in the
range from 12 to 24 AWG.
Mounting
Important:
• Ensure that the industrial managed switch is mounted
vertically with the power connectors on the top and a
minimum of three inches above and below the switch to
allow for proper air flow. This device uses a convection
flow of hot air which rises and brings cold air in from the
bottom and out of the top of the device.
• Do not mount the switch horizontally as this does not allow
air to flow up into the device and will result in damage to
the switch.
• Do not tie DC1 to DC2. DC2 is for secondary power
redundancy.
• Do not plug DC power into the device while the AC power
cord is plugged in. This is not a hot-swappable switch.
Hot-swapping this device will result in damage.
DIN-rail mounting installation
To replace the wall-mount application with DIN-rail application
on industrial gigabit Ethernet switch, refer to the following
figures to screw the DIN-rail on the industrial gigabit Ethernet
switch.
2 / 6
3 4 5 6
V+ V-
Power 2
Negative (-) Pin
Pin 2/6
To hang the industrial gigabit Ethernet switch, follow the steps
below:
1. Screw the DIN-rail on the industrial gigabit Ethernet
switch.
2. Place the bottom of DIN-rail lightly into the track.
3. Ensure that the DIN-rail is secured to the track.
To remove the industrial gigabit Ethernet switch from the track,
carefully pull out the bottom of the DIN-rail to remove it from
the track.
P/N 1073389-EN • REV D • ISS 03JUL22
