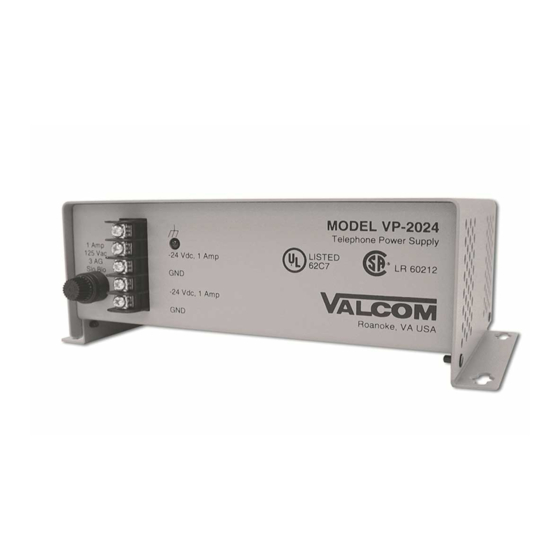

24VDC/2 AMP POWER SUPPLY
FEATURES:
24 VOLT DC "A" BATTERY POWER SUPPLY
REGULATED AND FILTERED
FLOATING OUTPUT
OUTPUT OVERVOLTAGE PROTECTION
CURRENT LIMITING
WALL MOUNT
INPUT FUSE PROTECTED
PROVIDES 40 VALCOM POWER UNITS
DESCRIPTION:
Wall mountable linear, 24 Vdc 2 Amp, filtered "A" Talk Battery power supply.
INPUT
Voltage/Frequency
Power
BTU/Hr
Protection
Connection
OUTPUT
Voltage
Current
Protection
Connections
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com
VP-2024
SPECIFICATIONS:
105 - 120 Vac, 60 Hz
90 Watts
310 BTU/Hr
2A/125 Vac Input Fuse
AC Cord
24 Vdc Regulated +2V
Filtered, Floating
10 mV Ripple Maximum
2 Amp
Over-Voltage Protection
Current Limiting
Screw Terminals
SPECIFICATIONS
REGULATORY
UL, CSA Listed
ENVIRONMENT
Temperature
Humidity
MOUNTING
Wall Mounted
Mounting Plate Hardware Included
DIMENSIONS AND WEIGHT
3.30" (8.38 cm) H x 9.50" (24.13 cm) W x
6.00" (15.24 cm) D
Weight: 6.90 lbs (3.11kg)
Phone: 540-563-2000
www.valcom.com
TECHNICAL
32 - 104 °F (0 - 40 °C)
0 - 85% Non-condensing
Fax: 540-362-9800
