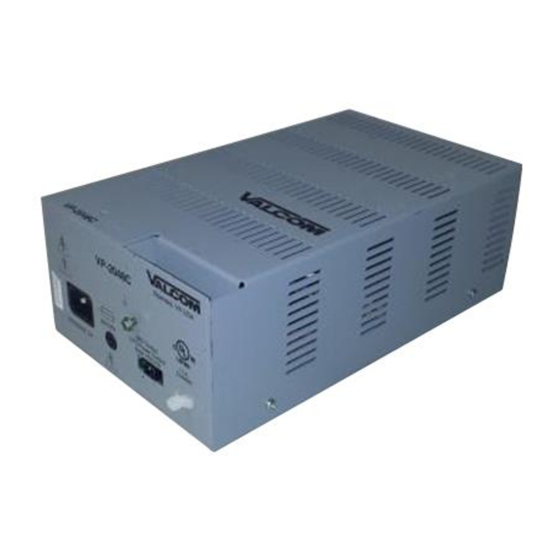

48VDC/2 AMP LINEAR POWER SUPPLY
FEATURES:
FOR USE WITH THE V-1038 (30 WATT HORN)
48 VOLT DC
2 AMP
REGULATED, FILTERED
INPUT FUSE PROTECTION
OUTPUT OVERVOLTAGE PROTECTION
CURRENT LIMITING
WALL MOUNTING PLATE AND HARDWARE INCLUDED
DESCRIPTION:
Wall mountable 2 Amp, 48 Volt dc linear power supply. For use with the V-1038 (30 Watt Horn) only.
INPUT
Voltage/Frequency
Power
BTU/Hr
Protection
Connection
OUTPUT
Voltage
Current
Protection
Connections
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com
VP-2048C
SPECIFICATIONS:
105-120 Vac, 60 Hz
150 Watts
515 BTU/Hr
Internal Input Fuse
IEC 320 Input + AC Cord
48 Vdc Regulated +3 V
Filtered, Floating
2 Amps
Overvoltage Protection
Current Limiting
Wire Cage Connectors
SPECIFICATIONS
REGULATORY
UL, cUL Listed
ENVIRONMENT
Temperature
Humidity
MOUNTING
Wall Mounting
Mounting Plate Hardware Included
DIMENSIONS AND WEIGHT
10.70" (27.18cm) H x 6.35" (6.13cm) W
x 3.75" D (9.53 cm)
Weight: 13.00 lbs (5.85 kg)
Phone: 540-563-2000
www.valcom.com
TECHNICAL
32 - 104 °F (0 - 40 °C)
0-85% Non-condensing
Fax: 540-362-9800
Advertisement
Related Manuals for Valcom VP-2048C
Summary of Contents for Valcom VP-2048C
- Page 1 48 Vdc Regulated +3 V Filtered, Floating Current 2 Amps Protection Overvoltage Protection Current Limiting Connections Wire Cage Connectors 5614 Hollins Road Roanoke, Virginia 24019 E-Mail: support@valcom.com SPECIFICATIONS VP-2048C SPECIFICATIONS: REGULATORY UL, cUL Listed ENVIRONMENT Temperature Humidity MOUNTING Wall Mounting...
-
Page 2: Limited Warranty
This warranty is in lieu of and excludes all other warranties expressed or implied, and in no event shall Valcom, Inc. be liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation or use of the product.
