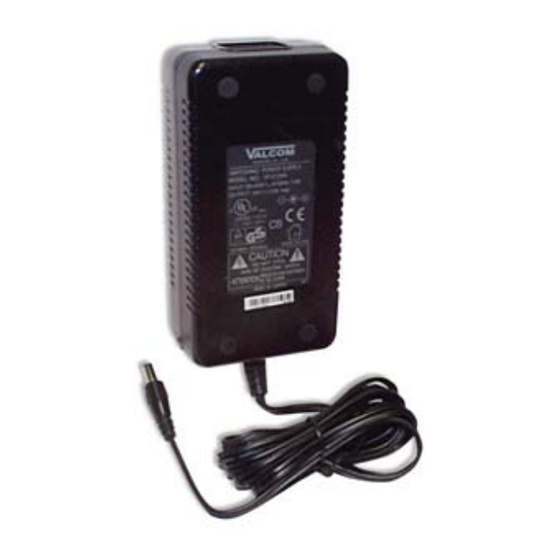

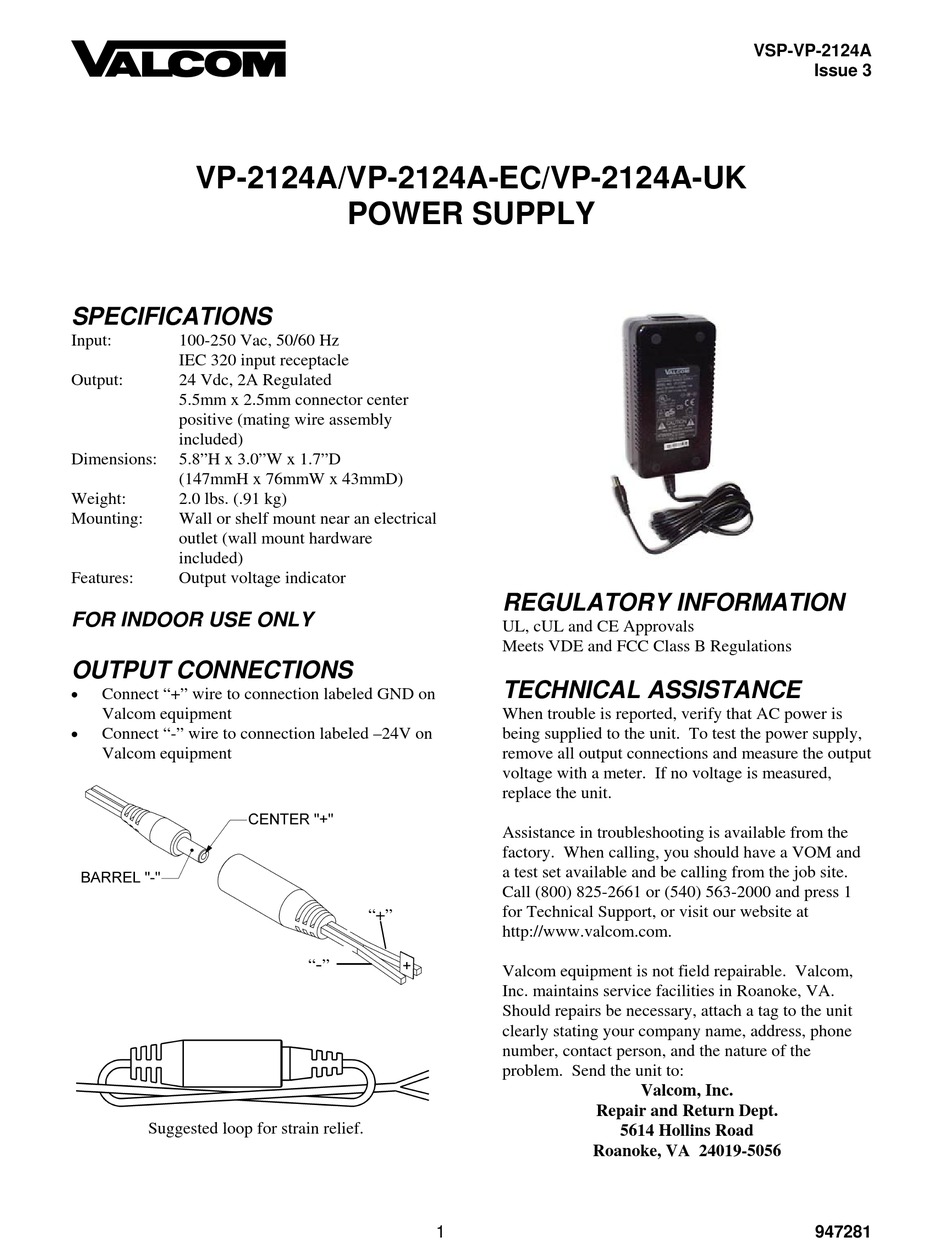

VP-2124A/VP-2124A-EC/VP-2124A-UK
SPECIFICATIONS
Input:
100-250 Vac, 50/60 Hz
IEC 320 input receptacle
Output:
24 Vdc, 2A Regulated
5.5mm x 2.5mm connector center
positive (mating wire assembly
included)
Dimensions:
5.8"H x 3.0"W x 1.7"D
(147mmH x 76mmW x 43mmD)
Weight:
2.0 lbs. (.91 kg)
Mounting:
Wall or shelf mount near an electrical
outlet (wall mount hardware
included)
Features:
Output voltage indicator
FOR INDOOR USE ONLY
OUTPUT CONNECTIONS
Connect "+" wire to connection labeled GND on
Valcom equipment
Connect "-" wire to connection labeled –24V on
Valcom equipment
Suggested loop for strain relief.
POWER SUPPLY
"+"
-
"
"
1
REGULATORY INFORMATION
UL, cUL and CE Approvals
Meets VDE and FCC Class B Regulations
TECHNICAL ASSISTANCE
When trouble is reported, verify that AC power is
being supplied to the unit. To test the power supply,
remove all output connections and measure the output
voltage with a meter. If no voltage is measured,
replace the unit.
Assistance in troubleshooting is available from the
factory. When calling, you should have a VOM and
a test set available and be calling from the job site.
Call (800) 825-2661 or (540) 563-2000 and press 1
for Technical Support, or visit our website at
http://www.valcom.com.
Valcom equipment is not field repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the unit
clearly stating your company name, address, phone
number, contact person, and the nature of the
problem. Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
VSP-VP-2124A
Issue 3
947281
