Summary of Contents for Motorola MOTO BUDS 135

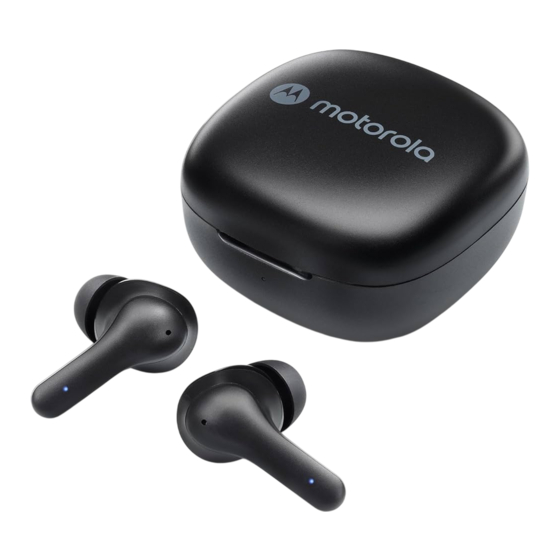

- Page 1 MOTO BUDS 135 TRUE WIRELESS EARBUDS For: MOTO BUDS 135 User Guide...
- Page 2 Safety instructions DANGER To avoid hearing damage, limit the time you use earbuds at high volume and set the volume to a safe level. The louder the volume, the shorter the safe listening time is. WARNING This true wireless earbuds are compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User Guide, safe to use.
- Page 3 CAUTION • Do not expose earbuds to excessive heat. • Do not drop your earbuds. • Earbuds shall not be exposed to dripping, splashing water. • Do not allow your earbuds to be submerged in water. • Do not use any cleaning agents containing, alcohol, ammonia, benzene, or abrasives.
- Page 4 Motorola smart phone or phone. Need help? If you have any problems setting up or using your MOTO BUDS 135, please visit us at motorolasound.com/support Alternatively, you may find the answer in the ‘Help’ section at the back of this guide.
- Page 5 This User Guide provides you with all the information you need to get the most from your true wireless earbuds. Before you make call or listen to music you will need to set up your true wireless earbuds. Follow the simple instructions in ‘Getting started’, on the next few pages.
-
Page 6: Table Of Contents
Getting started ..............7 Getting to know your true wireless earbuds...9 Using the true wireless earbuds ........ 10 Select the earcaps ..................10 Wear the earbuds ................... 10 Reconnect the earbuds to your Bluetooth device ......10 Operation ......................11 3.4.1 Turn on/off ...................11 3.4.2 Call control ..................11... -
Page 7: Getting Started
<100% Warning! Use only the approved rechargeable Lithium polymer battery Fig. 2a supplied with your MOTO BUDS 135. Charging case Connect one side of the supplied USB-C charging cable to the Type-C charging port, and the other side to the USB AC adaptor. - Page 8 3. Your earbuds support Google fast pairing. Open the charging case top lid. For Motorola smart phone or Android phone with Android version 6.0 or above, simply confirm MOTO BUDS 135 directly on your device screen. For other devices, select MOTO BUDS 135 from the Bluetooth menu of your device.
-
Page 9: Getting To Know Your True Wireless Earbuds
Getting to know your true wireless earbuds Overview Fig. 1c Fig. 1a Fig. 1d Fig. 1b Microphones (for noise cancellation) Multi-function buttons (MFB) Replaceable earcaps (size M) LED indicators Charging case charging contacts Microphones (for phone calls) Charging case USB Type-C charging socket Earbud charging contacts Pairing button Battery level indicator... -
Page 10: Using The True Wireless Earbuds
Using the true wireless earbuds Select the earcaps Select from 3 different size of replaceable earcaps which fit your ears the best. The earbuds come with size M attached as default. 2. Fit the earcaps into the earbuds. Fig. 4a Wear the earbuds Insert the earbuds into ears and rotate to fit comfortably. -
Page 11: Operation
Operation 3.4.1 Turn on/off Task Operation Remove the earbuds from the charging case, the earbuds will be automatically on. When earbuds are removed from the Turn on charging case, press and hold the left/right MFB for 2 seconds to power on. You will hear HELLO MOTO. -
Page 12: Activate Voice Assistant
3.4.4 Activate voice assistant Task Operation Siri, Google Right MFB: Press and hold for 2 seconds. 3.4.5 Restore factory settings Put both earbuds into the charging case. 2. Press and hold the pairing button on the charging case for 10 seconds. The LED indicator flashes blue and white 3 times. -
Page 13: Help
Help The true wireless earbuds do not turn on. • The battery level is too low. Recharge your earbuds. The true wireless earbuds do not connect with the Bluetooth device. • Ensure the Bluetooth function of the Bluetooth device has been turned on. •... -
Page 14: Technical Specifications
Technical Specifications Bluetooth profiles HSP (Handset Profile); HFP (Handsfree Profile); A2DP (Advanced Audio Distribution Profile); AVRCP (Audio Video Remote Control Profile) Bluetooth version Battery Type and capacity: Lithium polymer, 45 mAh on earbuds; 300 mAh 3.7 V rechargeable battery on charging case Weight: approx. -
Page 15: General Information
Meizhou, Guangdong, P.R.China . (“MZGW”) What Does this Warranty Cover? Subject to the exclusions contained below, MZGW warrants that this Motorola branded product (“Product”) or certified accessory (“Accessory”) sold for use with this product that it manufactured to be free from defects in materials and workmanship under normal consumer usage for the period outlined below. - Page 16 PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA OR MZGW BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING...
- Page 17 (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola or MZGW are excluded from coverage.
- Page 18 EU exposure: RF exposure information: The EIRP power of the device at maximal case is below the exempt condition, 20mW specified in EN62479: 2010. RF exposure assessment has been performed to prove that this unit will not generate the harmful EM emission above the reference level as specified in EC Council Recommendation(1999/519/EC).
- Page 19 The SAR limit of Canada (ICES) is 1.6 W/kg for head averaged over one gram of tissue. Device types MOTO BUDS 135 ANC (IC: 20353-MB135) has also been tested with 0mm against this SAR limit. General Information...
- Page 20 Manufactured, distributed or sold by Meizhou Guo Wei Electronics Co. LTD., official licensee for this product. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners.
