BI-DIRECTIONAL ONE-WAY SPEAKER
FEATURES:
UTILIZES STANDARD CAT 3, 5, OR 6 CABLE
EXCELLENT VOICE AND MUSIC REPRODUCTION
EXTERNALLY ACCESSIBLE VOLUME CONTROL
WIDE SOUND DISPERSION
ELECTRICALLY, ACOUSTICALLY MATCHED PARTS
ATTRACTIVE WALNUT FINISH
DESCRIPTION:

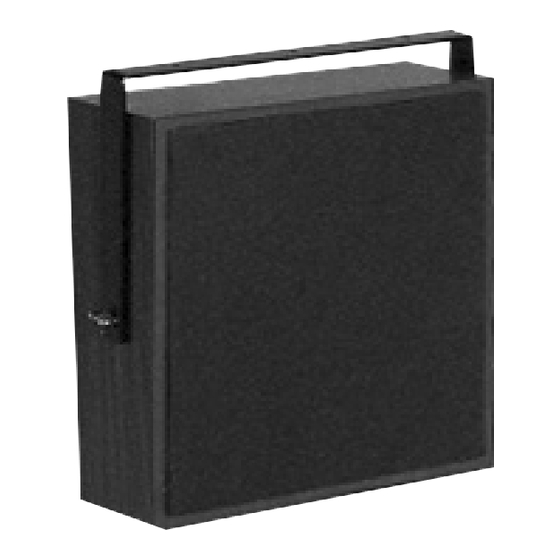

Bi-directional corridor speaker assembly complete with speaker, amplifier, built-in volume
control, baffle and mounting bracket.
SPEAKER ELEMENT
Cone Diameter: 8.0" (20.32 cm)
FREQUENCY RESPONSE
80 Hz to 15 kHz
INPUT
Impedance: > 600 Ohms nominal
Signal Level: -10 dBm line level
OUTPUT
Rating: > 96 dB @ 4' (1.22 m)
Signal/noise ratio: -70 dB
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com
MODEL V-1027C
SPECIFICATIONS:
POWER REQUIREMENTS
50 mA @ -24 Vdc
ENVIRONMENT
Temperature: -4 to +131 °F (-20 to +55 °C)
Humidity: 0-95% Non-Condensing
HOUSING AND FINISH
Baffle constructed of .5" (1.27 cm) particle
board, covered with simulated walnut vinyl with
matching brown cloth grille.
DIMENSIONS AND WEIGHT
10.3" (26.2 cm) H x 10.3" (26.2 cm) W x 4.2"
(10.7 cm) D
Weight: 5.6 lbs (2.54 kg)
Phone: 540-563-2000
www.valcom.com
TECHNICAL
SPECIFICATIONS
Fax: 540-362-9800
