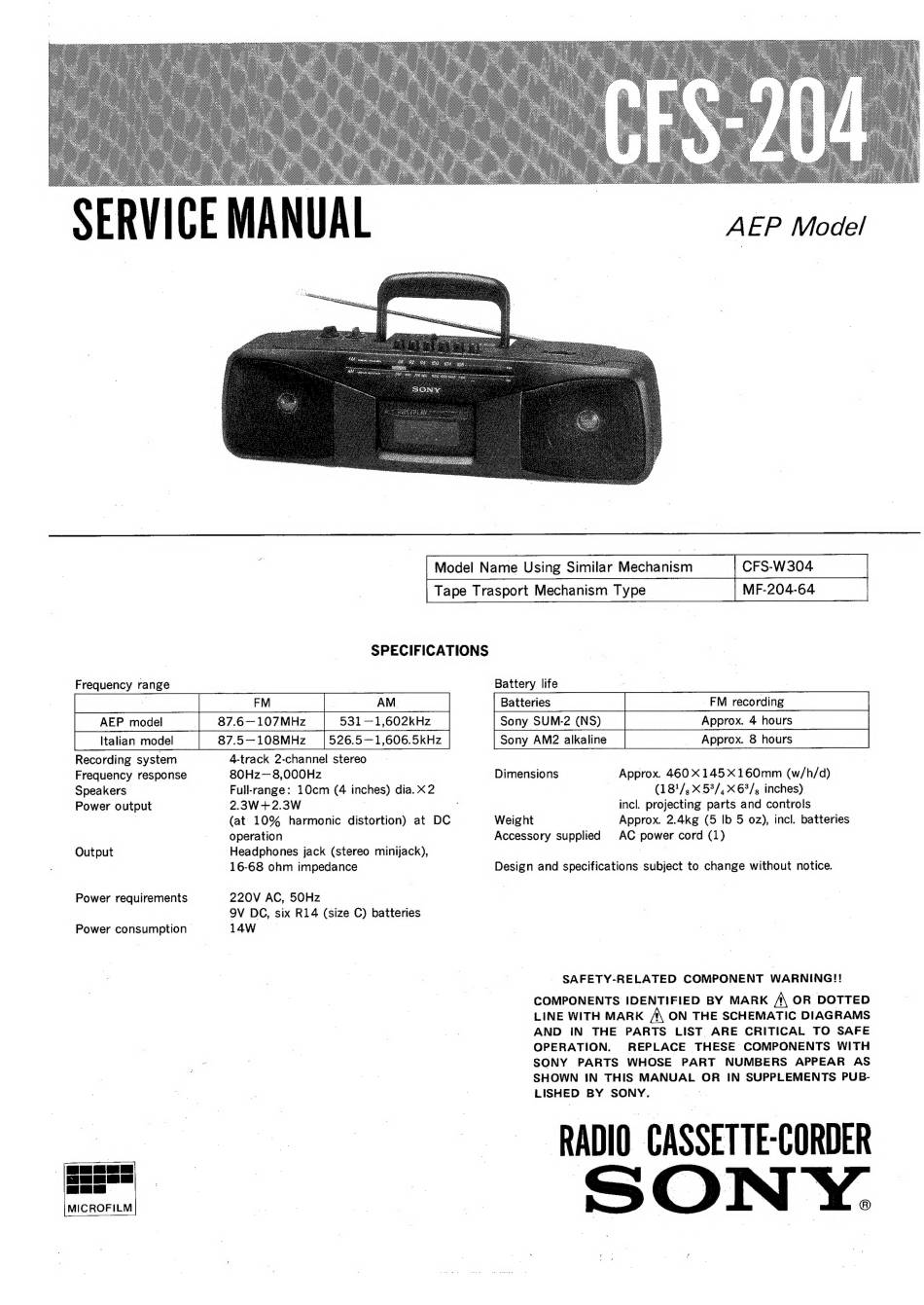

Sony CFS-204 Service Manual

Frequency range
AEP model |
Italian model
Recording system
Frequency response
Speakers
Power output
Output
Power requirements
Power consumption |
aN
87.6—107MHz 531 —1,602kHz
87.5—-108MHz
SPECIFICATIONS
526.5—1,606.5kHz
4-track 2-channel stereo
80Hz—8,000Hz
Full-range: 10cm (4 inches) dia. x2
2.3W+2.3W :
(at 10% harmonic distortion) at DC
operation
Headphones jack (stereo minijack),
16-68 ohm impedance
220V AC, 50Hz
9V DC, six R14 (size C) batteries
14W
Model Name Using Similar Mechanism
Tape Trasport Mechanism Type
Battery life ;
AEP Model
CFS-W304
| MF-204-64
"FM recording
Sony SUM-2 (NS) Approx. 4 hours
Sony AM2 alkaline _ Approx. 8 hours
Dimensions Approx. 460 X 145 X160mm (w/h/d)
(18'/, x 53/, X 63/, inches)
incl. projecting parts and controls
Weight Approx. 2.4kg (5 lb 5 oz), incl. batteries
Accessory supplied AC power cord (1)
Design and specifications subject to change without notice.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK /\ OR DOTTED
LINE WITH MARK A\ ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
R A D I O CASSETTE-CORDER
