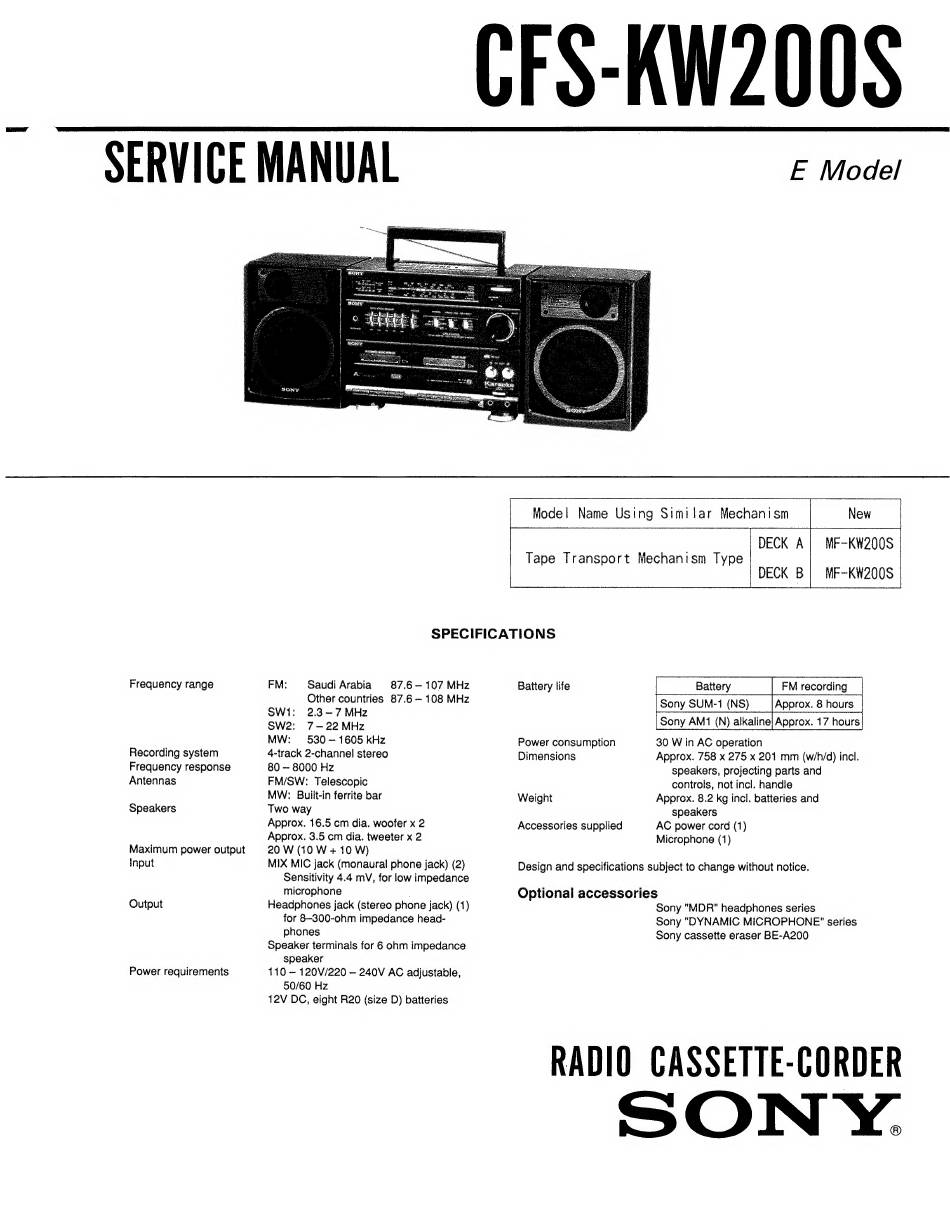

Sony CFS-KW200S Service Manual

SERVICE MANUAL
Frequency range
Recording system
Frequency response
Antennas
Speakers
Maximum power output
Input
Output
Power requirements
CFS-KW2008
E Model
Mode! Name Using Similar Mechanism
MF-KW200S
MF-KW200S
ee
Tape Transport Mechanism Type
SPECIFICATIONS
FM: Saudi Arabia 87.6 — 107 MHz Battery life FM recording
Other countries 87.6 — 108 MHz Sony SUM-1 (NS) Approx. 8 hours
ee S o n y AMI ( N ) a l k a l i
SW2: 7—22MHz ony (N) alkaline) Approx. ours
MW: 530 —~ 1605 kHz
4-track 2-channel stereo
80 — 8000 Hz
FM/SW: Telescopic
MW: Built-in ferrite bar
Two way
Approx. 16.5 cm dia. woofer x 2
Approx. 3.5 cm dia. tweeter x 2
20 W (10 W + 10 W)
MIX MIC jack (monaural phone jack) (2)
Sensitivity 4.4 mV, for low impedance
microphone ;
Headphones jack (stereo phone jack) (1)
for 8-300-ohm impedance head-
phones
Speaker terminals for 6 ohm impedance
speaker
110 — 120V/220 ~ 240V AC adjustable,
50/60 Hz
12V DC, eight R20 (size D) batteries
Power consumption 30 W in AC operation
Dimensions Approx. 758 x 275 x 201 mm (w/h/q) incl.
speakers, projecting parts and
controls, not incl. handle
Weight Approx. 8.2 kg incl. batteries and
speakers
AC power cord (1)
Microphone (1)
Accessories supplied
Design and specifications subject to change without notice.
Optional accessories
Sony "MDR" headphones series
Sony "DYNAMIC MICROPHONE' series
Sony cassette eraser BE-A200
RADIO CASSETTE-CORDER
SON
Y.
