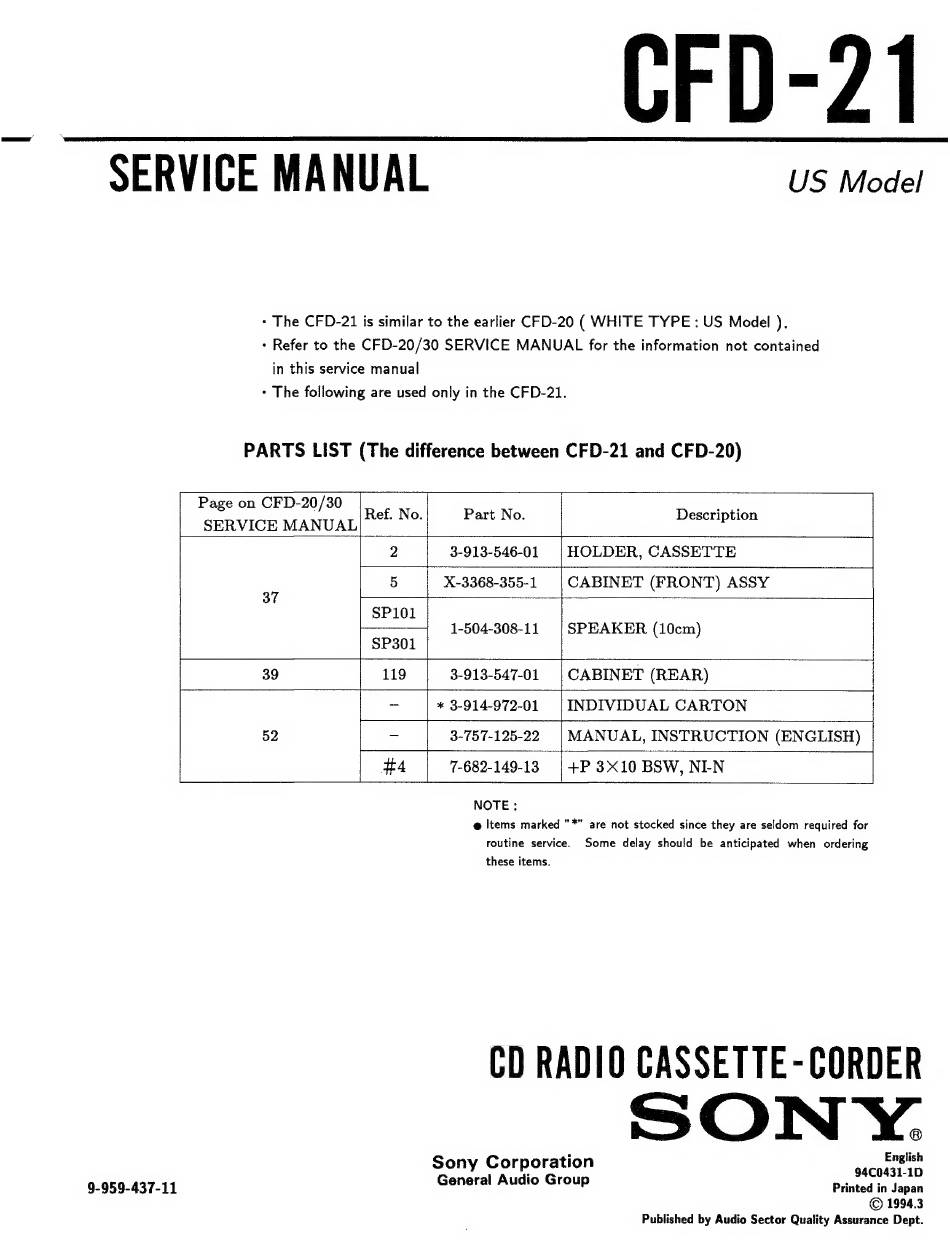

Sony CFD-21 Service Manual

CFD-21
SERVICE MANUAL US Model
* The CFD-21 is similar to the earlier CFD-20 ( WHITE TYPE : US Model ).
: Refer to the CFD-20/30 SERVICE MANUAL for the information not contained
in this service manual
* The following are used only in the CFD-21.
PARTS LIST (The difference between CFD-21 and CFD-20)
Page on CFD-20/30
SERVICE MANUAL
Part No. Description
| 2 3-913-546-01 | HOLDER, CASSETTE
| -3868-355-1 CABINET (FRONT) ASSY
1-504-308-11 | SPEAKER (10cm)
—
3-913-547-01
* 3-914-972-01
CABINET (REAR)
INDIVIDUAL CARTON 7
3-757-125-22 | MANUAL, INSTRUCTION (ENGLISH)
+
7-682-149-1383 | +P 3X10 BSW, NIN
NOTE:
@ Items marked "*" are not stocked since they are seldom required for
routine service. Some delay should be anticipated when ordering
these items.
CD RADIO CASSETTE-CORDER
SONY.
Published by Audio Sector Quality Assurance Dept.
