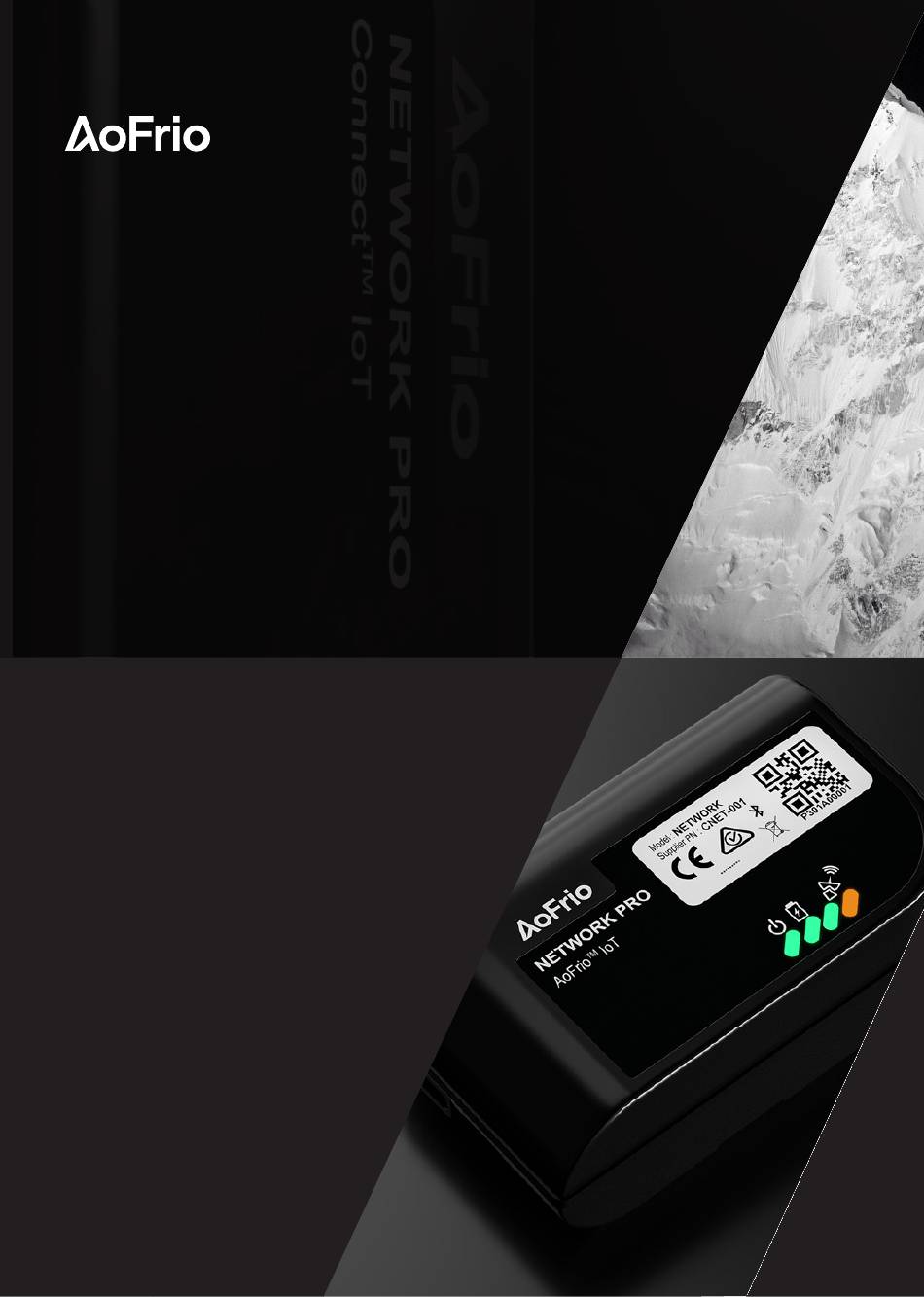

- Page 1 INSTALLATION GUIDE Network Pro Installation Guide Document # WT 9695_i2 Issue date: January 2023 ® is a registered Trademark of AoFrio Ltd. AoFrio Ltd +64 9 477 4500 sales@aofrio.com www.aofrio.com...
- Page 2 Warnings Please read the following warnings to maintain the safe operation and continued performance of the AoFrio Network Pro. Warnings Important do’s and don’ts: Installation • Only authorised staff should install the The Network Pro must be installed in accordance with Network Pro.
- Page 3 The Network Pro is subject to EU Directive 2012/19/ EU (WEEE) for e-waste. It may also be subject to other national legislation for the safe disposal of e-waste. The Network Pro must not be disposed of in municipal collections, it must be disposed of through an approved •...
- Page 4 Wi-Fi positioning is used to help determine the location of the Network Pro, and therefore also the coolers that are within Bluetooth range. WiFi is not used to transfer data i.e. Network Pro is not capable of establishing a WiFi connection.
-
Page 5: What's In The Box
What’s in the box? Planning where to install your Network Pro Network Pro can be installed as a hub to connect up to 16 AoFrio IoT devices in the point-of-sale that are within Bluetooth range. Make the following decisions: 1. Determine the quantity and location of AoFrio IoT devices within the point-of-sale 2. - Page 6 LED purpose and behaviour Network Pro is equipped with 4 LEDs, numbered 1 through 4 from left to right with behaviour as described. NETWORK PRO AoFrio IoT Purpose Behaviour • ON = good input voltage (between 4.6V and 6.4V) LED 1 External power status •...
- Page 7 Network Pro permission to a Role can currently only be performed by AoFrio Support. Note: Network Pro features are available in version 5.24.40 or later of the Field App. Check the Field App version from the menu within the App.
- Page 8 Field App Verification continued Step Details Use the Network Pro Details screen if Troubleshoot necessary to assist with any troubleshooting steps. Items with a highlight a potential problem. In this example 1 cooler is Investigate Check List items detected by the Network Pro but is showing a out of range.
-
Page 9: Mounting Your Device
Once you have connected to the Field app to the Network Pro and confirmed your BLE and Network connections, select a suitable location to mount your Network Pro that has a clear line of sight to your connected refrigeration assets. Mount the device using either the screws or double-sided tape supplied with the product. - Page 10 Mounting continued Screw mount Pull out the screw mounting tabs from the bottom of the device. Mark and drill pilot holes. Using a screwdriver, tighten the two screws to secure the device to the surface.
- Page 11 Mounting continued Tape mount Ensure the mounting surface and the back of the device are clean and dry. Stick the adhesive pad to the back of the device. Firmly press the device into position, ensuring it is secured to the surface.
- Page 12 Mounting continued Power source Network Pro requires external mains power to function (100-240V AC, 50/60Hz). The power cable provided is 2.0 meters (6.5ft) long, and attaches to a 5V USB power adaptor. The device will not be powered on when you receive it. Once plugged in to external power it will immediately activate and also start to charge its internal battery.
- Page 13 4. The device should get registered on the cellular network within a few minutes which is indicated by LEDs. See LED Purpose and Behaviour WARNING: Do not attempt to power Network Pro using the USB-C connector, as it may permanently damage the device. The interface is not a standard USB-C.
-
Page 14: Troubleshooting
Mobile network Contact Technical Support network provider is not available in the area. Move the Network Pro to another Network Pro is in a location with poor location where it has a stronger Mobile network cellular coverage signal reception Network Pro has not been able... -
Page 15: Technical Specifications
Technical Specifications Specifications Input voltage and current 4.5V – 6.4V DC, 300mA max Cellular communications LTE Cat M1 with 2G (GPRS) fallback B1, B2, B3, B4, B5, B8, B12,B13, B18, Cellular bands B19, B20, B25, B28, B39 Connectivity Bluetooth (BLE 4.1) Wi-Fi (Geo-location only) 2.4GHz, 802.11 b/g/n 750mAh, 3.7V, Li-Po (approx. - Page 16 Network Pro Installation Guide WT9695, issue 2, January 2023 www.aofrio.com...
