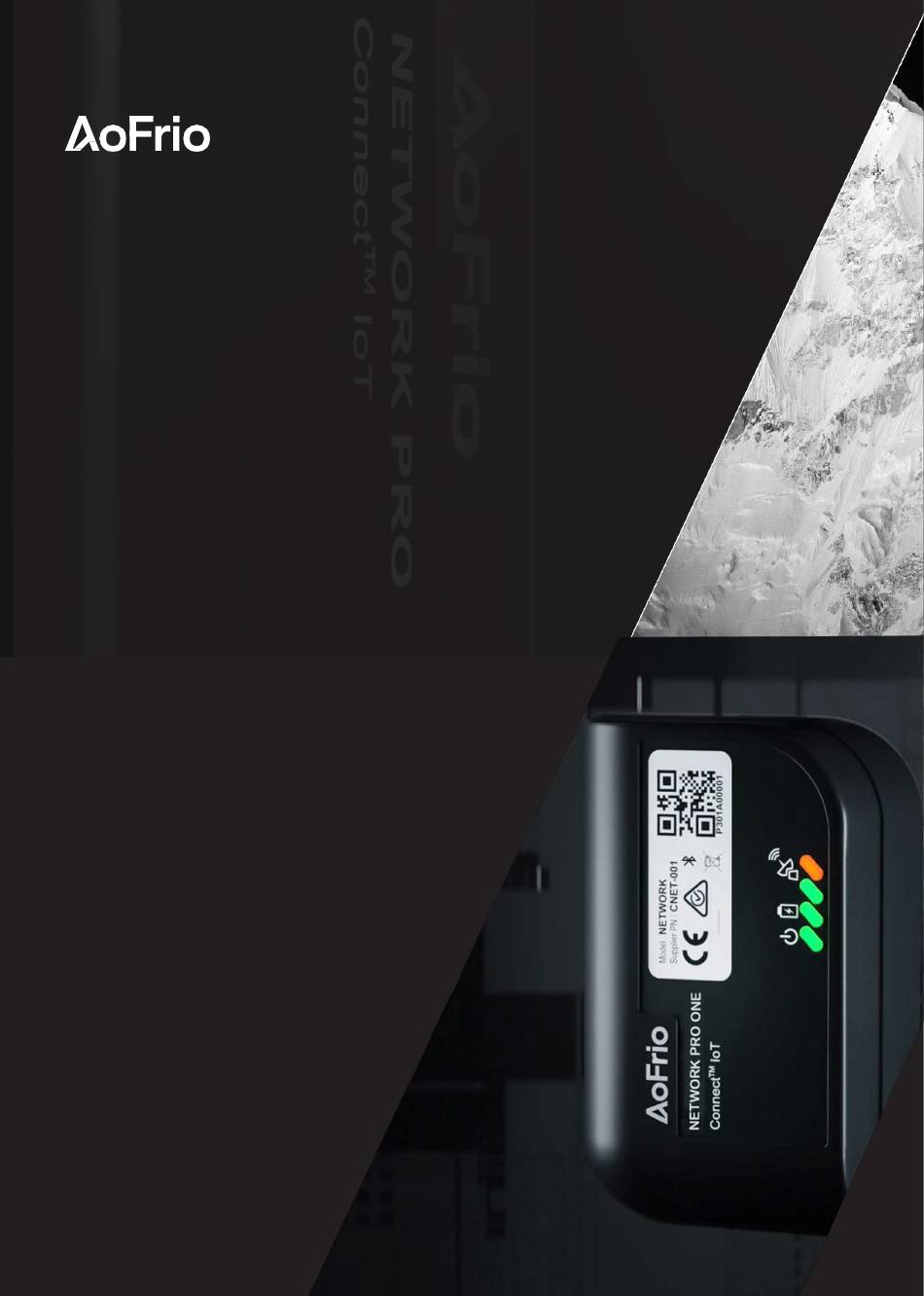

- Page 1 INSTALLATION GUIDE Network Pro ONE New Build Installation Guide Document # WT 9820_i2 Issue date: December 2023 ® is a registered Trademark of AoFrio Ltd. AoFrio Ltd +64 9 477 4500 sales@aofrio.com www.aofrio.com...
-
Page 2: Table Of Contents
Contents Section Pages Warnings Introduction What you need Key steps Plan where to place the Network Pro ONE within the cooler Mount the Network Pro ONE 9-10 Screw mounting • • Tape mounting Connect to the power supply 11-13 •... - Page 3 AoFrio during manufacturing. Connecting anything to this port may damage the product and void the product warranty. No serviceable parts There are no serviceable parts inside the Network Pro ONE. Do • There are no serviceable parts inside the not attempt to open the housing. Opening of the electronics Network Pro ONE.
- Page 4 The Network Pro ONE must not be disposed of in municipal approved e-waste collection point. collections, it must be disposed of through an approved WEEE collection point.
-
Page 5: Introduction
Each device has a rechargeable internal battery that is used for backup if the external power supply is removed. The battery life is approximately 12 hours during which time the Network Pro ONE will continue to operate fully as though still connected to its external power supply. -
Page 6: What You Need
What you need • AoFrio Network Pro ONE • AoFrio AC to DC power supply • Hardware (screws, cable ties, tape etc) to mount the Network Pro ONE and AC/DC power supply... -
Page 7: Key Steps
Key steps These are the key steps when installing a Network Pro ONE in a new build. The order may change depending on the selected pairing option. For more detail see the section Configure Network Pro ONE and pair with the SCS... -
Page 8: Plan Where To Place The Network Pro One Within The Cooler
Identify a suitable AC connection point. The Network Pro ONE should connect to a suitable point of • the AC mains supply within the cooler. Ideally the Network Pro ONE will be no further than 2.5 meters from the AC connection point inside the cooler. -
Page 9: Mount The Network Pro One
Mount the device inside the cabinet. While mounting can vary depending on cooler type, in most situations we recommend that the Network Pro ONE is mounted inside the cabinet, but not in a place where it is fully enclosed by metal. -
Page 10: Screw Mounting
Screw mounting 1. Pull out the screw mounting tabs from the bottom of the device. 2. Mark and drill pilot holes. 3. Using a screwdriver, tighten the two screws to secure the device to the surface. Tape mounting 1. Ensure the mounting surface and the back of the device are clean and dry. 2. -
Page 11: Connect To The Power Supply
The interface is not a standard USB-C. The Network Pro ONE system is supplied with an AC to DC power adaptor which must be connected to a 100-240V AC, 50/60Hz power source. The power adaptor outputs 5V DC via the 3.5mm connector to power the Network Pro ONE device. - Page 12 Make the connection Step 1. Before or after mounting, plug the 3.5mm connector from Network Pro ONE into the supplied cable. 2. Check that the plug is inserted all the way in. 3. Wire the AC side of the power supply to the cooler mains using your preferred connectors.
-
Page 13: Use The Leds To Confirm Operation
Use the LEDs to confirm operation Network Pro ONE is equipped with 4 LEDs, numbered 1 through 4 from left to right with behaviour as described below. When you switch on mains power – you will be able to use these 4 LEDs to test power and cellular connections. Note that this step doesn’t test the connection or association with the other device inside the cooler. -
Page 14: Configure Network Pro One And Pair With The Scs Controller
There are a number of options for OEMs to configure and set up the association with an SCS Controller when installing a Network Pro ONE into a new cooler. Each OEM should review the options and select the one that best suits their... -
Page 15: Qr Code Provides Options For Configuration Timing
QR Code provides options for configuration timing If you mount the Network Pro ONE in a location that isn’t easily accessible for later scanning of its QR code, AoFrio has supplied a duplicate QR code sticker which can be attached to a more accessible location on the outside of the cooler. -
Page 16: Cradle App - Before You Start
Once all the values have been scanned, the association between the SCS Controller and the Network Pro ONE will be sent to AoFrio’s Cloud. The Network Pro ONE is now ready to be installed into the same cooler as the SCS. -
Page 17: Option B: Cradle App - Update Cooler Screen
In some scenarios where the SCS Controller and Network Pro ONE are fitted at different stages on the manufacturing line, or the decision to add a Network Pro ONE to an asset might come at a later stage, the Cradle app - Update Cooler Screen can be used to configure the 1-to-1 pairing between the Network Pro ONE and the SCS Controller. -
Page 18: Option C: Ota Commissioning
For this scenario AoFrio provides a way of configuring the pairing between the SCS Controller and the Network Pro ONE over-the-air. For this process to work the OEM will have to send AoFrio a CSV file with the following information for each cooler. • Bottler •... -
Page 19: Option D: Field App
Network Pro ONE and the SCS Controller. To use Field app, you will need the correct access permissions assigned to your Role by AoFrio's support team in the AoFrio User Manager software. If your Role type does not include Network Pro ONE permissions, you will not have access to this feature. -
Page 20: Configure Network Pro One Using Field App
Configure Network Pro ONE using Field app In this process we are pairing a Network Pro ONE with an SCS Controller already set up inside a bottle cooler. WARNING: Power should not be applied to the Network Pro ONE until step #5. - Page 21 NOTE: To check that the Network Pro ONE is up and running at any stage, see section Test 1-1 pairing with Field app verification. 5. Apply power to the Network Pro ONE if you need to verify that the system is working.
-
Page 22: Configuration Troubleshooting
The Network Pro you are trying to • associate is not a ONE, and therefore cannot be used in a 1- to-1 association. If the device is a Network Pro ONE, contact AoFrio support. Network Pro ONE already belongs to Contact AoFrio support. someone else •... -
Page 23: Test 1-1 Pairing With Field App Verification
Test 1-1 pairing with Field app verification (Optional) Where required the Field app can be used to verify that the Network Pro ONE is working and that the 1-to-1 association with the SCS Controller has been properly configured. However, if this verification step is required then we recommend that... -
Page 24: Verification Troubleshooting
Problem Observed Possible Cause Possible Solution Can’t see Network 1. User role may not have access 1. Make sure the Network Pro ONE is Pro ONE serial to the Network Pro ONE powered. See section Troubleshooting number in the list feature. -
Page 25: Technical Specifications
1m cable Output 5V DC 2.0A, 2m cable • Input 4.5V – 6.4V DC, 300mA max • Network Pro ONE Cellular communications LTE Cat M1 with 2G (GPRS) fallback B1, B2, B3, B4, B5, B8, B12, B13, B18, Cellular bands... - Page 26 Network Pro ONE New Build Installation Guide WT9820, issue 2, December 2023 www.aofrio.com...
