Summary of Contents for Teufel MOTIV HOME

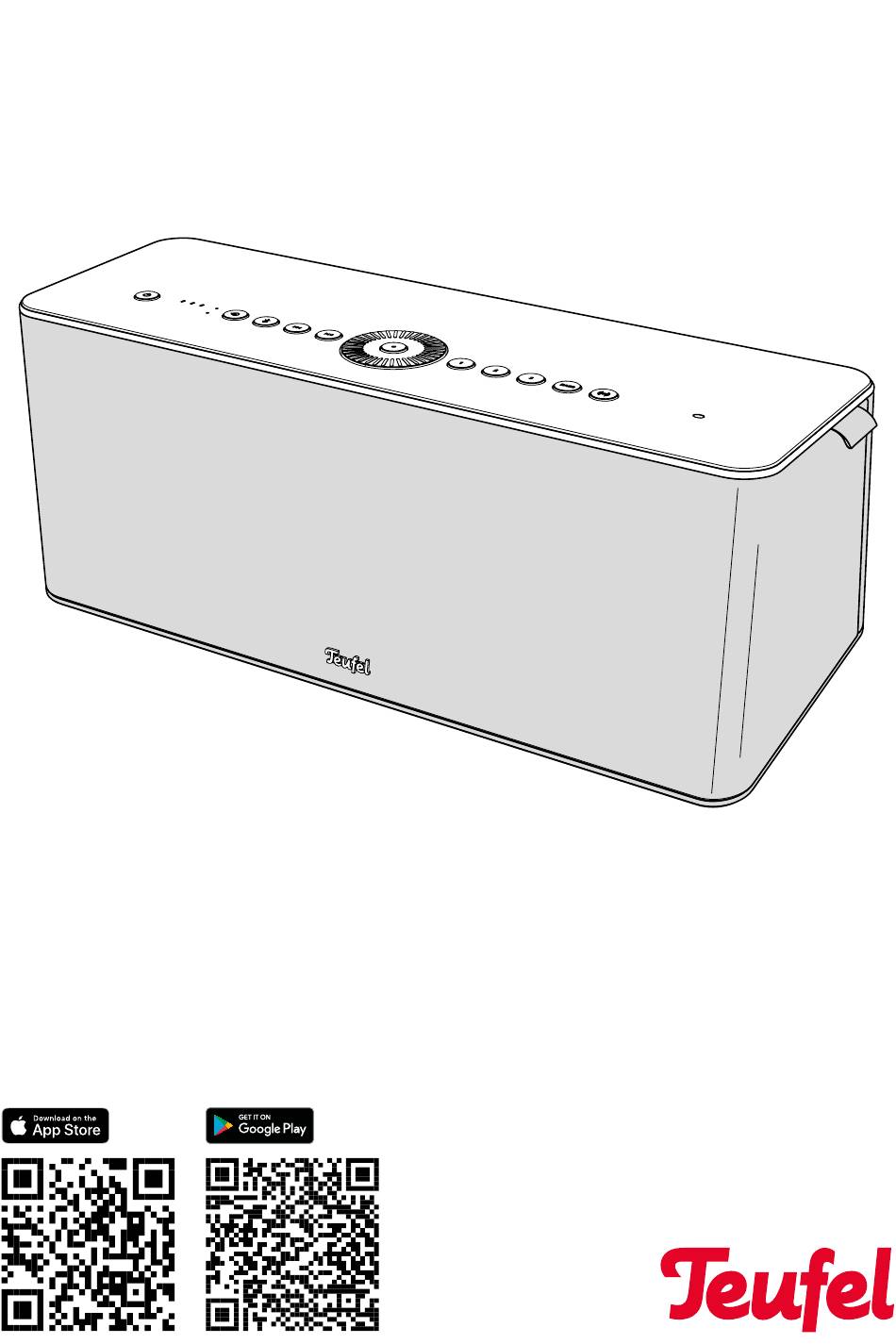

- Page 1 Technical Description and User Manual MOTIV ® MOTIV HOME ® Streaming Loudspeaker...
-
Page 2: Table Of Contents
Selecting presets ......21 Connection .........12 Charging the battery ......22 Loudspeaker setup ........13 Displaying the charge level ... 22 Teufel Home App ........13 Activating power saving mode ..23 Functions of the Using the power bank ....... 24 Teufel Home App ......13 Power bank functions Start Wi-Fi setup mode ...... - Page 3 Playback sources (source) ...... 25 Bluetooth® ......... 25 Pairing devices ......25 Disconnecting the Bluetooth® connection ....25 Deleting the Bluetooth® list ..25 Setting Bluetooth® as source ..25 AUX (analogue) ........26 AUX playback ........ 26 Mute (AUX playback) ....26 Wi-Fi sources ........
-
Page 4: Basic Notes And Information
Android, Google, Google Play, Google Assistant, Chromecast built-in and © Lautsprecher Teufel GmbH corresponding logos are registered Teufel Motiv Home UM EN V1.2 PD trademarks of Google LLC. Apple and AirPlay are trademarks of Apple Inc., registered in the U.S. and other Validity of the user manual countries. -
Page 5: Data Protection And Advertising Declaration
Data protection and Contact advertising declaration If you have any questions, suggestions or criticism, please contact our Service: Lautsprecher Teufel GmbH does not store Lautsprecher Teufel GmbH any personal data and is not involved in BIKINI Berlin any promotional mailings. -
Page 6: Safety
Safety Intended use Explanation of warnings The loudspeaker is used to play back The action-related warnings warn against audio via the Internet or from an external residual dangers and are located in front player via a Wi-Fi, Bluetooth® or wired of a dangerous action step. -
Page 7: Scope Of Supply
Scope of supply Scope of supply (1) MOTIV ® HOME (2) Mains cable ► Check the scope of supply for completeness. ► Check the scope of supply for damage. ► Keep the original packaging during the warranty period. • MOTIV® HOME... -
Page 8: Operating And Display Elements
Operating and display elements Operating and display elements No. LED / sensor Function Automatically controls the brightness of the LEDs. Light sensor Light sensor – p. 24 Displays various statuses, such as the volume and charge level Status LEDs and indicates operations such as the Bluetooth search, etc. - Page 9 Legend (actuation): = Press and hold (4 s) = Press once = Press and hold (8 s) = Press twice = Turn anticlockwise = Press and hold (1.5 s) = Turn clockwise No. Button Function Actuation Switching on and off – p. 15 Activate standby mode –...
-
Page 10: Connections
Connections 1500mA 220~240V~50Hz 90WATTS SETUP RESET AUX IN POWER Connections on the back Legend (actuation): = Press once = Press and hold (1.5 s) No. Name Function Actuation (19) Wi-Fi setup Start Wi-Fi setup mode – p. 14 (20) Reset Resetting to factory settings –... -
Page 11: Status Led Display Scheme
Status LED display scheme Key: Bass level: = LED off Status LEDs Bass level = LED flashing -6 dB = LED lights up dimly -5 dB = LED lights up brightly -4 dB Volume: -3 dB Status LEDs Volume -2 dB -1 dB 1-7 % 0 dB... -
Page 12: Commissioning
Commissioning Setup Connection ATTENTION ATTENTION Material damage due to improper Property damage due to tripping installation! hazard! At very high volumes and bass-driven An awkwardly laid mains cable can music, the loudspeaker may move due to become a tripping hazard and possibly vibration and fall. -
Page 13: Loudspeaker Setup
Loudspeaker setup Teufel Home App Functions of the Teufel Home App The Teufel Home App can be used for the The loudspeaker is set up in the Teufel following functions: Home App. ► Setting up the network. 1. Download the Teufel Home App. -
Page 14: Start Wi-Fi Setup Mode
Start Wi-Fi setup mode ► Press and hold down the Wi-Fi setup button (19) on the back for 1.5 seconds. ☑ The loudspeaker switches to the Wi-Fi setup mode. (The two outermost status LEDs light up.) NOTE Wi-Fi setup mode is deactivated automatically after 15 minutes. -
Page 15: Operation
Operation Switching on and off Auto-Off (only in battery mode) ► Set the Auto-Off timer in the Teufel Home App. Switching on 1. Press the power button (7). 2. Wait (approx. 30 seconds) until the loudspeaker is fully started. ☑... -
Page 16: Standby Mode
NOTE Standby mode is activated. (Only the power button LED lights up.) The Auto-ON function for the AUX input can be set in the Teufel Home App. NOTE Teufel Home App – p. 13 In standby mode, the loudspeaker is inactive but remains connected to the Wi-Fi. -
Page 17: Adjusting The Volume
Adjusting the volume Status LEDs Volume 1-7 % 8-15 % 16-22 % 23-29 % 30-35 % 36-42 % 43-49 % 50-56 % 57-63 % Turn the volume wheel (12) ► anticlockwise. 64-70 % ☑ The volume is reduced. 71-77 % ►... -
Page 18: Playback
Playback Playing the next track ► Press the Next button (11). ► Start the first playback via the ☑ The next track is started. connected external player (e.g. smartphone). Fast forward and rewind ► Press and hold the Previous button (10). ☑... -
Page 19: Switching Dynamore ® On And Off
Switching Dynamore on and ® Dynamore® is a technology developed by Teufel that virtually expands the stereo panorama to create an impressive, wide- ranging sound. ► Press the Dynamore® button (18). ☑ Dynamore® is switched on. (The LED of the button lights up strongly.) -
Page 20: Adjusting The Bass
Adjusting the bass Adjusting the bass level 1. Activate Bass Level mode. 2. Adjust the bass level. ► Turn the volume wheel (12) anticlockwise. ☑ The base level is gradually reduced (up to -6 dB). ► Turn the volume wheel (12) clockwise. -
Page 21: Changing The Source
Changing the source Presets Radio stations, playlists or tracks can be saved and retrieved again quickly using the preset function. NOTE The preset function can only be used with compatible playback sources (Spotify® and TuneIn Radio). ► Press the Source button (8). ☑... -
Page 22: Charging The Battery
Charging the battery Displaying the charge level The seven status LEDs on the front of CAUTION the loudspeaker can indicate the current charge level of the battery. Slight injury and material damage due to improper handling! Batteries can explode if handled improperly and lead to personal injuries and defects of the loudspeaker. -
Page 23: Activating Power Saving Mode
Activating power saving mode Power-saving mode can be activated via the Teufel Home App to help extend the battery life of the loudspeaker. Teufel Home App – p. 13 ... -
Page 24: Using The Power Bank
The external player is being charged. can also be adjusted manually in the Teufel Home App. NOTE Teufel Home App – p. 13 Using the power bank function shortens the operating time of the loudspeaker when it is operated on battery power. -
Page 25: Playback Sources (Source)
A compatible player is connected ► Follow the user manual of the wirelessly to the loudspeaker via external player. Bluetooth®. 4. Select the "Teufel MOTIV HOME” NOTE loudspeaker from the list of Bluetooth® devices. Only use the Bluetooth® function in ☑... -
Page 26: Aux (Analogue)
3.5 mm jack plug. The Auto-ON function for the AUX input ☑ If a signal is present, the loudspeaker can be set in the Teufel Home App via the switches to AUX playback automatic source change feature. automatically. -
Page 27: Wi-Fi Sources
TIDAL Connect TuneIn Radio is integrated directly in the TIDAL is a streaming service for all music Teufel Home and can be used without fans. With TIDAL Connect, you can stream requiring further setup. your favourite music from the TIDAL app Spotify®... -
Page 28: Cleaning And Care
Cleaning and care ATTENTION Material damage due to improper cleaning! The use of unsuitable cleaning agents can lead to the discolouration and destruction of the surface. ► Do not allow moisture to get inside. ► Clean the loudspeaker only with a dry, soft cloth. -
Page 29: Troubleshooting
(e.g. smartphone). The loudspeaker is ► Connect the loudspeaker to the not connected to the external player. external player. Teufel Home App – p. 13 Bluetooth® – p. 25 AUX (analogue) – p. 26 The loudspeaker is not ►... -
Page 30: Perform A Hardware Reset
Perform a hardware reset Resetting to factory settings NOTE NOTE Only perform a hardware reset if the All user settings and data are deleted and loudspeaker does not respond. reset to the factory settings. ► Before a hardware reset, check whether ■... -
Page 31: Technical Data
5 Minutes Power consumption < 2 W Hereby, Lautsprecher Teufel GmbH declares that the radio equipment type MOTIV® HOME is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.teufel.de/konformitaetserklaerungen... - Page 32 10787 Berlin (Germany) Online support: www.teufelaudio.com/service www.teufel.de/service www.teufelaudio.com www.teufel.de Contact form: www.teufel.ch www.teufel.de/kontakt www.teufelaudio.at www.teufelaudio.nl Contact: www.teufelaudio.be www.teufelaudio.com/contact www.teufelaudio.fr www.teufelaudio.pl All data without guarantee. www.teufelaudio.it Subject to technical changes. www.teufelaudio.es Typographical and other errors excepted. Teufel Motiv Home UM EN V1.2 PD...
