SHARP
SERVICE MANUAL
CODE:
00ZEL5100SSME

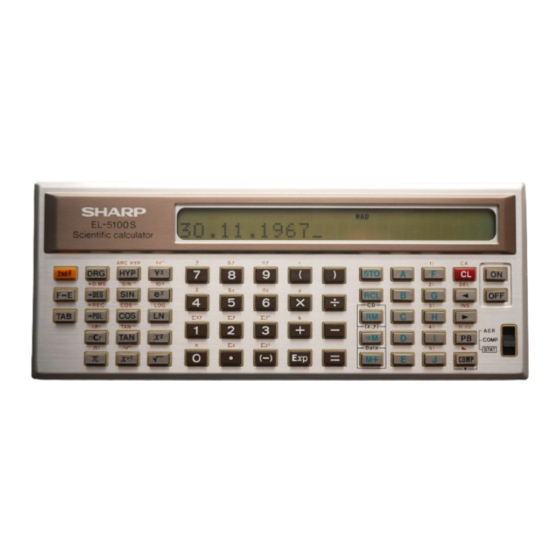

MODEL EL-5100S
As for the EL5100S is changed top and bottom
cabinet of EL5100
Next page (Parts List) are
the
only
differences
between
EL5100
and
EL5100S,
therefor
others are to be referred
the parts list & guide of EL5100.
And circuit
estes esses TT
os
diagram, parts & singals position are same as
a
EL5100.
eeeeoe
OF
e2e80
ELEMENT: otal disolay
PARTS NAME: LF8034XE
NUMERAL:
10 +2 digits | SYMBOL:
digit(s)
5.05
1
Name:
SC43125, SC43153
Type : Flat package
POWER SUPPLY
@BATTERY
TYPE
Alkaline manganese battery (LR 44) x 3 pes.
or Silver oxide battery (S15 or SR44) x 3 pcs.
@ OPERATION
TIME
LR44: Approx. 300H, $15 or $44: Approx.1000H
KEY SYSTEM:
Rubber key
KEY LAYOUT
~ar
|ZO-—-AOMYM
<prwum-o
SATTERY
POWER
DIMENSION(mm);
175 (W)
70(D}) 9.3(H)
CALCULATIONS
Four arithmetic calculations, trigonometric and inverse trigonometic functions, hyperbolic and liverse hyperbolic
functions, angular conversion, reciprocal, square and cube root, square and power, logarithmic and exponential,
Xth root of Y(x/ y), factorial, permutation, combination, coordinate conversion, memory, and statistical calcula-
tions.
@
General calculation capacity;
80 steps
®
Algebraic expression reserve;
Capacity:
80 steps (AER mode)
Functions:
Cursor step-up, step-dwon, insertion, deletion, playback.
®
Number of internal calculation digits;
Mantissa 12 digits, Exponent 2 digits
®
Display capacity;
24 digits (algebraic operation system)
(numeral ... mantissa 10 digts, exponents 2 digits)
SHARP CORPORATION
